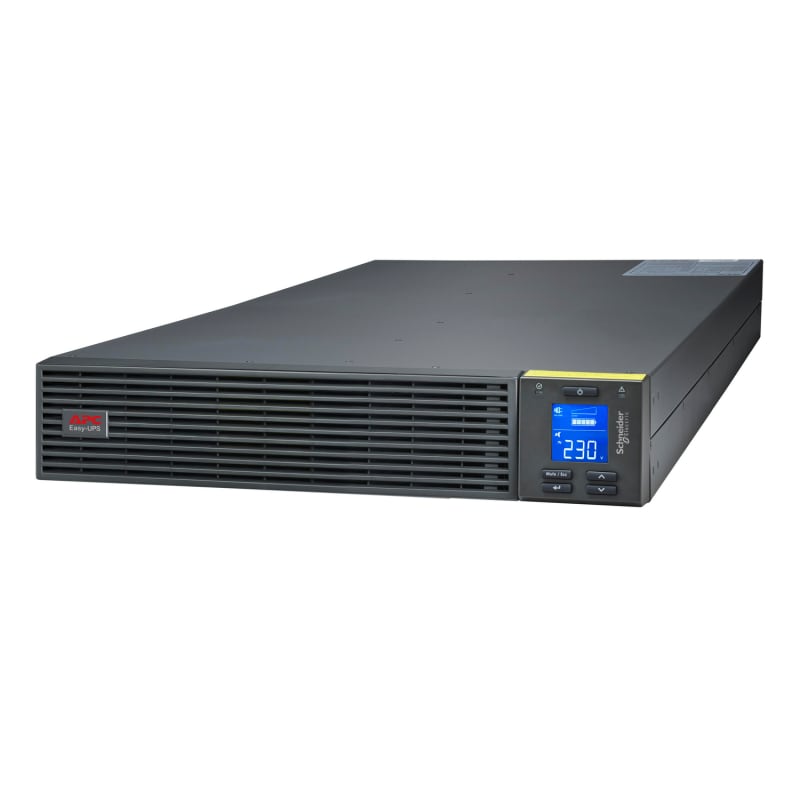

APC Easy UPS SRV RM 6000VA 230 (SRVPM6KRI)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRVPM6KRI APC Easy UPS On-Line, 6kVA, Rack, 230V, fast 3-led.outlet, smartkortplass, LCD, without batt, u/ rail set.
Technical Specifications
- Manufacturer part number (MPN)
- SRVPM6KRI
- EAN / GTIN
- 0731304343462
- Sales unit
- pcs
- Presentation
- High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Efficiency at full load
- 110...300 V 60 % load; 176...300 V full load
- Input connection
- 1 hard wire 3-wire
- Input frequency
- 40...70 Hz auto sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 6000 W
- Rated power in VA
- 6000 VA
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Maximum configurable power in VA
- 6000 VA
- Maximum configurable power in W
- 6000 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Battery type
- Lead-acid external sold separately
- Control panel
- Multifunction LCD status and control console
- Emergency power off
- Yes
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- Serial port; USB port; Available expansion slot
- Surge energy rating
- 600 J
- Number of rack unit
- 2U
- Color
- Black (RAL 7010)
- Height
- 86.5 mm
- Width
- 438 mm
- Depth
- 615 mm
- Product weight
- 14 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted with kit
- USB compatible
- No
- Mounting position
- Horizontal
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Easy UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; UKCA; EAC; TISI
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Storage altitude
- 0…15000 m
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 55 dBA
- Operating altitude
- 0...3000 m
- Battery voltage
- 192 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 24 cm
- Package 1 Width
- 60 cm
- Package 1 Length
- 76 cm
- Package 1 Weight
- 18 kg
- Country of origin
- CN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304343462
- SAP 1200960923
- Code 84257159
