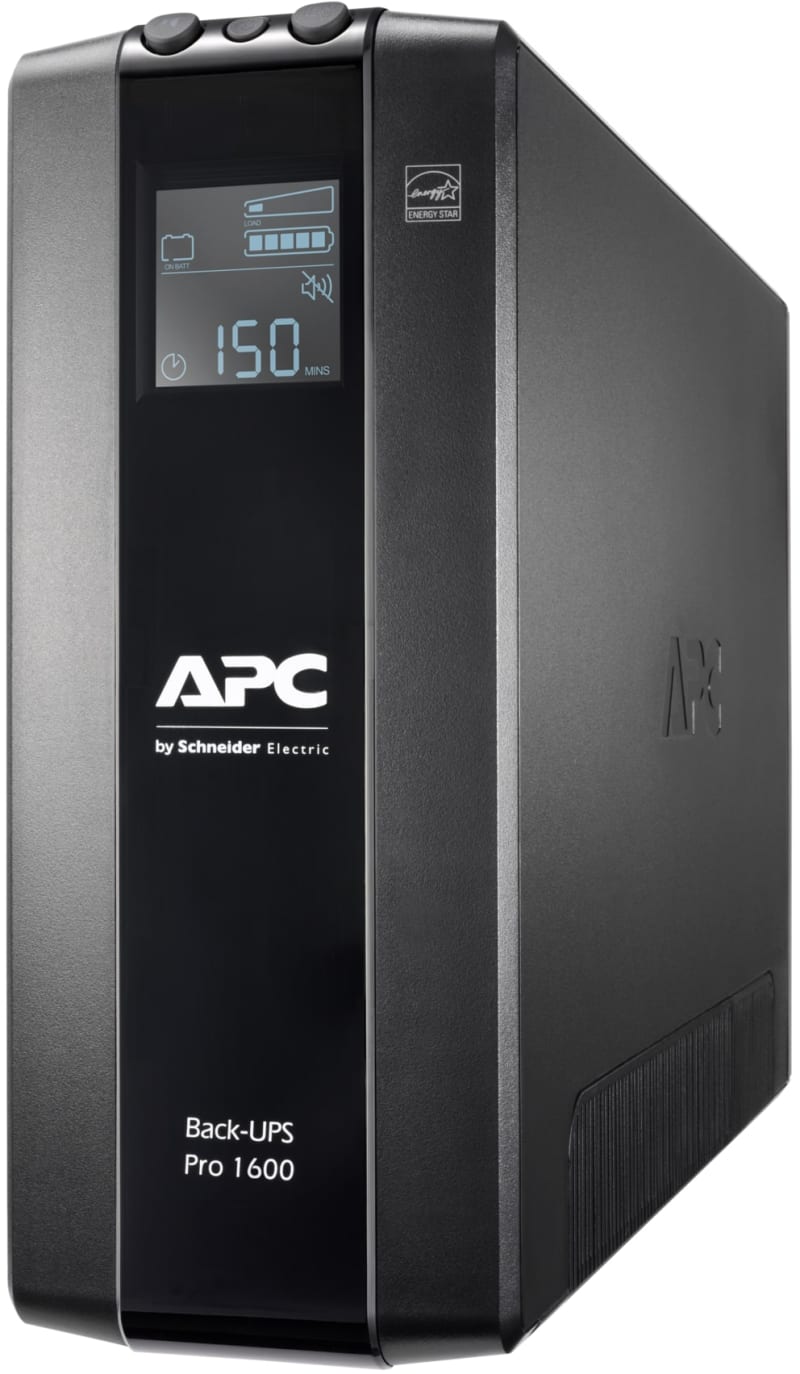

Schneider Electric APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8X IEC C13 outlets, AVR, LCD, User Replaceable Battery BR1600MI
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BR1600MI APC Back-UPS Pro, 1600VA/960W, tower, 230V, 8x IEC C13 outputs, AVR.
Technical Specifications
- Manufacturer part number (MPN)
- BR1600MI
- EAN / GTIN
- 0731304346913
- Sales unit
- pcs
- Main input voltage
- 230 V AC 1 phase
- Input connection
- IEC 60320 C14
- Maximum input current
- 10 A
- Switching current capacity
- 10 A
- Efficiency at full load
- 176...294 V
- Input frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Rated power in W
- 960 W
- Rated power in VA
- 1600 VA
- Output connection
- 6 IEC 60320 C13; 2 IEC 60320 C13 surge
- Type of USB power supply
- None
- Maximum configurable power in VA
- 1600 VA
- Maximum configurable power in W
- 960 W
- UPS topology
- Line interactive
- Output frequency
- 50/60 Hz +/- 1 Hz sync to mains
- Replacement battery
- APCRBC166
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery capacity
- 9.0 Ah
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- USB port
- Surge energy rating
- 509 J
- Noise filtering
- Full time multi-pole noise filtering : 10% of IEEE surge light-through : zero clamping response time: instantaneous
- Color
- Black
- Height
- 250 mm
- Width
- 100 mm
- Depth
- 382 mm
- Product weight
- 10.9 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- Yes
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Back-UPS Pro
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- A-Tick; C-Tick; CE; EAC; RCM; TISI
- Marking
- GS Mark
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 45 dBA
- Heat dissipation
- 21.5 Btu/h
- Operating altitude
- 0...10000 ft
- Battery voltage
- 24 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 16 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 11 W rated
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 33 cm
- Package 1 Width
- 22.5 cm
- Package 1 Length
- 48.5 cm
- Package 1 Weight
- 11.65 kg
- SCC14
- 10731304346910
- Country of origin
- VN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304346913
- SAP 1200351299
- Code 82356227
Product Documentation
