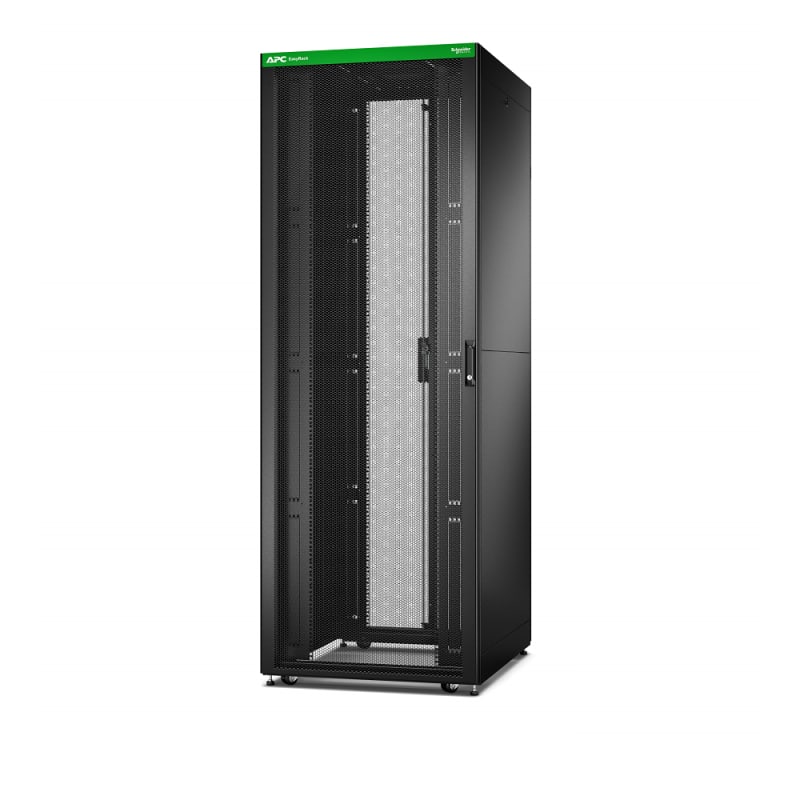

Schneider Electric APC Easy Rack, 48U, Black, with Roof, Castors, Feet, 4 Brackets, and Side Panels, No Bottom, 2258H x 800W x 1000D mm ER8802

Schneider Electric ER8802 Easy Rack 48U B:800mm D:1000mm H:2258mm with wheel,feet, lock, 4 brackets and side panel,without bottom. Black.

Manufacturer part number (MPN)

ER8802 EAN / GTIN: 0731304427957 Sales unit: pcs Dimensions: 800×1000×2258 Rack units: 48 U Product or component type: Rack enclosure Number of rack unit: 48U Provided equipment: Baying hardware; Key(s); Keyed-alike doors and side panels; Leveling feet; Mounting hardware; Pre-installed casters; Side panels Height: 2258 mm Width: 800 mm Depth: 1000 mm Product weight: 140.4 kg Colour: Black mounting mode: Not rack-mountable Maximum mounting depth: 838.2 mm minimum mounting depth: 241.6 mm Rack width: 19" Marking: 18 gauge front door; 19 gauge rear door; 16 gauge post; 14 gauge EIA mounting rail Permanent permissible load: 1199.8 kg static; 599.6 kg dynamic Standards: UL 2416; UL 60950-1; EIA-310E Number of Units in Package 1: 1 Pallet layers: 1 Country of origin: CN Warranty (in months): 60 Mounting level: None Model: With permanent frame Type of profile rail: None Number of doors: 2 Type of ventilation: Passive Number of height units: 48 Max. load capacity: 1200 kg With roof plate: Yes With earthing: Yes With front door: Yes With sidewall: Yes Demountable: No material: Steel Surface finishing: Powder coating RAL-number: 9005 Degree of protection (IP): IP20

HS Code

9403.20

• EAN 0731304427957
• SAP 1200510177
• Code 82677543
