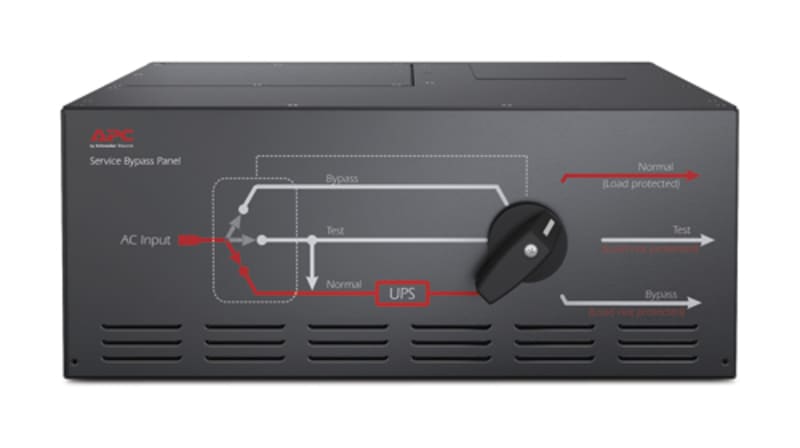

Schneider Electric APC Service Bypass Panel, 230V, 125A, 2X hardwire input connectors, 8X IEC 60320 C19 outlets SBP20KRMI4U
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SBP20KRMI4U APC Service Bypass Panel 230V MBB 125A H.
Technical Specifications
- Manufacturer part number (MPN)
- SBP20KRMI4U
- EAN / GTIN
- 0731304266969
- Sales unit
- pcs
- Voltage
- 230 V
- Rated current
- 125 A
- Main Input Voltage
- 220 V; 230 V; 240 V; 380 V 3 phases; 400 V 3 phases; 415 V 3 phases
- Product or component type
- Bypass kit
- Main Output Voltage
- 230 V
- Other Output Voltage
- 220 V; 240 V
- Number of rack unit
- 4U
- Number of cables
- 1
- Provided equipment
- Installation guide; Rack mounting brackets; User manual
- Range of product
- Smart-UPS Accessories
- Colour
- Black
- Height
- 178 mm
- Width
- 432 mm
- Depth
- 572 mm
- Product weight
- 18.78 kg
- Mounting location
- Front
- Mounting preference
- Lower
- mounting mode
- Rack-mounted
- Network frequency
- 50/60 Hz
- Number of input connectors
- 1 hard wire 3-wire (1P + N + E); 1 hard wire 5 wire (3P + N + E)
- Max line current
- 125 A
- Input current limits
- 125 A
- Load capacity
- 20000 VA
- Power factor
- 0…1
- Max current draw
- 125 A
- Number of power socket outlets
- 8 IEC 60320 C19
- Protection type
- Circuit breaker
- Efficiency
- 99 %
- Product certifications
- CSA; GOST
- Ambient air temperature for operation
- -20…50 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...15000 ft
- Ambient air temperature for storage
- -40…65 °C
- Storage Relative Humidity
- 0…95 %
- Storage altitude
- 0…15240 m
- Number of Units in Package 1
- 1
- Country of origin
- CN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304266969
- SAP 1200723265
- Code 83845756
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric multisound siren XVS - 43 tones - 0..105 dB - white - IP53 XVS14GMW
Schneider Electric
Schneider Electric residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40, 1P+N, 32 A, C Curve, 6000 A, 30 mA, A type A9DC3632
Schneider Electric
Label Holder for Engraving 18x72 mm G/P
LVS08916
Schneider Electric
Schneider Electric Electronic overcurrent relay, TeSys LR97D, 200 to 240VAC, 20 to 38A, 1C/O LR97D38M7
Schneider Electric
Schneider Electric current transformer tropicalised DIN mount 150 5 cables d. 27 - bars 10X32 15X25 METSECT5MA015
Schneider Electric
Schneider Electric Push button flush mounted, Harmony XB4, metal, black, 30mm, spring return, unmarked, 1NO XB4FA21
Schneider Electric
Schneider Electric OptiLine 45 - external corner - PC/ABS - aluminium metallic ISM10352
Schneider Electric

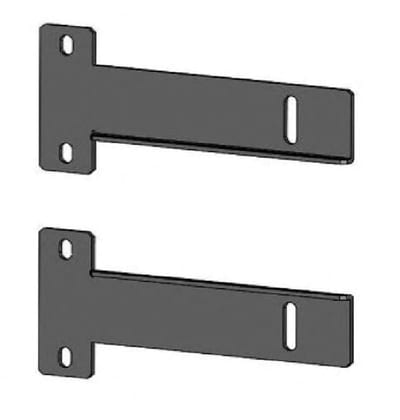

Schneider Electric Easy Rack Post Bottom Bracket 3-4 ft Inside, Pair
