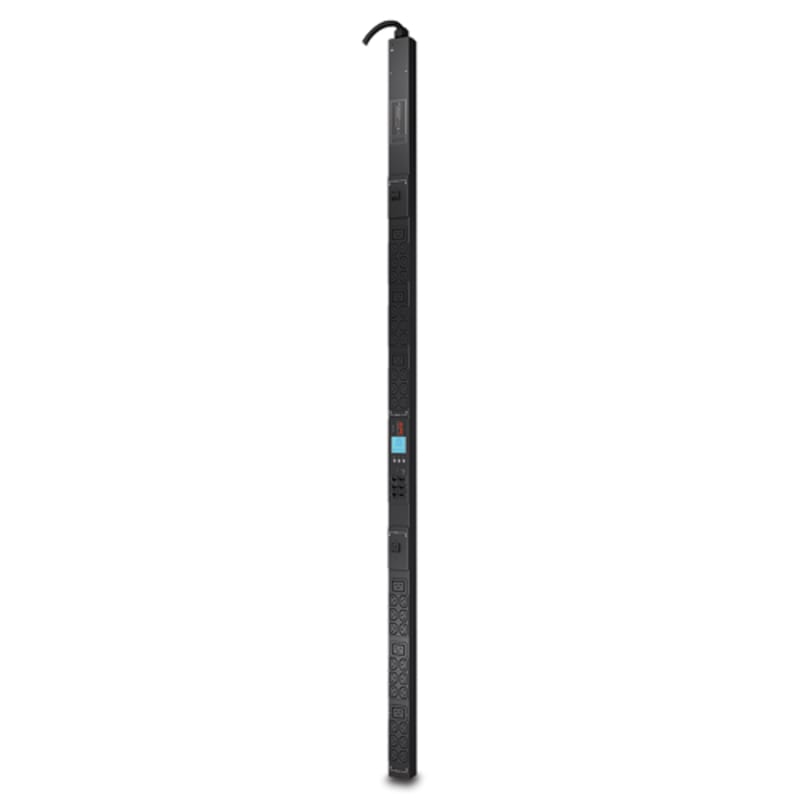

Schneider Electric APC NetShelter Metered Rack PDU, 0U, 1PH, 7.4kW 230V 32A, 36 C13 and 6 C19 outlets, IEC 309 2P+E cord AP8853

Schneider Electric AP8853 Rack PDU 2G, Metered, ZeroU, 32A, 230V,.

Manufacturer part number (MPN)

AP8853

EAN / GTIN

0731304277019

Sales unit

pcs

Voltage

230 V

Rated current

32 A

Presentation

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower the total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra-low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Colour

Black

Product or component type

PDU

PDU type

Metered

Cord length

2.9 m

Number of cables

1

Provided equipment

Installation guide; Rack mounting brackets; Serial configuration cable; Safety guide

Input Voltage

200 V; 208 V; 230 V

Height

1791 mm

Width

56 mm

Output Voltage

230 V

Depth

44 mm

Product weight

6.93 kg

Mounting location

Side

Mounting preference

No preference

Input Plug Type

IEC 60309 32 A 2P + E

mounting mode

Rack-mounted

Rack units

0U

USB compatible

No

Mounting position

Vertical

permissible voltage

220…240 V

Max line current

32 A

Input current limits

32 A

Load capacity

7400 VA

Network frequency

50/60 Hz

Outlet type and quantity

36 IEC 60320 C13 ; 6 IEC 60320 C19

Product certifications

VDE

Standards

IEC 60950

Ambient air temperature for operation

-5…60 °C

Relative humidity

5…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0…15240 m

Number of Units in Package 1

1

Number of Units in Package 2

10

Country of origin

IN

Warranty (in months)

24

Nominal current

32 A

Mounting direction

Vertical

Electrical connection

Connection cable with plug

Cable length

3 m

Number of C13 socket outlets

36

Number of C19 socket outlets

6

Length

44 mm

Supply voltage

230 V

Overvoltage category

1

Interface ethernet

Yes

HS Code

8537.10
