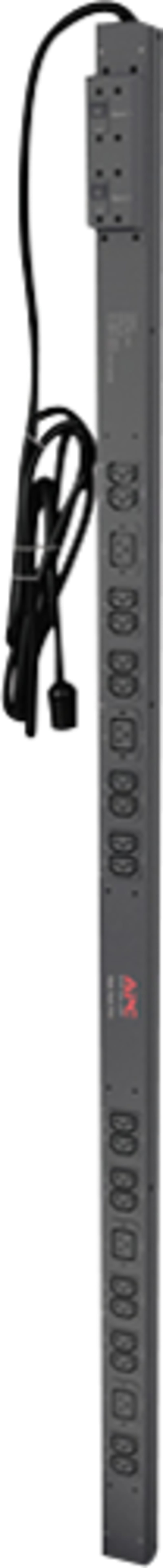

Schneider Electric Rack PDU,Basic, Zero U, 16A, 230V, (20) C13 & (4) C19, IEC C20 AP7552
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP7552 Spare parts / accessories.
Technical Specifications
- Manufacturer part number (MPN)
- AP7552
- EAN / GTIN
- 0731304207900
- Sales unit
- pcs
- Package quantity
- 42 pcs
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Basic
- Cord length
- 3 m
- Number of cables
- 1
- Provided equipment
- Installation guide; Rack mounting brackets; Toolless mounting kit
- Input Voltage
- 200 V; 208 V; 230 V
- Height
- 1619 mm
- Width
- 56 mm
- Output Voltage
- 230 V
- Depth
- 44 mm
- Product weight
- 4.86 kg
- Mounting location
- Side
- Mounting preference
- No preference
- Input Plug Type
- IEC 60320 C20
- mounting mode
- Rack-mounted
- Rack units
- 0U
- Mounting position
- Vertical
- Input current limits
- 16 A
- Load capacity
- 3680 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 20 IEC 60320 C13 ; 4 IEC 60320 C19
- Product certifications
- CE; GOST; IRAM; VDE
- Ambient air temperature for operation
- 0…45 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Number of Units in Package 1
- 1
- Country of origin
- IN
- Warranty (in months)
- 24
- Nominal current
- 16 A
- Mounting direction
- Vertical
- Electrical connection
- Connection cable with plug
- Cable length
- 3 m
- Number of C13 socket outlets
- 20
- Number of C19 socket outlets
- 4
- Length
- 44 mm
- Supply voltage
- 230 V
- Overvoltage category
- 1
- Interface ethernet
- No
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 0731304207900
- SAP 1000455544
- Code 8795242
Product Documentation
