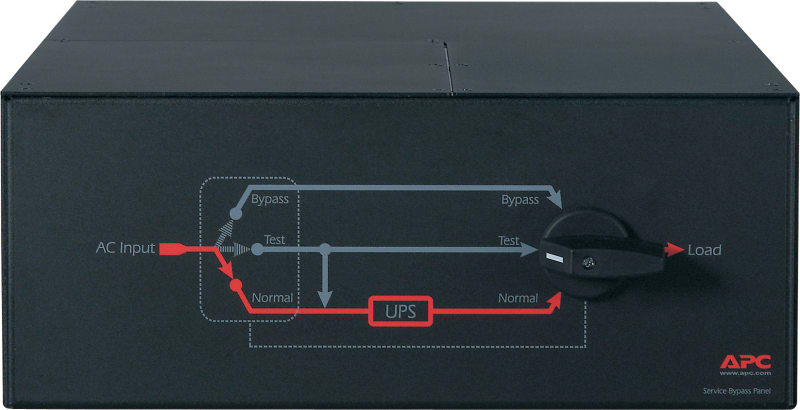

Schneider Electric APC Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input/output SBP16KP

Schneider Electric SBP16KP APC/Easy bypasspanel - 100A, 230V/400V, 4U, in: 1P+N+J/3P+N+J, out: 1P+N+J/splitt 1P+1P+J only 1-P out.

Manufacturer part number (MPN)

SBP16KP

EAN / GTIN

0731304212645

Sales unit

pcs

Package quantity

8 pcs

Voltage

230 V

Rated current

100 A

Main Input Voltage

200 V; 208 V; 230 V; 480 V 3 phases

Product or component type

Bypass kit

Main Output Voltage

120 V; 200 V; 208 V; 230 V

Other Output Voltage

220 V; 240 V

Output connector type

Hard wire 3-wire (H N + E) for 1 zone(s); Hard wire 3-wire (2P + E) for 1 zone(s); Hard wire 4-wire (2P + N + E) for 1 zone(s)

Number of rack unit

4U

Number of cables

1

Provided equipment

Installation guide; Rack mounting brackets; User manual

Range of product

Maintenance Bypass Panels

Colour

Black

Height

178 mm

Width

432 mm

Depth

660 mm

Product weight

21.36 kg

Mounting location

Front

Mounting preference

Lower

mounting mode

Rack-mounted

Network frequency

50/60 Hz

Number of input connectors

1 hard wire 3-wire (H N + E); 1 hard wire 3-wire (2P + E); 1 hard wire 4-wire (2P + N + E); 1 hard wire 5-wire (3P + N + E)

permissible voltage

200…240 V

Max line current

100 A

Input current limits

100 A

Load capacity

20000 VA

Power factor

0…1

Max current draw

100 A

Protection type

Circuit breaker

Efficiency

99 %

Product certifications

CSA; GOST

Standards

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

-20…50 °C

Relative humidity

0…95 %

Operating altitude

0...15000 ft

Ambient air temperature for storage

-40…65 °C

Storage Relative Humidity

0…95 %

Storage altitude

0…15240 m

Country of origin

CN

Warranty (in months)

24

HS Code

8504.40
