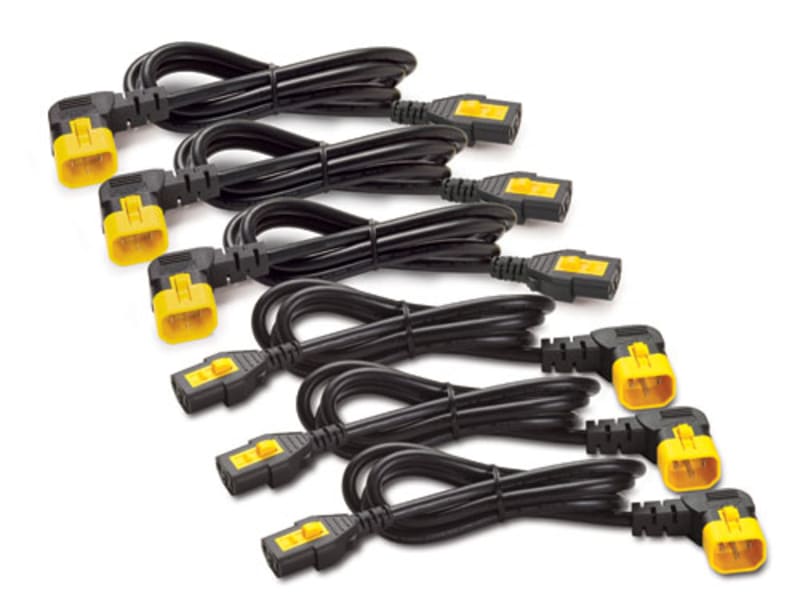

Schneider Electric Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.2M AP8704R-WW

Schneider Electric AP8704R-WW APC by Schneider Electric.

Manufacturer part number (MPN)

AP8704R-WW

EAN / GTIN

0731304296461

HS code

8544.42

Sales unit

pcs

Presentation

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Product or component type

Power cord

Input Connection Type

IEC 60320 C14

Cable length

1.21 m

Number of cables

6

Provided equipment

3 left-angle jumper cords; 3 right-angle jumper cords

Colour

Black

Height

240 mm

Width

70 mm

Depth

45 mm

Product weight

1.01 kg

Mounting preference

No preference

mounting mode

Not rack-mountable

Max line current

10 A

Input current limits

10 A

Max current draw

10 A

Number of power socket outlets

1 IEC 60320 C13

Power cable length

1.2 m

Product certifications

CCC; PSE; VDE

Ambient air temperature for operation

0…70 °C

Relative humidity

20…80 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…75 °C

Storage Relative Humidity

20…80 %

Storage altitude

0…15240 m

Number of Units in Package 1

1

Country of origin

US

Warranty (in months)

24

HS Code

8544.42
