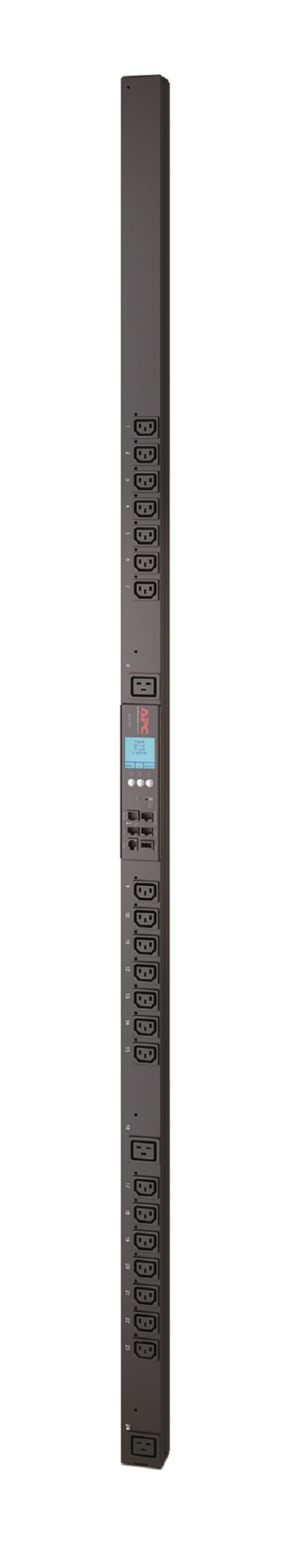

Schneider Electric Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A/208V, 16A/230V, (21) C13 & (3) C19 AP8659
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP8659 APC by Schneider Electric.
Technical Specifications
- Manufacturer part number (MPN)
- AP8659
- EAN / GTIN
- 0731304299509
- HS code
- 8536.90
- Sales unit
- pcs
- Presentation
- APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Switched metered outlet
- Provided equipment
- CAN port terminator; Installation guide; Rack mounting brackets; Safety guide; Serial configuration cable
- Input Voltage
- 200 V; 208 V; 230 V
- Height
- 1829 mm
- Width
- 56 mm
- Output Voltage
- 100 V; 200 V; 208 V; 230 V
- Depth
- 51 mm
- Product weight
- 6.09 kg
- Mounting location
- Side
- Mounting preference
- No preference
- Input Plug Type
- IEC 60320 C20
- mounting mode
- Rack-mounted
- Rack units
- 0U
- Mounting position
- Vertical
- [In] rated current
- 16 A
- permissible voltage
- 100…240 V
- Input current limits
- 20 A
- Load capacity
- 3300 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 21 IEC 60320 C13 ; 3 IEC 60320 C19
- Product certifications
- PSE; UL listed; VCCI class A; VDE
- Standards
- EN 55022 class A; EN 55024; EN 61000-3-2; EN 61000-3-3; FCC part 15 class A; ICES-003
- Ambient air temperature for operation
- -5…60 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Number of Units in Package 1
- 1
- Country of origin
- IN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0731304299509
- SAP 1200723115
- Code 83853064
Product Documentation
