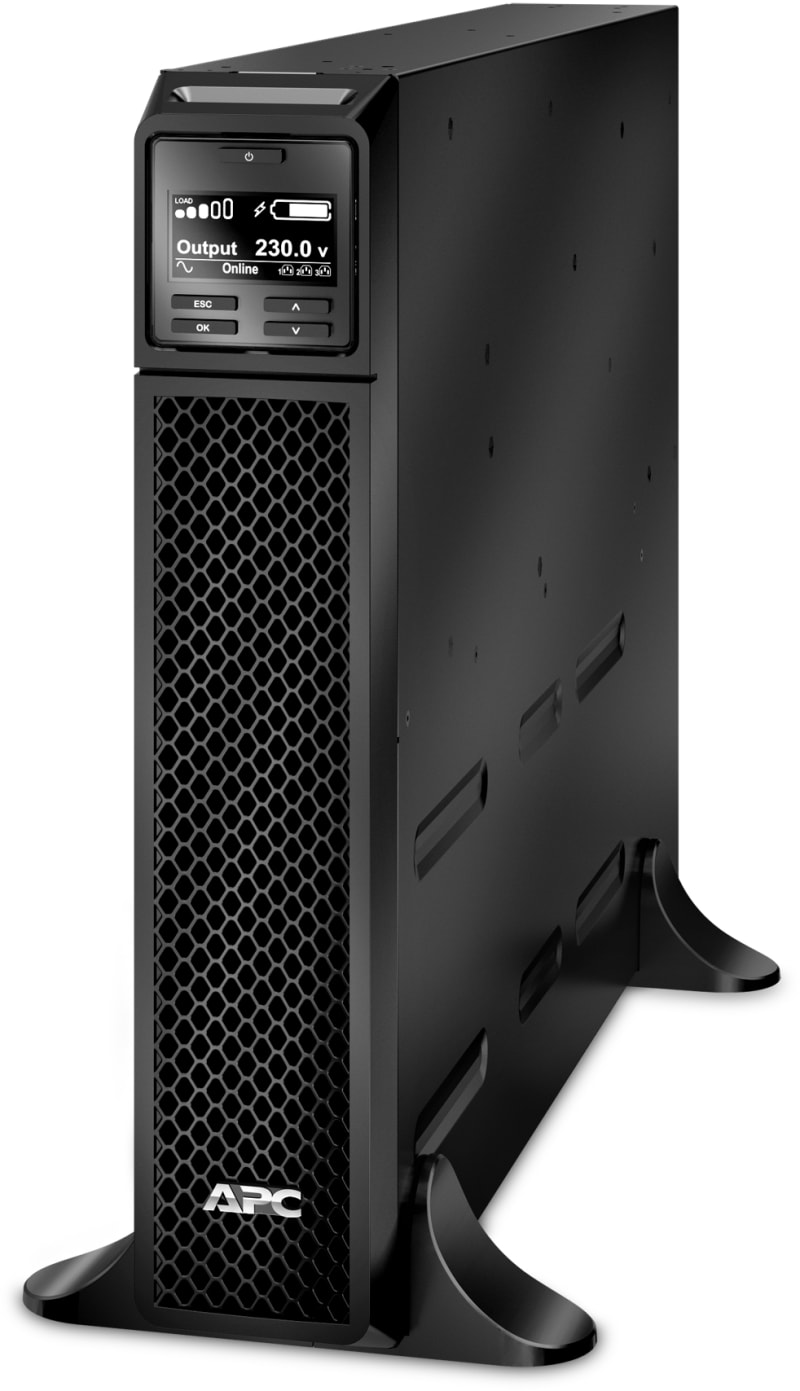

Schneider Electric APC Smart-UPS On-Line, 3KVA, Tower, 230V, 8X C13+2X C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit SRT3000XLI
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRT3000XLI APC -UPS SRT 3kVA, Tower, 230V, out: 8x C13 2x C19, expandable.
Technical Specifications
- Manufacturer part number (MPN)
- SRT3000XLI
- EAN / GTIN
- 0731304317678
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- High density, double-conversion on-line power protection with scalable runtime.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Input connection
- IEC 60320 C20; CEE 7/7
- Efficiency at full load
- 100...275 V adjustable (half load)
- Input frequency
- 40...70 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 2700 W
- Rated power in VA
- 3000 VA
- Output connection
- 8 IEC 60320; 2 IEC Jumpers; 2 IEC 60320
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 2 %
- Maximum configurable power in VA
- 3000 VA
- Maximum configurable power in W
- 2700 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC152
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid internal included
- Emergency power off
- Yes
- Free slot
- 1
- Alarm
- Audible and visible alarms : prioritized by severity
- UPS connectivity
- Serial port; USB port
- Surge energy rating
- 340 J
- Cable length
- 2.4 m
- Number of cables
- 3
- Color
- Black
- Height
- 432 mm
- Width
- 85 mm
- Depth
- 635 mm
- Product weight
- 31.3 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Tower
- Two post mountable
- 0
- USB compatible
- Yes
- Mounting position
- Vertical
- Provided equipment
- CD with software; Country-specific detachable power cord; Documentation CD; Installation guide; Removable support feet; USB cable; Warranty card
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Additional specification
- High density
- Redundant
- No
- Range of product
- Smart-UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; RCM; VDE; UK PSTI
- Marking
- CE Mark
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 55 dBA
- Heat dissipation
- 703 Btu/h
- Operating altitude
- 0...10000 ft
- Battery voltage
- 96 V
- Extendable runtime
- 1
- Typical recharge time
- 3 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 168 W rated
- Number of Units in Package 1
- 1
- Country of origin
- PH
- Warranty (in months)
- 24 Battery|36 UPS
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304317678
- SAP 1000724636
- Code 8345795
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Safety terminals section 1X16MM² . Supply : 20 NSYS16
Schneider Electric
Schneider Electric variable speed drive, Altivar Process ATV900, ATV930, 45kW, 60hp, 500 to 690V, IP00 ATV930D45Y6
Schneider Electric
Schneider Electric Harmony, Interface plug-in relay pre-assembled, 5 A, 2 CO, with LED, with protection circuit, 230 V AC RXG23P7PV
Schneider Electric
Schneider Electric wireless and battery less handy box, 2 double action buttons ZBRM22B0
Schneider Electric

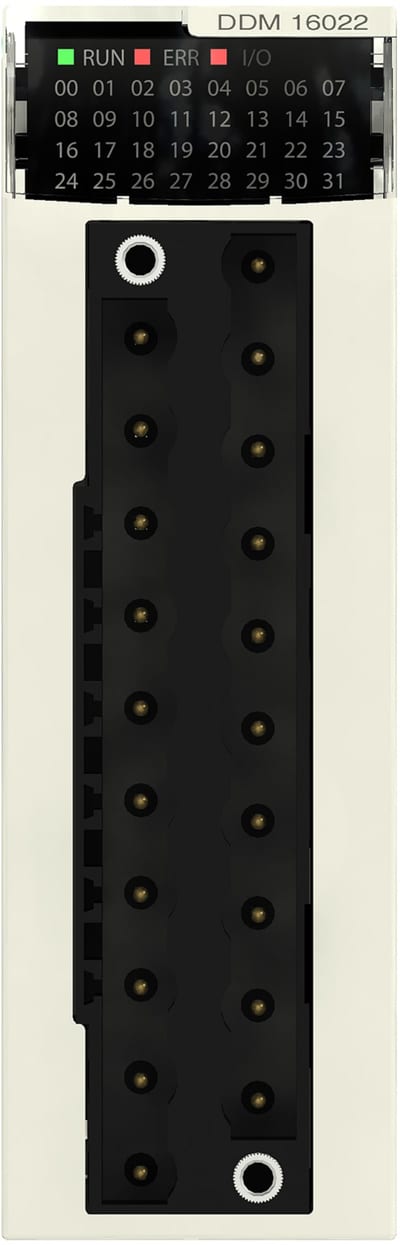

Schneider Electric discrete I/O module X80 - 8 inputs - 24 V DC - 8 outputs - solid state BMXDDM16022
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63N, 50KA/415VAC, 4 poles, MicroLogic 4.1 trip unit 50A, lugs/busbars C11N44V050B
Schneider Electric

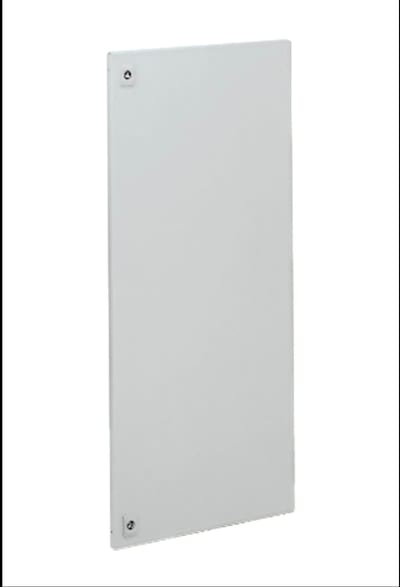

Internal door 7035 1250X500 PLA
NSYPAPLA125G
Schneider Electric

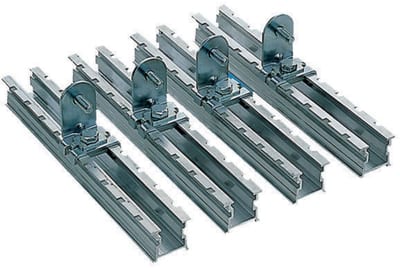

Dybdejust f 420H PLA
