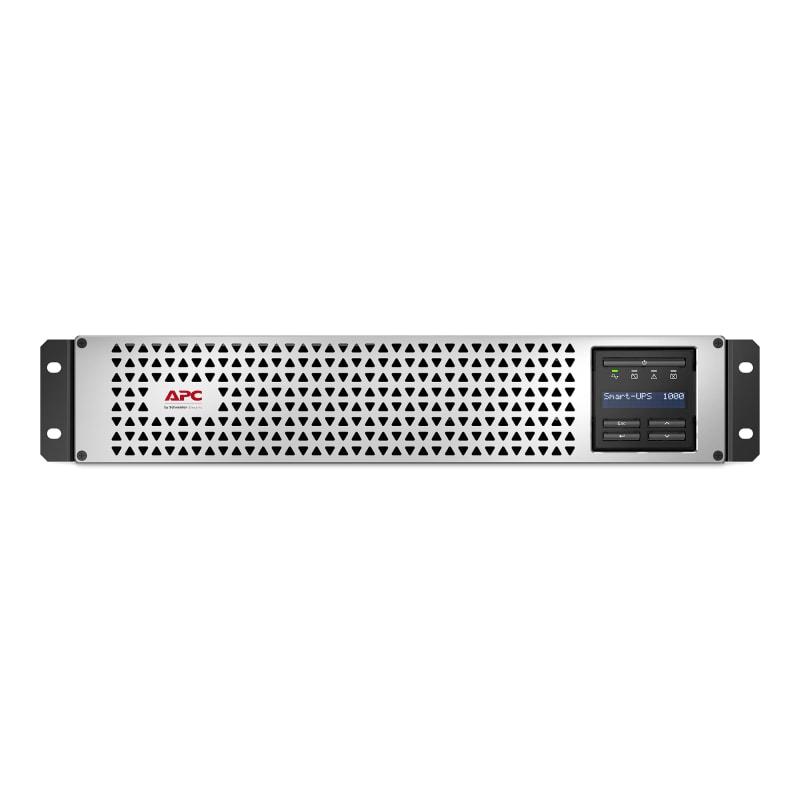

SMT 1KVA 230V SD RM LI SC

Schneider Electric SMTL1000RMI2UC SMT -Ups Lithium ion, short depth 1kVA with SmartConnect, Rack model incl. rail 2U.

Manufacturer part number (MPN)

SMTL1000RMI2UC

EAN / GTIN

0731304402596

Sales unit

pcs

Voltage

230 V

Presentation

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Main input voltage

230 V AC 1 phase

Other input voltage

220 V; 240 V

Input connection

IEC 60320 C14

Input protection

Circuit breaker

Efficiency at full load

151...302 V adjustable; 160...280 V

Input frequency

50/60 Hz +/- 3 Hz auto-sensing

Output voltage

230 V AC 1 phase

Other output voltage

220 V; 240 V

Rated power in W

800 W

Rated power in VA

1000 VA

Output connection

6 IEC 60320 C13

Crest factor

3 : 1

Harmonic distortion

Less than 5 %

Maximum configurable power in VA

1000 VA

Maximum configurable power in W

800 W

Transfer time

6 ms typical : 10 ms maximum

UPS topology

Line interactive

Waveform type

Its wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Li-Ion (Lithium-Ion) internal included

Control panel

Multifunction LCD status and control console

Free slot

1

Alarm

Alarm when on battery : distinctive low battery alarm

Software compatibility

SmartConnect; IT Expert; Secure NMC System; PowerChute Network Shutdown; Data Centre Expert; PowerChute Serial Shutdown

UPS connectivity

Serial port; USB port; SmartConnect port; Available expansion slot

Communication port support

SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use

Software package

SmartConnect software for remote power monitoring feature availability varies by terms of use

Surge energy rating

680 J

Noise filtering

Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449

Number of rack unit

2U

Color

Black with silver front bezel

Height

86 mm

Width

438 mm

Depth

318 mm

Product weight

16.3 kg

Mounting preference

Lower

Mounting mode

Rack-mounted

USB compatible

Yes

Provided equipment

Installation guide; Rack mounting support rails; USB cable

Additional specification

Cloud-enabled monitoring

Redundant

No

Range of product

Smart-UPS

Product or component type

Uninterruptible power supply (UPS)

Product certification

C-Tick; CE; EAC; RCM; UK PSTI

Standard

EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…7620 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

41 dBA

Heat dissipation

70 Btu/h

Operating altitude

0...10000 ft

Battery graph comment

This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v

Extendable runtime

0

Typical recharge time

3 h

Battery design life

8…10 year(s)

Battery charging power

79 W rated

Number of Units in Package 1

1

Country of origin

PH

Warranty (in months)

60

HS Code

8504.40
