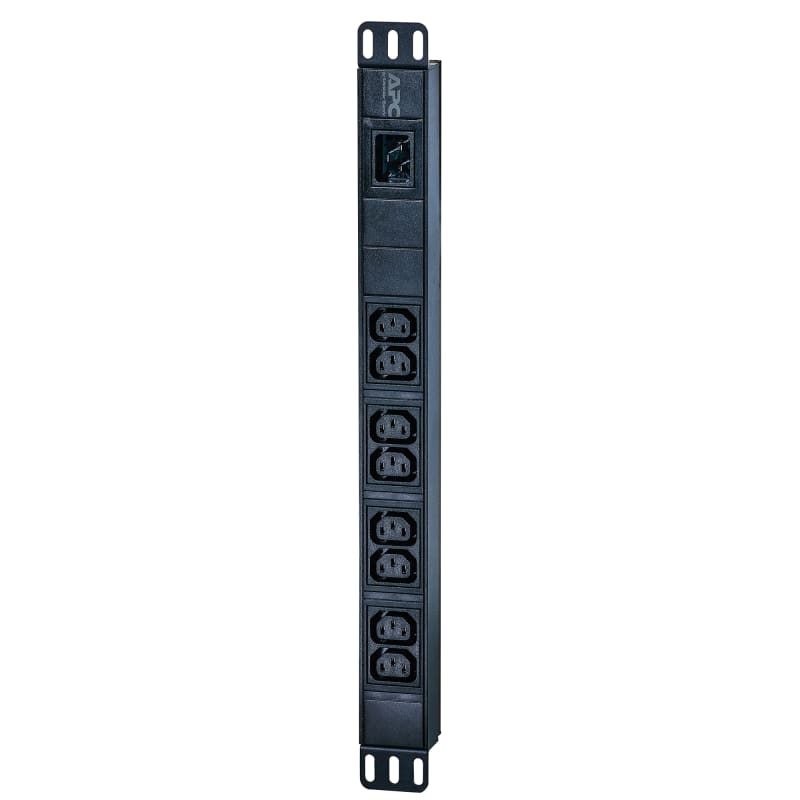

Schneider Electric APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet EPDU1016B
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric EPDU1016B Easy PDU BASIC 1U Rack 16A 230V OUTLET:8 pcs C13.
Technical Specifications
- Manufacturer part number (MPN)
- EPDU1016B
- EAN / GTIN
- 0731304404996
- Sales unit
- pcs
- Voltage
- 230 V
- Rated current
- 16 A
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Basic
- Cord length
- 2.49 m
- Provided equipment
- Installation guide; Rack mounting brackets; User manual; Cable
- Input Voltage
- 200 V; 208 V; 230 V
- Height
- 44.4 mm
- Width
- 482 mm
- Output Voltage
- 208 V; 230 V
- Depth
- 44.4 mm
- Product weight
- 0.58 kg
- Mounting location
- Front; Rear
- Mounting preference
- No preference
- Input Plug Type
- IEC 60320 C20
- mounting mode
- Rack-mounted
- Rack units
- 1U
- Mounting position
- Horizontal
- Input current limits
- 16 A
- Load capacity
- 3680 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 8 IEC 60320 C13
- Product certifications
- CE; TÜV
- Ambient air temperature for operation
- -5…45 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Number of Units in Package 1
- 1
- Country of origin
- CN
- Warranty (in months)
- 12
- With surge protection module
- No
- Mounting direction
- Horizontal
- Electrical connection
- Connection cable with plug
- Cable length
- 2.5 m
- Number of C13 socket outlets
- 8
- Length
- 44.4 mm
- Supply voltage
- 230 V
- Mains filter
- No
- Switchable
- Yes
- With meter
- No
- Control function
- Yes
- SNMP
- No
- Interface ethernet
- No
- With display
- No
- With LED indication
- No
- With fuse
- No
- Ampere meter
- No
- Temperature measurement
- No
- With mounting material
- Yes
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 0731304404996
- SAP 1200422141
- Code 82461903
Product Documentation
More from Schneider Electric
Schneider Electric

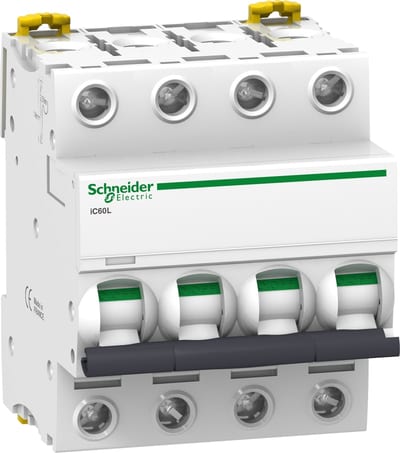

Schneider Electric A9F94406 ACTI9 IC60L Miniature Circuit Breaker 4P 6 A, Curve C
Schneider Electric

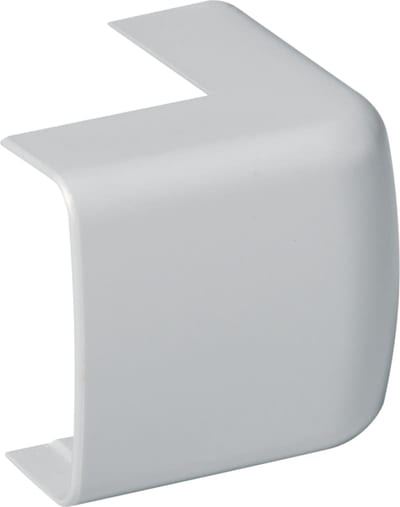

OL MINI 1835 External corner White
ISM14402
Schneider Electric

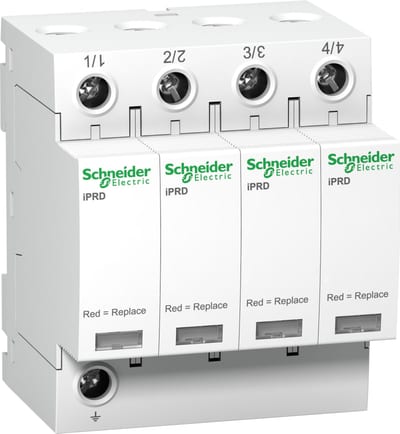

Schneider Electric IPRD20R modular surge arrester - 4P - IT - 460V - with remote transfert A9L20421
Schneider Electric

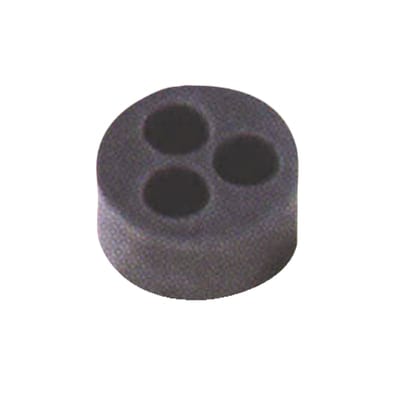

08098 3X4,0mm FOR Nipple M20
