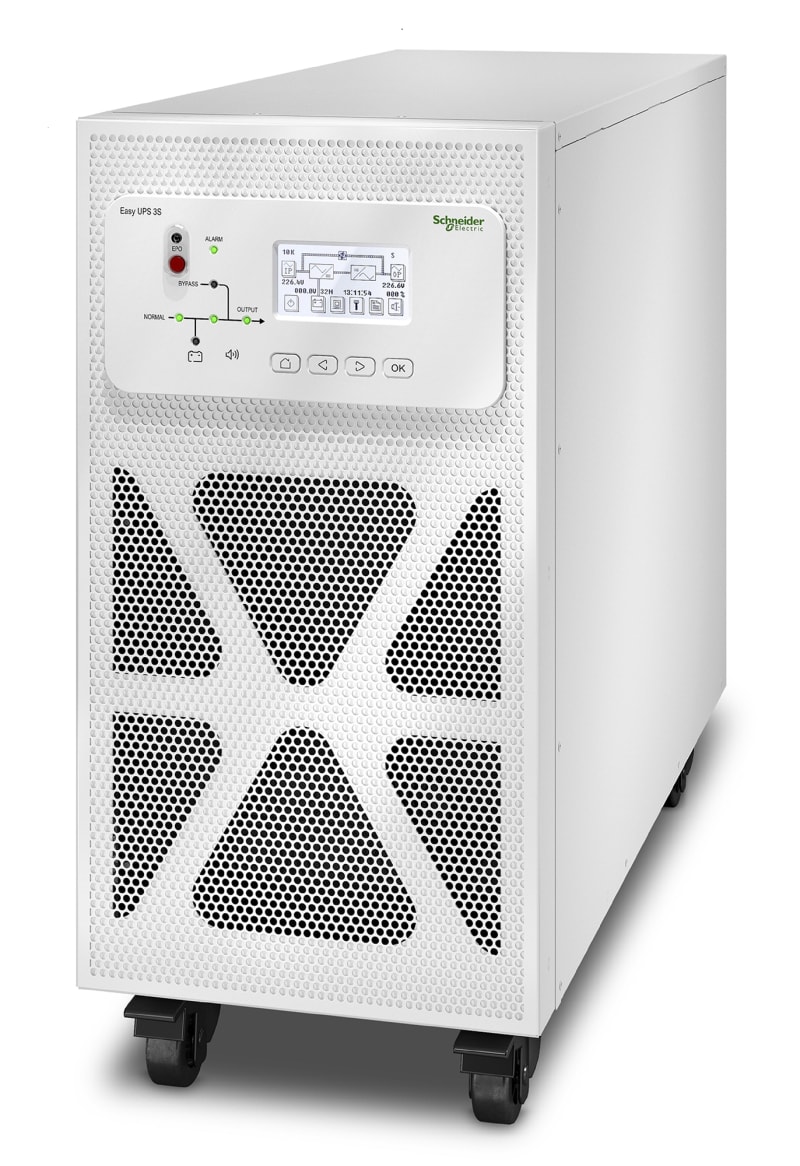

Easy UPS 3S 10 kVA 400 V 3:1

Schneider Electric E3SUPS10K3I Easy UPS 3S 10 kVA 400 V 3:1 UPS for eksterne batteries.

Manufacturer part number (MPN)

E3SUPS10K3I

EAN / GTIN

0731304340645

Sales unit

pcs

Voltage

400 V

Presentation

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.

Main input voltage

400 V AC 3 phases; 380 V AC 3 phases; 415 V AC 3 phases

Other input voltage

380 V; 415 V

Maximum input current

18 A

Input harmonic distortion

Less than 4 % for full load

Cos phi

0.99

Efficiency at full load

304...477 V

Input frequency

45...65 Hz

Output voltage

230 V AC 3 phases; 220 V AC 3 phases; 240 V AC 3 phases

Other output voltage

220 V; 240 V

Rated power in W

10 kW

Rated power in VA

10 kVA

Crest factor

3 : 1

Harmonic distortion

Less than 3 %

Maximum configurable power in VA

10 kVA

Maximum configurable power in W

10 kW

Output overload operation

10 minutes at 125% and 60 seconds at 150%

UPS topology

Double conversion online

Output frequency

50 Hz sync to mains; 60 Hz sync to mains

Efficiency

View Efficiency Graph

Maximum short-circuit current

10 kA

Battery type

Lead-acid external

UPS connectivity

Optional network management card 3

Color

White (RAL 9003)

Height

53 cm

Width

25 cm

Depth

70 cm

Product weight

36 kg

USB compatible

Yes

Provided equipment

Dust filter; Installation guide

Range of product

Easy UPS 3S

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; EAC; RCM

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…40 °C

Storage altitude

0…15240 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

60 dBA

Heat dissipation

516 W

Operating altitude

0...3281 ft

Included battery module

0

Empty battery slot

0

Number of Units in Package 1

1

Country of origin

CN

Warranty (in months)

12

HS Code

8504.40
