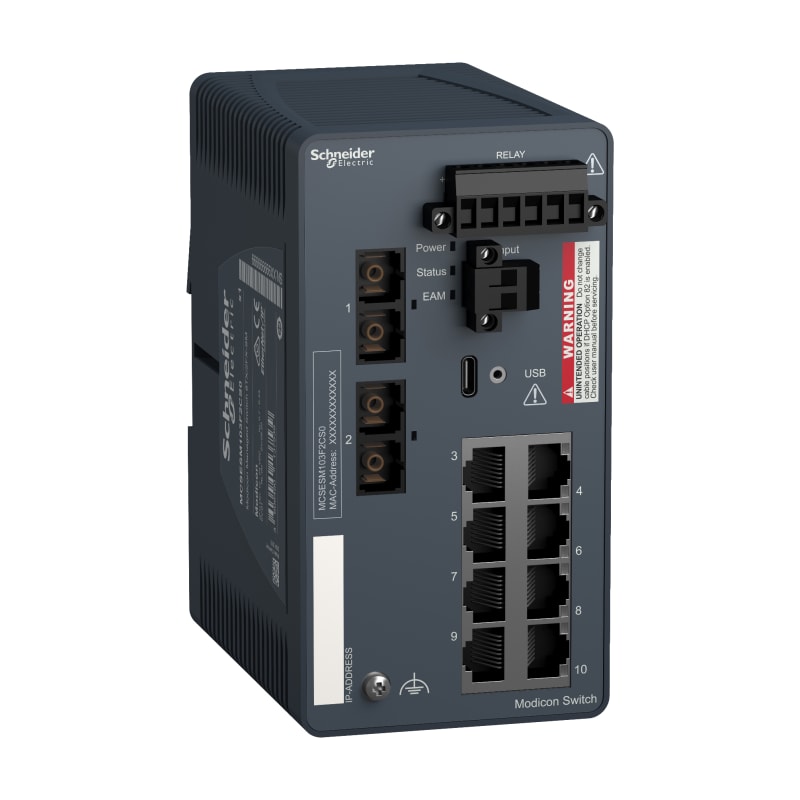

Eth Managed Switch 8TX/2FX-SM

Schneider Electric MCSESM103F2CS0 Modicon Ethernet Managed Switch 8TX/2FX-SM.

Manufacturer part number (MPN)

MCSESM103F2CS0

EAN / GTIN

3606481463357

HS code

8536.90

Sales unit

pcs

Package quantity

8 pcs

Range of product

Modicon Networking

Product or component type

Ethernet TCP/IP managed switch

Communication port protocol

Ethernet TCP/IP; SSH; HTTP; HTTPS; SNMP; SFTP; SCP; LLDP; Telnet; SNTP; Modbus TCP; OPC UA; IEC 61850 MMS Server

Port Ethernet

100BASE-FX - 2 port(s) fiber optic; 10/100BASE-TX - 8 port(s) copper cable

Maximum number of switches in cascade

Unlimited

Cybersecurity

Port hardening; IP-based port security; MAC-based port security; Port-based access control; Role-based access control; RADIUS assignment; HTTPS; DoS prevention; VLAN-based ACL; Audit trail; SNMP logging; Pre-login banner; TACACS+

Integrated connection type

Duplex SC fiber optic; Shielded RJ45 copper cable

Transmission support medium

Single mode optical fiber for fiber optic; Twisted shielded pairs cable CAT 5E for copper cable

Maximum cable distance between devices

100 m copper cable

Optic fiber length

30 km 9/125 µm

Attenuation

0…16 dB (9/125 µm)

Ethernet service

Configuration via web server; VLAN; Multicast filtering; Data stream control; IGMP Snooping; SNMP-Traps and SYSLOG

Communication service

TFTP; Quality of Service (QoS); Port monitoring; Port mirroring; Address conflict detection

Diagnostics run time

Signal contact; Self test; MAC notification; RSPAN; SFLOW

Maximum number of switches in a ring

50

Redundancy

HiPER ring; RSTP; Link aggregation; Link backup; Redundant network coupling; MRP; Redundant coupling protocol; MSTP

Supply voltage

12...24 V

Supply voltage limits

9.6…32 V DC SELV

Power consumption in W

8 W

Electrical connection

Removable connector 6 ways power supply

Mounting support

35 mm symmetrical DIN rail

Marking

CE; CULus; RCM

Function available

Security status; Alarms (Traps); System information; Report

Local signalling

1 dual colour LED (green/yellow) for P1 P2 power supplies; 1 dual colour LED (green/red) for device status; 1 dual colour LED (green/yellow) for memory key status; 1 dual colour LED (green/yellow) for channel diagnostic

Alarm output

1 voltfree contact 1 A

Alarm function

Power supply fault; Data link status; Switch fault; Temperature threshold; Redundancy ring fault; Incorrect configuration; External memory removed

Ethernet cabling system

TF switches

Width

73 mm

Height

142.8 mm

Depth

117.6 mm

Product weight

0.50 kg

Ambient air temperature for operation

0…60 °C

Relative humidity

1…95 % non-condensing

IP degree of protection

IP30

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Standards

UL 61010-2-201; EN/IEC 61131-2; IEC 61850-3; IEC 62443-4-2; EN 50121-4

Product certifications

CE; UL; RCM; DNV; ATEX; EAC; UKCA; CSA C22-2 No 213; UKEX; FCC part 15 class A; CCC Ex

Number of Units in Package 1

1

Number of Units in Package 2

8

Country of origin

DE

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481463357
• SAP 1200722615
• Code 83857056
