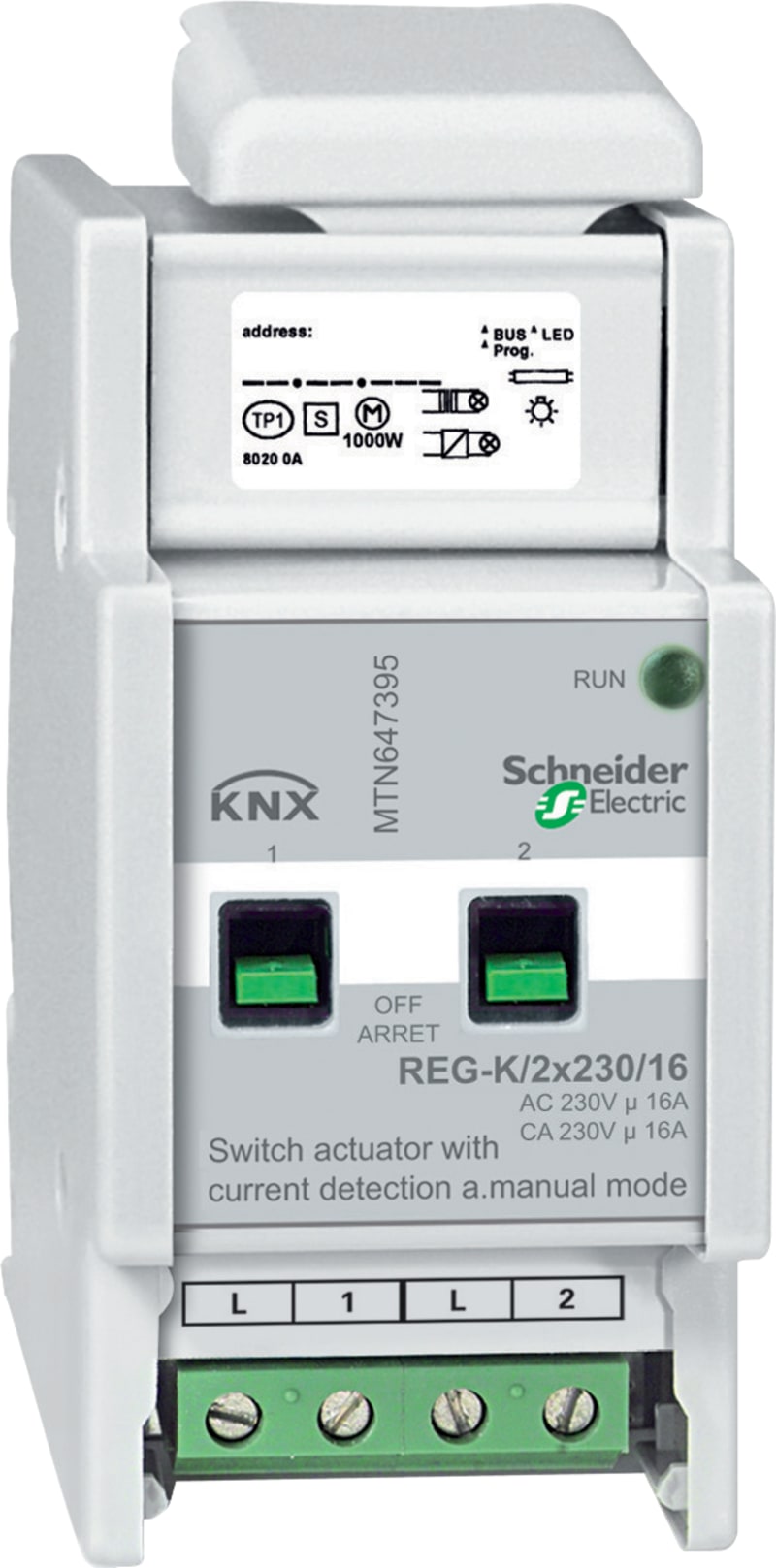

Schneider Electric MTN647395 KNX Switch Actuator REG-K 2x230V/16A Current Detection

The Schneider Electric MTN647395 is a KNX switch actuator in REG-K DIN-rail format with two 230 V, 16 A output channels, manual override and integrated current detection. Channels may be assigned to different phases and switch incandescent, halogen, fluorescent and capacitive loads within stated limits. IP20 light-grey housing, 2.5 modules wide, for KNX-controlled lighting and appliance circuits in commercial and residential installations.

Manufacturer part number (MPN)

MTN647395

EAN / GTIN

3606485100050

Sales unit

pcs

Package quantity

30 pcs

Range of product

KNX

Product or component type

Switch actuator

Operating mode

Manual

Bus type

KNX

Modular device additional info

Connectable with different phases

Number of contacts

2

Switching current

16 A

Colour tint

Light grey

Power supply input current

16 mA

Function available

Current detection

Total number of 18 mm modules

2.5

Mounting support

DIN rail

Device mounting

DIN rail

[Ue] rated operational voltage

100...240 V

Network frequency

50...60 Hz

[In] rated current

0.1…16 A

Load type

Incandescent lamps: <= 3600 W, 230 V AC; Halogen lamps: <= 2500 W, 230 V AC; Incandescent lamps: <= 1600 W, 100 V AC; Incandescent lamps: <= 3840 W, 240 V AC; Halogen lamps: <= 1086 W, 100 V AC; Halogen lamps: <= 2608 W, 240 V AC; Parallel compensated fluorescent lamp: <= 1086 VA, 100 V AC; Parallel compensated fluorescent lamp: <= 2500 VA, 230 V AC; Parallel compensated fluorescent lamp: <= 2608 VA, 240 V AC; Capacitive: , 16 A, 200 µF, 100...240 V AC; Motor: <= 434 W, 100 V AC; Motor: <= 1000 W, 230 V AC; Motor: <= 1043 W, 240 V AC

Device presentation

Complete product

Main colour tint

Light grey

IP degree of protection

IP20

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.000 cm

Package 1 Width

7.900 cm

Package 1 Length

9.700 cm

Package 1 Weight

218.000 g

Unit Type of Package 2

CAR

Number of Units in Package 2

30

Package 2 Height

19.500 cm

Package 2 Width

30.800 cm

Package 2 Length

40.600 cm

Package 2 Weight

6.948 kg

Country of origin

LV

Warranty (in months)

18

Width in number of modular spacings

2.5

Max. switching power

3600 W

Output power

3600 W

Max. number of switching contacts

2

Max. switching current

16 A

Rated current

16 A

Degree of protection (IP)

IP20

HS Code

9107.00
