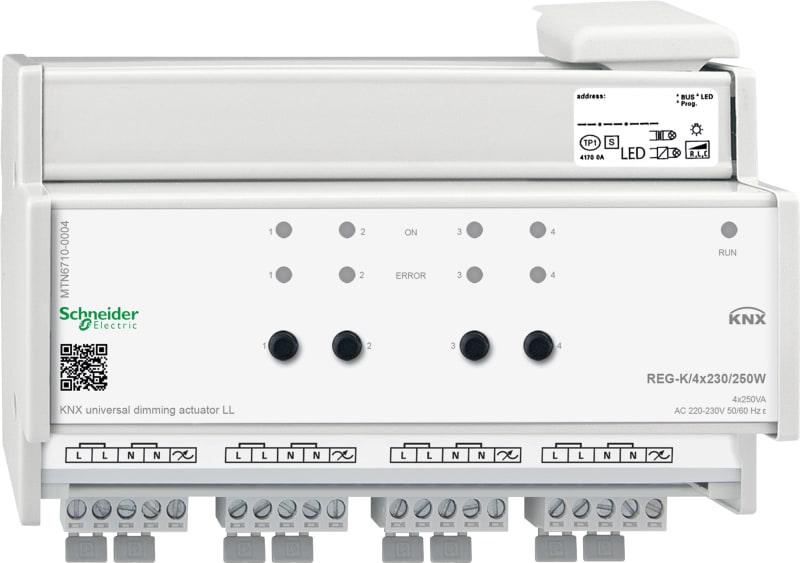

Schneider Electric KNX universal dimming actuator LL REG-K/4X230/250W MTN6710-0004

Schneider Electric MTN6710-0004 KNX universal dimmer, 4x230V, 250W, for DIN rail mounting.

Manufacturer part number (MPN)

MTN6710-0004

EAN / GTIN

3606480701368

HS code

8536.90

Sales unit

pcs

Range

KNX

Product or component type

Dimming actuator

Operating mode

Manual; KNX bus system

Bus type

KNX

Power supply input current

10 mA

total number of 18 mm modules

8

Mounting support

DIN rail

[Ue] rated operational voltage

220...230 V; 110...130 V

Network frequency

50/60 Hz

Number of outputs

4

Local signalling

LED

Load type

Incandescent lamps: 4...250 W at 230 V 50 Hz AC; Halogen lamps: 4...250 W at 230 V AC; LV halogen lamps: 25...250 VA at 12 V AC (wound transformer); LV halogen lamps: 4...250 W at 12 V AC (electronic transformer); Compact fluorescent lamp: 4...125 W at 230 V AC (RC mode); Energy saving lamp: 4...125 W at 230 V AC (RC mode); LED lamp: 4...125 W at 230 V AC (RC mode); Compact fluorescent lamp: 25...45 W at 230 V AC (RL LED mode); Energy saving lamp: 25...45 W at 230 V AC (RL LED mode); LED lamp: 25...45 W at 230 V AC (RL LED mode); Incandescent lamps: 4...125 W at 110 V AC; Halogen lamps: 4...125 W at 110 V AC; LV halogen lamps: 25...125 VA at 12 V AC (wound transformer); LV halogen lamps: 4...125 W at 12 V AC (electronic transformer); Compact fluorescent lamp: 4...60 W at 110 V AC (RC mode); Energy saving lamp: 4...60 W at 110 V AC (RC mode); LED lamp: 4...60 W at 110 V AC (RC mode); Compact fluorescent lamp: 12...22 W at 110 V AC (RL LED mode); Energy saving lamp: 12...22 W at 110 V AC (RL LED mode); LED lamp: 12...22 W at 110 V AC (RL LED mode)

Colour tint

White

IP degree of protection

IP20

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

LV

Warranty (in months)

18

HS Code

8536.90

• EAN 3606480701368
• SAP 1000711982
• Code 8330200
