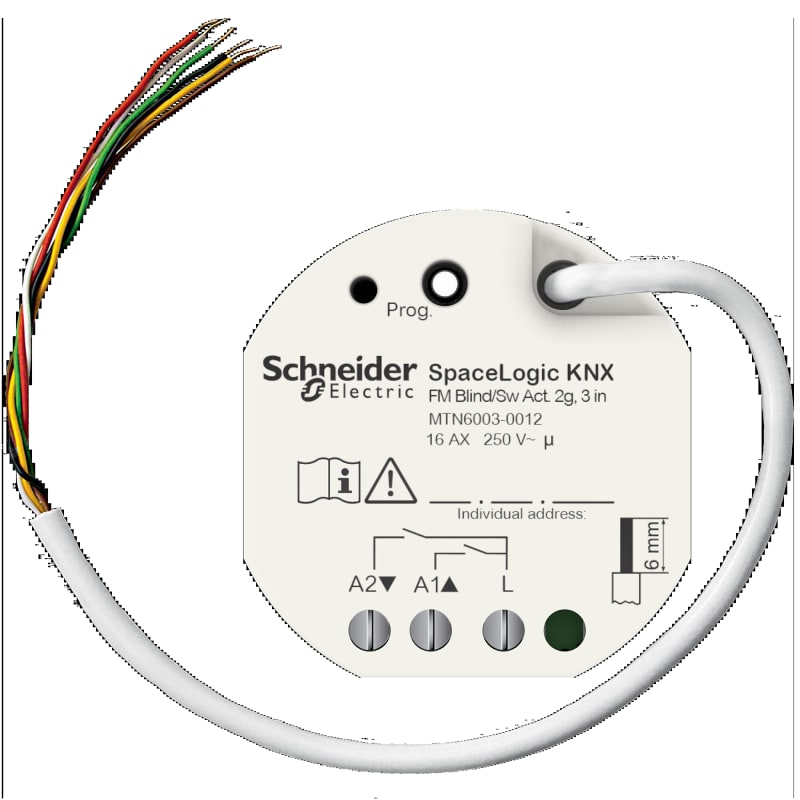

Schneider Electric Blind/switch actuator, SpaceLogic KNX, 2 gang, flush, 3 binary inputs, KNX Secure, Supply KNX 18 mA MTN6003-0012

SpaceLogic KNX bryteaktuator, recessed - 2k persienne with 3 binary inputer - 1-2x 250 V 16 A.

Manufacturer part number (MPN)

MTN6003-0012

EAN / GTIN

3606482046788

Sales unit

pcs

Package quantity

60 pcs

Range

SpaceLogic KNX

Product or component type

Blind switch actuator

Bus type

KNX

Operating mode

KNX bus system

rated input

Signal voltage (SELV): 3 x binary

Mounting support

Flush

[Ue] rated operational voltage

230 V AC 50/60 Hz

[In] rated current

16 A

Number of outputs

2

Load type

Motor: , 230 V AC; Incandescent lamp: <= 2500 W, 230 V AC; High voltage halogen lamp: <= 2500 W, 230 V AC; LED lamp: <= 400 W, 230 V AC; Capacitive: , 16 A, 140 µF, 230 V AC; Resistive load: 2500 W

Width

48 mm

Height

28 mm

Depth

50 mm

Maximum cable length

10 m for input

IP degree of protection

IP20

Ambient air temperature for operation

-5…45 °C

Power supply input current

18 mA

Number of Units in Package 1

1

Number of Units in Package 2

60

Warranty (in months)

18

Bus system KNX Secure

No

Bus system KNX Secure-RF (Radio Frequency)

No

Bus system KNX

Yes

Bus system KNX-RF (Radio Frequency)

No

Bus system radio frequency

No

Bus system LON

No

Bus system Powernet

No

Other bus systems

None

Radio frequency bidirectional

No

Mounting method

Flush-mounted

With bus connection

Yes

Bus module detachable

No

Local operation/hand operation

No

With LED indication

Yes

Number of inputs

3

Switching current (resistive)

16 A

Max. switching power

2500 W

Max. number of venetian-blind outputs

2

With switch function

Yes

Type of current

AC

Degree of protection (IP)

IP20

Min. depth of built-in installation box

40 mm

Country of origin

Germany

HS Code

8538.90

• EAN 3606482046788
• SAP 1200571025
• Code 82923416
