STB KIT 5VDC Power Supply
Pricing
Request a quote
We reply within 24 hours
Product Description

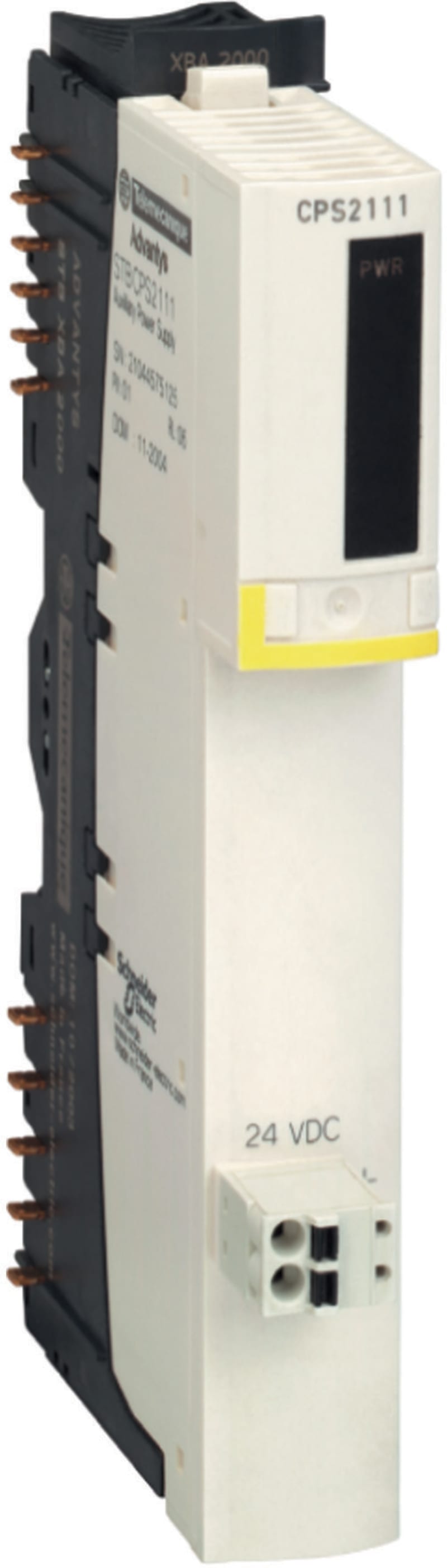

Schneider Electric STBCPS2111K STB kit 5VDC power supply.
Technical Specifications
- Manufacturer part number (MPN)
- STBCPS2111K
- EAN / GTIN
- 3595863949223
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range of product
- Modicon STB distributed I/O solution
- Product or component type
- Auxiliary power supply kit
- Kit composition
- Terminal spring clamp connector; STBXBA2100 base; STBCPS2111 module; Terminal screw type connector
- [Us] rated supply voltage
- 24 V for DC
- Output voltage
- 5.25 V +/- 0.21 % logic bus
- Electrical connection
- 2 pins for removable connector for power supply
- Electromagnetic compatibility
- Immunity to electromagnetic interference conforming to IEC 61131-2
- Supply voltage limits
- 19.2…30 V
- Input current
- 400 mA
- Protection type
- Reverse polarity; Short-circuit; Overload
- Local signalling
- 1 LED green for PWR power supply
- Housing colour
- White
- Height
- 120 mm
- Width
- 18.4 mm
- Depth
- 125 mm
- Overvoltage category
- II
- IP degree of protection
- IP20
- Marking
- CE
- Product certifications
- CSA; FM Class 1 Division 2; UL
- Standards
- EN/IEC 61131-2
- Ambient air temperature for operation
- 0…60 °C without derating
- Ambient air temperature for storage
- -40…85 °C without derating
- Relative humidity
- 95 % at 60 °C without condensation
- Operating altitude
- <= 2000 m
- Pollution degree
- 2
- Vibration resistance
- 3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail; +/-0.35 mm (f = 10…58 Hz)
- Shock resistance
- 30 gn for 11 ms conforming to IEC 88 reference 2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 42
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for safety functions
- No
- Type of voltage (input voltage)
- DC
- Redundancy
- No
- Output voltage DC
- 5.25 V
- Input voltage DC
- 19.2–30 V
- Max. output current DC
- 1.2 A
- Max. input current DC
- 0.4 A
- Type of output voltage
- DC
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3595863949223
- SAP 1000253845
- Code 8220509
Product Documentation
More from Schneider Electric
Schneider Electric
Cover for ID B kl. 4P 10 pcs
16939
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63H, 70KA/415VAC, 3 poles, MicroLogic 4.1 trip unit 25A, EverLink lugs C11H34V025L
Schneider Electric

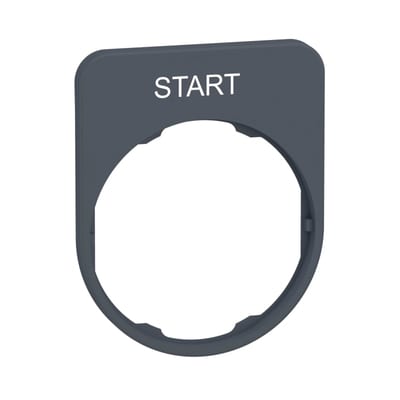

Sign flush in grey plastic (ZBYFP2303C0)
Schneider Electric

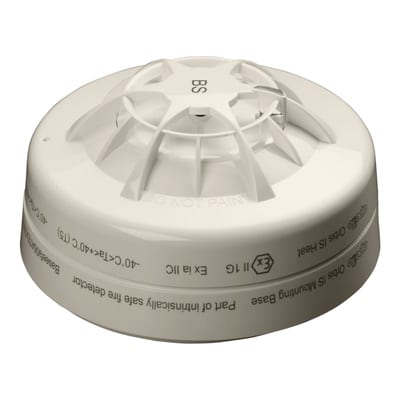

Heat detector ORB-HT-51151-APO
FFS06725741
Schneider Electric

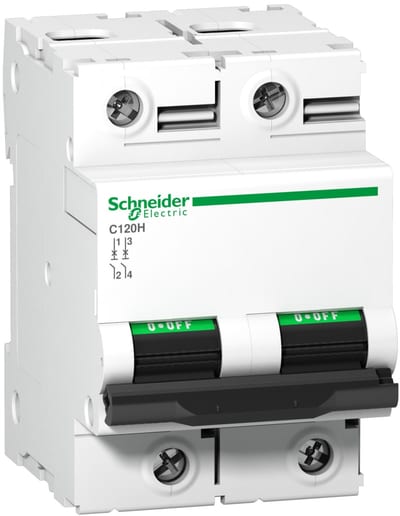

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120H, 2P, 100A, C curve, 15000A (IEC/EN 60898-1), 15KA (IEC/EN 60947-2) A9N18458
Schneider Electric

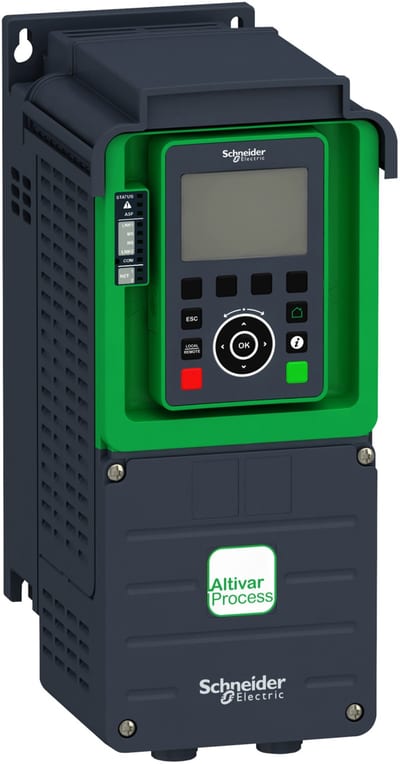

Schneider Electric variable speed drive, ATV930, 3kW, 200/240V, with braking unit, IP21 ATV930U30M3
Schneider Electric

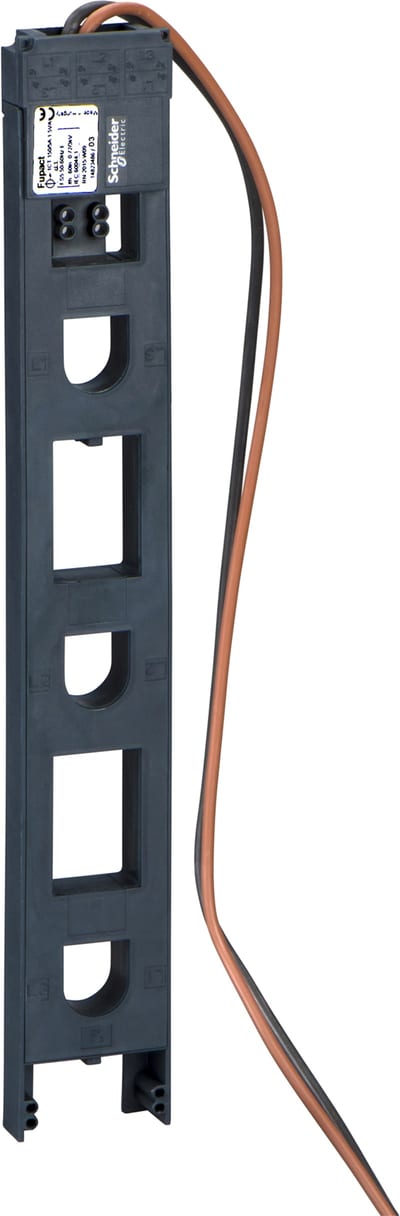

Schneider Electric Single block with 1 current transformer, FuPacT ISFL160, 3 poles, class 1, 150/5A, 1.5VA LV480883
Schneider Electric

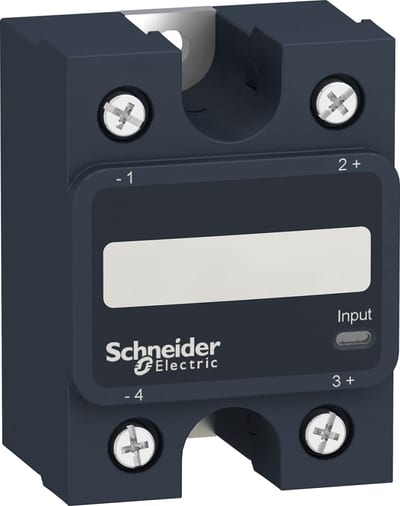

Schneider Electric Solid state panel mount relay, 125 A, zero voltage switching, thermal pad, input 90…280 V AC, output 48…660 V AC SSP1A4125M7T
