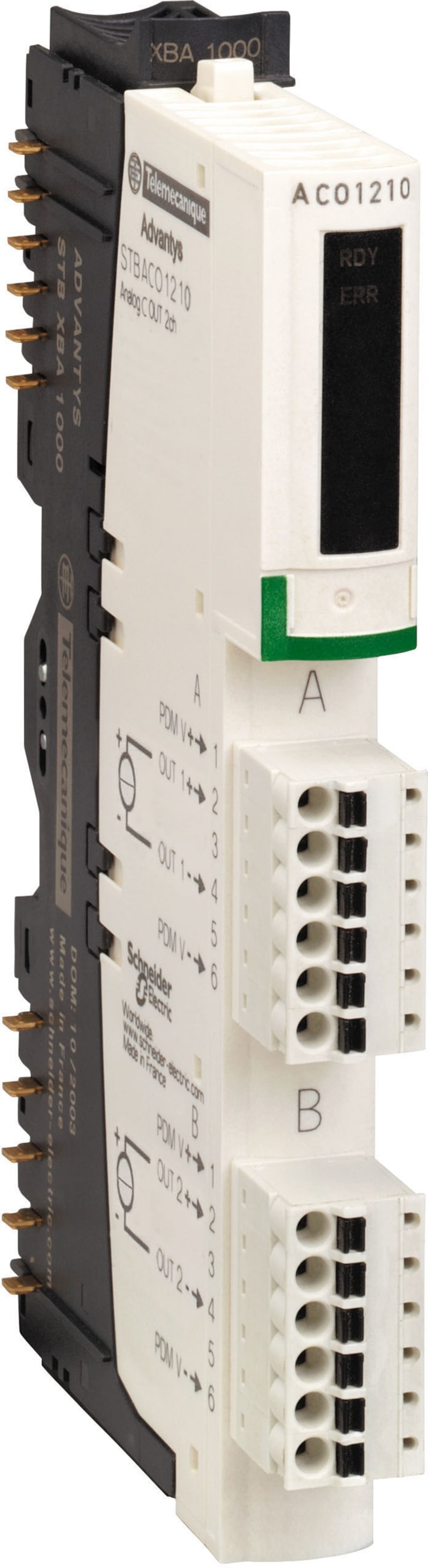

Schneider Electric standard analog output kit STB - 0..20 mA - 2 O - 12 bits STBACO1210K

Schneider Electric STBACO1210K STB kit 2 out analog, 0-20mA, 12bit.

Manufacturer part number (MPN)

STBACO1210K

EAN / GTIN

3595863948776

Sales unit

pcs

Output signal

0–20 mA

Range of product

Modicon STB distributed I/O solution

Product or component type

Standard analog output kit

Kit composition

STBXTS1100, 6-terminal screw type connector; STBACO1210 module; STBXBA1000 base; STBXTS2100, 6-terminal spring clamp connector

Product compatibility

Mounting base STBXBA1000; Power distribution module STBPDT3100/3105

Analogue input number

0

Analogue output number

2

Analogue output current

0.02 A

Update time

25 ms

Conversion time

900 ms

Analogue output type

Current: 0...20 mA

Height

13.9 mm

Width

128.3 mm

Depth

70 mm

Product weight

0.117 kg

Marking

CE

Relative humidity

95 % at 60 °C without condensation

Number of Units in Package 1

1

Number of Units in Package 2

28

Number of Units in Package 3

448

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Input, current

No

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue inputs

12 Bit

Output, current

Yes

Output, voltage

No

Output signal configurable

No

Resolution of the analogue outputs

12 Bit

Number of analogue outputs

2

Analogue inputs configurable

No

Analogue outputs configurable

Yes

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Screw connection

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

HS Code

8538.90

• EAN 3595863948776
• SAP 1000035411
• Code 8513651
