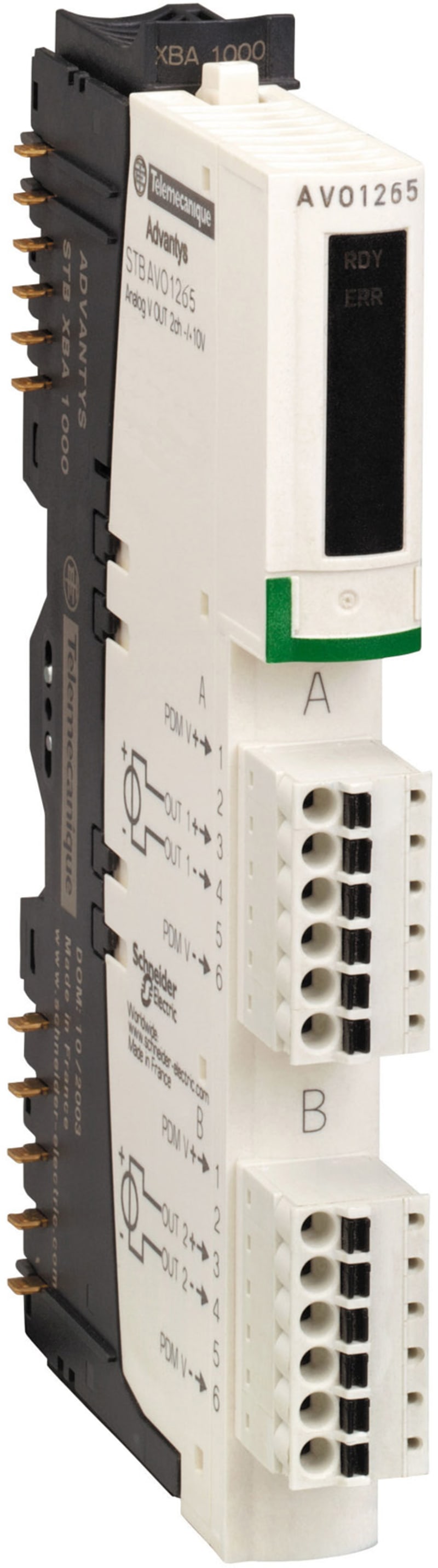

Schneider Electric basic analog output kit STB - +/- 10 V - 2 O - 9 bits + sign STBAVO1265K

Schneider Electric STBAVO1265K STB kit 2 out analog, +/-10V, 10bit, basic.

Manufacturer part number (MPN)

STBAVO1265K

EAN / GTIN

3595863948981

Sales unit

pcs

Range of product

Modicon STB distributed I/O solution

Product or component type

Basic analog output kit

Kit composition

STBAVO1265 module; STBXTS2100, 6-terminal spring clamp connector; STBXTS1100, 6-terminal screw type connector; STBXBA1000 base

Product compatibility

Mounting base STBXBA1000; Power distribution module STBPDT3100/3105

Analogue input number

0

Analogue output number

2

Analogue output current

0.02 A

Response time

3 ms

Cold swapping

Yes

Fallback status

State 0

Data format

IEC 61131-2; EN 61131-2

Update time

25 ms

Absolute accuracy error

+/- 0.5 % of full scale per °C

Integral linearity

+/- 0.1 %FS

Differential linearity

Monotonic

Addressing requirement

2 output words

Supply

Power distribution module

Analogue output type

Voltage: +/- 10 V

Output protection type

Short-circuit protection

Temperature drift

+/-0.01 %/°C

Typical current consumption

40 mA at 5 V DC for logic bus

Isolation between channels and bus

1500 V for 1 minute

Local signalling

1 LED green for module status (RDY)

Overvoltage category

II

Height

13.9 mm

Width

128.3 mm

Depth

70 mm

Product weight

0.115 kg

IP degree of protection

IP20

Marking

CE

Product certifications

CSA; FM Class 1 Division 2; UL

Ambient air temperature for operation

0…60 °C (without derating)

Ambient air temperature for storage

-40…85 °C without derating

Relative humidity

95 % at 60 °C without condensation

Operating altitude

<= 2000 m

Pollution degree

2

Vibration resistance

5 gn (f = 58…150 Hz) on 35 mm DIN rail; 3 gn (f = 58…150 Hz) on 35 mm DIN rail; +/-0.35 mm (f = 10…58 Hz)

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.700 cm

Package 1 Width

8.000 cm

Package 1 Length

13.000 cm

Package 1 Weight

136.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

28

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.110 kg

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

10 V

Voltage type (supply voltage)

AC/DC

Input, current

No

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue inputs

9 Bit

Output, current

No

Output, voltage

Yes

Output signal configurable

Yes

Resolution of the analogue outputs

9 Bit

Number of analogue outputs

2

Analogue inputs configurable

No

Analogue outputs configurable

Yes

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Screw connection

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

HS Code

8538.90
