Schneider Electric basic analog output kit STB - 0..10 V - 2 O - 10 bits STBAVO1255K
Part numberSTBAVO1255KEAN / GTIN3595863948974HS code8538.90
Tools
Hand Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric STBAVO1255K STB kit 2 out analog, 0-10V, 10 bit, basic.
Technical Specifications
- Manufacturer part number (MPN)
- STBAVO1255K
- EAN / GTIN
- 3595863948974
- Sales unit
- pcs
- Output signal
- 0–10 V
- Range of product
- Modicon STB distributed I/O solution
- Product or component type
- Basic analog output kit
- Kit composition
- STBXTS1100, 6-terminal screw type connector; STBXBA1000 base; STBAVO1255 module; STBXTS2100, 6-terminal spring clamp connector
- Product compatibility
- Mounting base STBXBA1000; Power distribution module STBPDT3100/3105
- Analogue input number
- 0
- Analogue output number
- 2
- Analogue output current
- 0.005 A
- Update time
- 25 ms
- Analogue output type
- Voltage: 0...10 V
- Height
- 13.9 mm
- Width
- 128.3 mm
- Depth
- 70 mm
- Product weight
- 0.116 kg
- Marking
- CE
- Relative humidity
- 95 % at 60 °C without condensation
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 28
- Country of origin
- ID
- Warranty (in months)
- 18
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 0–10 V
- Voltage type (supply voltage)
- DC
- Input, current
- No
- Input, voltage
- No
- Input, resistor
- No
- Input, resistance thermometer
- No
- Input, thermocouple
- No
- Input signal, configurable
- No
- Resolution of the analogue inputs
- 10 Bit
- Output, current
- No
- Output, voltage
- Yes
- Output signal configurable
- Yes
- Resolution of the analogue outputs
- 10 Bit
- Number of analogue outputs
- 2
- Analogue inputs configurable
- No
- Analogue outputs configurable
- Yes
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- Type of electric connection
- Screw connection
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- Yes
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3595863948974
- SAP 1000035424
- Code 8727843
Product Documentation
Document preview: Schneider Electric STBAVO1255K — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric variable speed drive ATV650 - 5.5KW/7.5HP - 380...480V - IP55 ATV650U55N4
Schneider Electric
APC UPS SRTL Ultra 3KVA 1U NC
SRTL3KRM1UINC
Schneider Electric
K60 .box without .piece
IMT34092
Schneider Electric
Schneider Electric Variable speed drive, Altivar Machine ATV320, 5.5 kW, 380...500 V, 3 phases, enclosed ATV320U55N4W
Schneider Electric

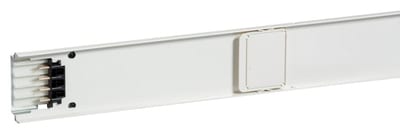

RAIL 63A 3M 3 Outlet + BUS
KNT63ED4303
Schneider Electric

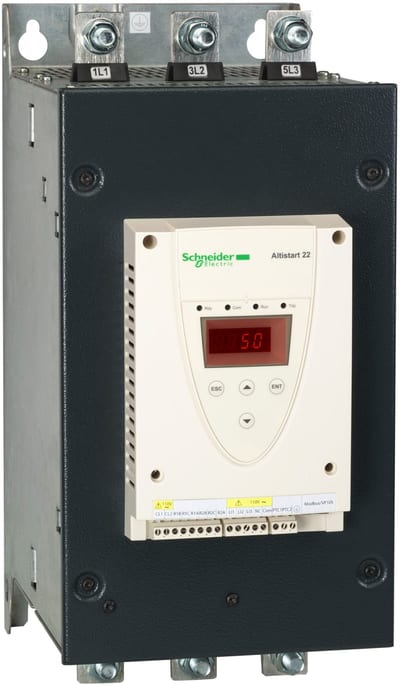

Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(75kW)/400...440V(132kW) ATS22C25Q
Schneider Electric

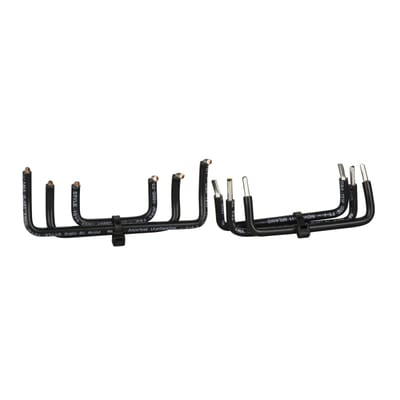

Schneider Electric Connection Kit, Easy TeSys, LC1E18-E25
LAEP12
Schneider Electric

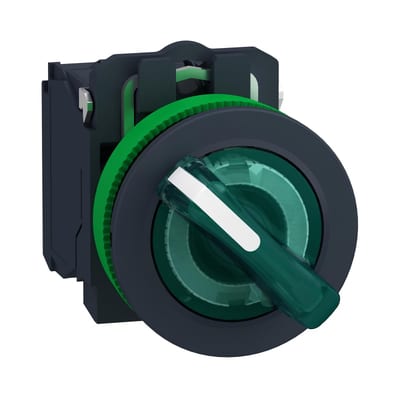

Schneider Electric Illuminated selector switch, Harmony XB5, grey plastic, green handle, 30mm, universal LED, 2 positions, 1NO + 1NC, 230...240V AC XB5FK123M5
