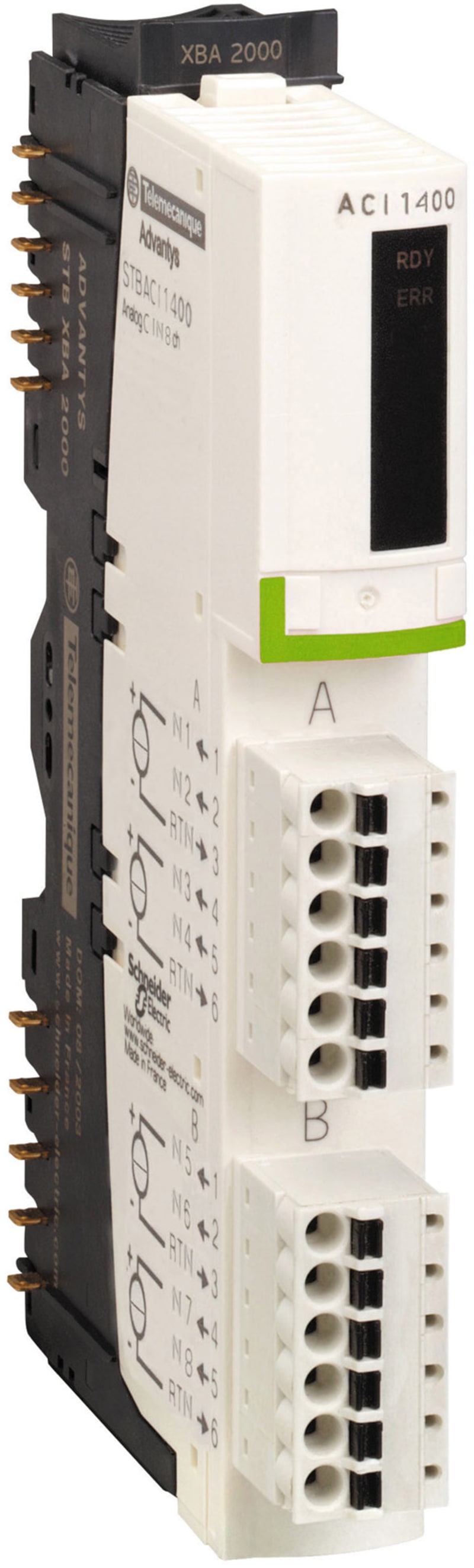

Schneider Electric standard analog input kit STB - 4..20 mA - 8 I - 15 bits + sign STBACI1400K
Part numberSTBACI1400KEAN / GTIN3595863948400HS code8538.90
Tools
Hand Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric STBACI1400K STB kit 8 in analog, mA, 16bit.
Technical Specifications
- Manufacturer part number (MPN)
- STBACI1400K
- EAN / GTIN
- 3595863948400
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Modicon STB distributed I/O solution
- Product or component type
- Standard analog input kit
- Kit composition
- STBXTS1100, 6-terminal screw type connector; STBXTS2100, 6-terminal spring clamp connector; STBACI1400 module; STBXBA2000 base
- Product compatibility
- Power distribution module STBPDT3100/3105; Mounting base STBXBA2000
- Analogue input number
- 8
- Analogue output number
- 0
- Update time
- 22 ms
- Hot swapping fallback
- Yes for standard NIMs
- Height
- 18.4 mm
- Width
- 128.3 mm
- Depth
- 70 mm
- Marking
- CE
- Relative humidity
- 95 % at 60 °C without condensation
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 28
- Number of Units in Package 3
- 448
- Country of origin
- ID
- Warranty (in months)
- 18
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 24 V
- Voltage type (supply voltage)
- DC
- Input, current
- Yes
- Input, voltage
- No
- Input, resistor
- No
- Input, resistance thermometer
- No
- Input, thermocouple
- No
- Input signal, configurable
- Yes
- Resolution of the analogue inputs
- 15 Bit
- Output, current
- No
- Output, voltage
- No
- Output signal configurable
- No
- Number of analogue inputs
- 8
- Analogue inputs configurable
- Yes
- Analogue outputs configurable
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- Type of electric connection
- Screw connection
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- Yes
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3595863948400
- SAP 1000024270
- Code 8188138
Product Documentation
Document preview: Schneider Electric STBACI1400K — OEM Product Page
More from Schneider Electric
Schneider Electric

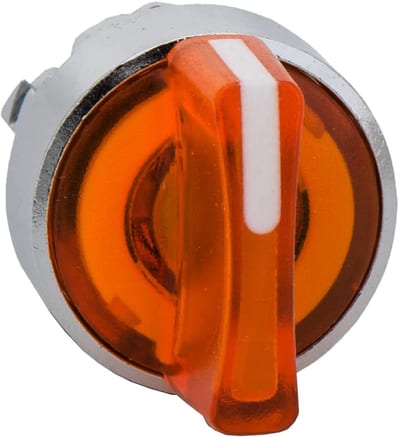

Selector switch with LIGHT 3ST.RET.FR.H Yellow
ZB4BK1853
Schneider Electric

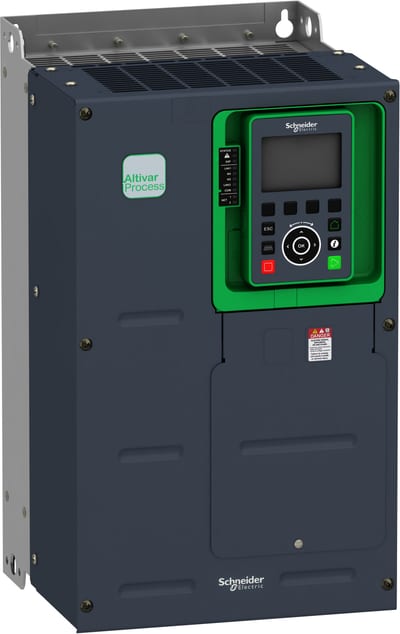

Schneider Electric Variable speed drive, Altivar Process ATV900, ATV930, 4KW/5 hp, 500V/690 V, IP00 ATV930U40Y6
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 230V AC 50/60Hz coil, snap-in terminals LC1D12AP7
Schneider Electric

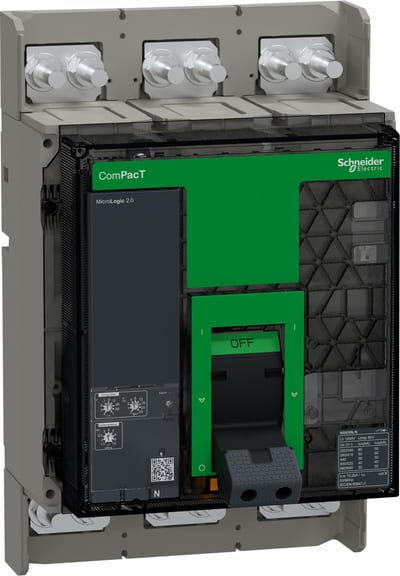

Schneider Electric Circuit breaker frame, ComPacT NS630BN, 50KA at 415VAC, 630A, 3P, fixed, manually operated, without control unit C063N3FM
Schneider Electric

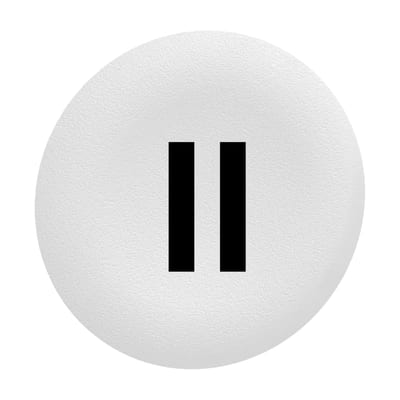

Push Button Cap flush white (ZBAF136)
Schneider Electric
Montasejplate 700X500 (NSYMF75)
Schneider Electric

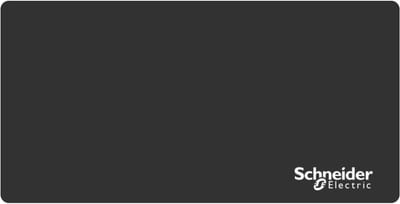

Schneider Electric Harmony XB5, Legend panel 200 x 100, unmarked ZBYLEG201000
Schneider Electric

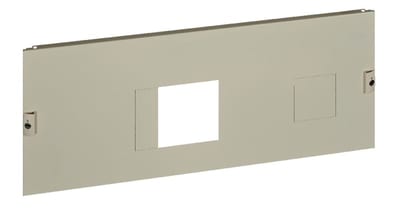

Front plate horizontal NSX630 B850 Prisma G
