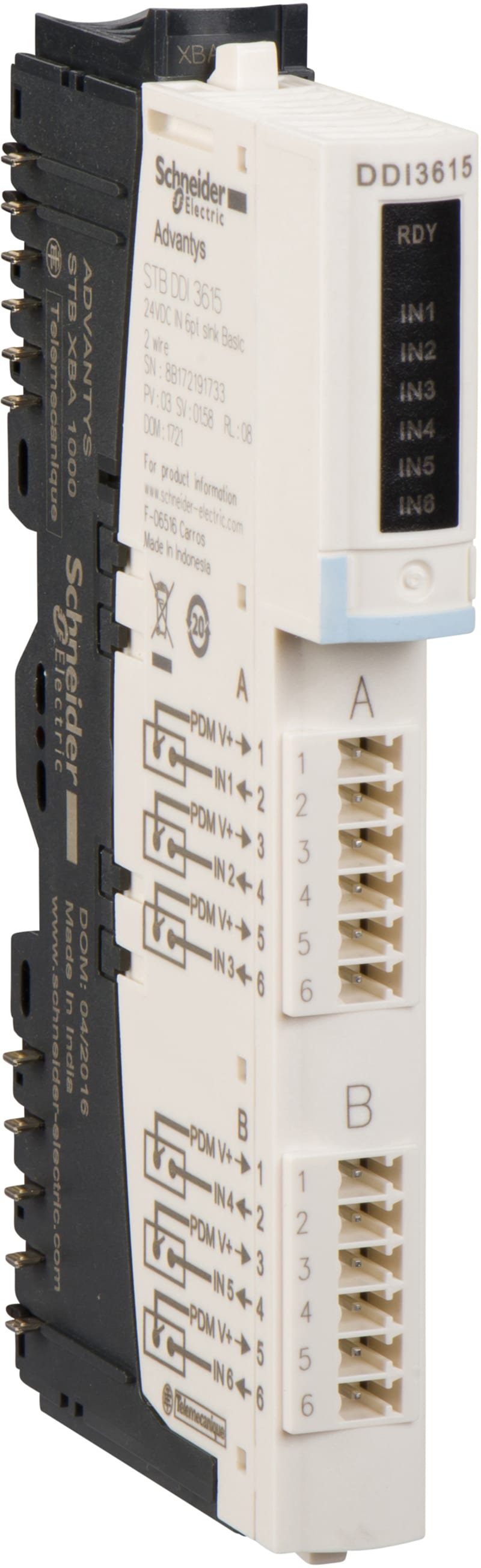

Schneider Electric basic digital input kit STB - 24 V DC - 6 I STBDDI3615K

Schneider Electric STBDDI3615K STB kit 6 in 24VDC, basic.

Manufacturer part number (MPN)

STBDDI3615K

EAN / GTIN

3595863949032

Sales unit

pcs

Voltage

24 V DC

Range of product

Modicon STB distributed I/O solution

Product or component type

Basic digital input kit

Kit composition

STBXTS1100, 6-terminal screw type connector; STBDDI3615 module; STBXBA1000 base; STBXTS2100, 6-terminal spring clamp connector

Product compatibility

Power distribution module STBPDT3100/3105; I/O base STBXBA1000

Discrete input number

6

Discrete input voltage

15...30 V for type 1; - 3...5 V

Discrete input logic

Positive

Discrete input compatibility

6 type 1 at 24 V DC

Discrete input current

4.5 mA at 24 V DC

Voltage state 1 guaranteed

At state 1: 15...30 V

Voltage state 0 guaranteed

-3...5 V at state 0

Current state 1 guaranteed

>= 2.5 mA

Current state 0 guaranteed

<= 0.5 mA

Response time on input

5.25 ms (off to on); 5.75 ms (on to off)

Input filtering

5 ms

Input protection type

Input protection resistor-limited; Reverse polarity protection

Power supply type

Power distribution module

Typical current consumption

45 mA at 5 V DC for logic bus

Electrical connection

Screw/spring terminal block

Local signalling

1 LED (green) for module status (RDY); 1 LED per channel (green) for channel status (IN1 to IN2)

Height

18.4 mm

Width

125 mm

Depth

65.1 mm

Product weight

0.112 kg

IP degree of protection

IP20

Marking

CE

Product certifications

UL; FM Class 1 Division 2; CSA

Standards

EN/IEC 61131-2 type 1

Ambient air temperature for operation

0…60 °C (without derating)

Ambient air temperature for storage

-40…85 °C without derating

Relative humidity

95 % at 60 °C without condensation

Operating altitude

<= 2000 m

Pollution degree

2

Vibration resistance

3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail; +/- 3.5 mm (f = 10…58 Hz)

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Number of Units in Package 1

1

Number of Units in Package 2

28

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

AC/DC

Number of digital inputs

6

Digital inputs configurable

No

Digital outputs configurable

No

Input current at signal 1

4.5 mA

Permitted voltage at input

-3–30 V

Type of voltage (input voltage)

AC/DC

Type of digital output

None

Type of output voltage

AC/DC

Short-circuit protection, outputs available

No

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Screw-/spring clamp connection

Time delay at signal change

5.25–5.75 ms

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
