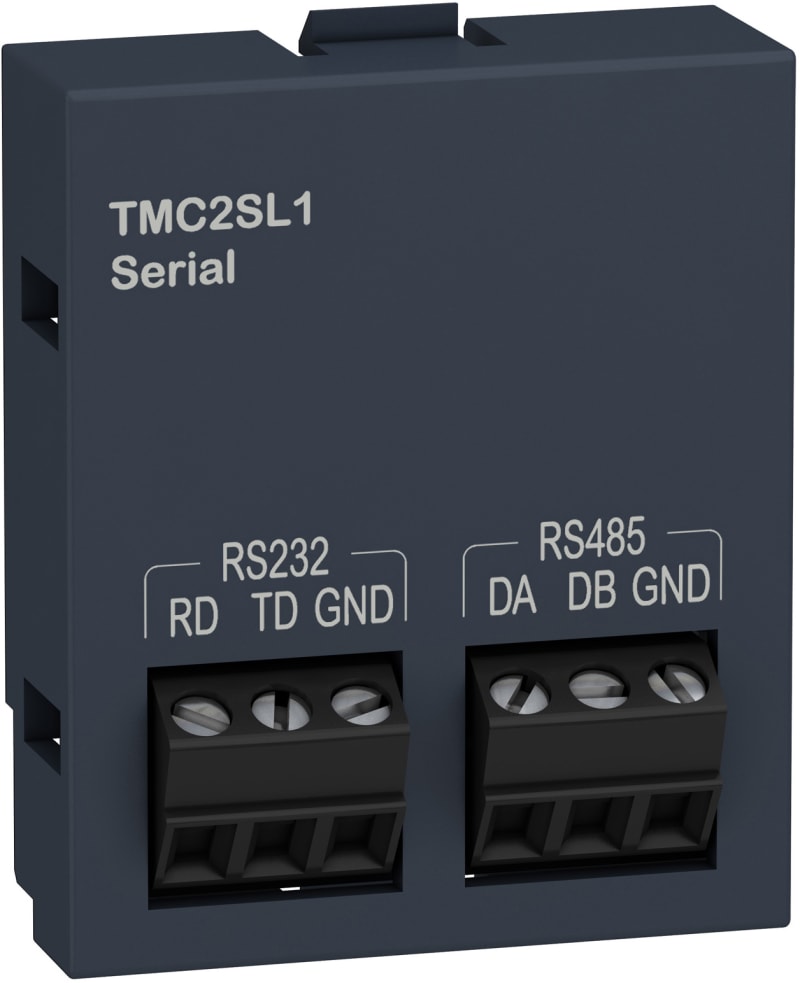

Schneider Electric Serial line cartridge, Modicon M221, 1 communication extension TMC2SL1

Schneider Electric TMC2SL1 Accessories Modicon PLS - M221 cassette - Serielinje communication.

Manufacturer part number (MPN)

TMC2SL1 EAN / GTIN: 3606480649141 Sales unit: pcs Package quantity: 75 pcs Range of product: Modicon M221 Product or component type: Serial line cartridge Product compatibility: Modicon M221C Integrated connection type: Non isolated serial link - screw terminal block for RS232; Non isolated serial link - screw terminal block for RS485 Transmission rate: 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485; 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 Communication port protocol: Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network Insulation: Non-insulated between lines and internal logic Height: 41 mm Depth: 15 mm Width: 35 mm Product weight: 0.015 kg Number of Units in Package 1: 1 Number of Units in Package 2: 75 Number of Units in Package 3: 2400 Country of origin: CN Warranty (in months): 18 Power consumption: 1.1 W Certified for UL hazardous location division 1: No Certified for UL hazardous location division 2: No Certified for UL hazardous location group A (acetylene): No Certified for UL hazardous location group B (hydrogen): No Certified for UL hazardous location group C (ethylene): No Certified for UL hazardous location group D (propane): No Certified for UL hazardous location group E (metal dusts): No Certified for UL hazardous location class I: No Certified for UL hazardous location class II: No Certified for UL hazardous location class III: No Supporting protocol for EtherCAT: No Number of HW-interfaces RS-232: 1 Number of HW-interfaces RS-485: 1 With optical interface: No Supporting protocol for TCP/IP: No Supporting protocol for PROFIBUS: No Supporting protocol for CAN: No Supporting protocol for INTERBUS: No Supporting protocol for ASI: No Supporting protocol for KNX: No Supporting protocol for Modbus: Yes Supporting protocol for Data-Highway: No Supporting protocol for DeviceNet: No Supporting protocol for SUCONET: No Supporting protocol for LON: No Supporting protocol for PROFINET IO: No Supporting protocol for PROFINET CBA: No Supporting protocol for SERCOS: No Supporting protocol for Foundation Fieldbus: No Supporting protocol for EtherNet/IP: No Supporting protocol for AS-Interface Safety at Work: No Supporting protocol for DeviceNet Safety: No Supporting protocol for INTERBUS-Safety: No Supporting protocol for PROFIsafe: No Supporting protocol for SafetyBUS p: No Supporting protocol for other bus systems: No Radio standard Bluetooth: No Radio standard WLAN 802.11: No Radio standard GPRS: No Radio standard GSM: No Mobile communications standard 3G (UMTS): No IO link master: No Redundancy: No Type of data transmission: Serial With potential separation: No SIL according to IEC 61508: None Suitable for safety functions: No Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): No Explosion safety category for gas: None Explosion safety category for dust: None

HS Code

8536.90

• EAN 3606480649141
• SAP 1000601533
• Code 8233081
