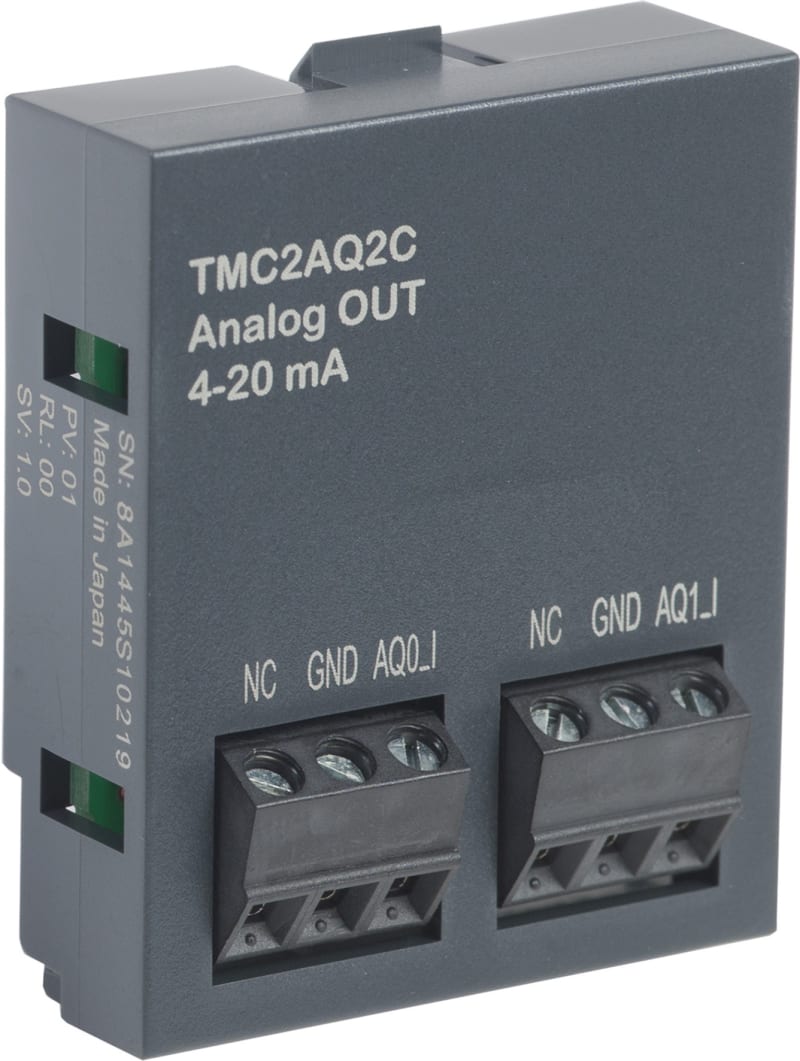

Schneider Electric Analogue Output Cartridge, Modicon M221, 2 Analogue Current Outputs

Schneider Electric TMC2AQ2C is a Modicon accessory — an M221 cartridge with 2 analogue current outputs for I/O extension.

Manufacturer part number (MPN)

TMC2AQ2C EAN / GTIN: 3606480649097 Sales unit: pcs Package quantity: 75 pcs Range of product: Modicon M221 Product or component type: Analogue output cartridge Product compatibility: Modicon M221C Analogue output number: 2 Analogue output type: Current: 4...20 mA Analogue output resolution: 12 bits LSB value: 3.91 µA 4...20 mA current load type: Resistive Load impedance ohmic: <= 500 Ohm Conversion time: 20 ms Stabilisation time: 40 ms Absolute accuracy error: +/- 1 % of full scale; +/- 0.3 % of full scale at 25 °C Temperature drift: +/- 0.02 %FS/°C Repeat accuracy: +/- 0.4 %FS Non-linearity: +/- 0.01 %FS Cross talk: <= 1 LSB Type of cable: Twisted shielded pairs cable Electrical connection: 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs Maximum cable distance between devices: Twisted shielded pairs cable: <30 m for output Insulation: Non-insulated between analogue output and internal logic Height: 41 mm Depth: 15 mm Width: 35 mm Product weight: 0.015 kg Immunity to microbreaks: 10 ms Number of Units in Package 1: 1 Number of Units in Package 2: 75 Number of Units in Package 3: 2400 Country of origin: JP Warranty (in months): 18 Power consumption: 1.1 W Number of analogue outputs: 2 Analogue inputs configurable: No Analogue outputs configurable: No Input, current: No Input, voltage: No Input, resistor: No Input, resistance thermometer: No Input, thermocouple: No Input signal, configurable: No Resolution of the analogue inputs: 12 Bit Output, current: Yes Output, voltage: No Output signal configurable: No Resolution of the analogue outputs: 12 Bit Type of electric connection: Screw connection Suitable for safety functions: No SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): No Explosion safety category for gas: None Explosion safety category for dust: None

HS Code

8536.90

• EAN 3606480649097
• SAP 1000601527
• Code 8718189
