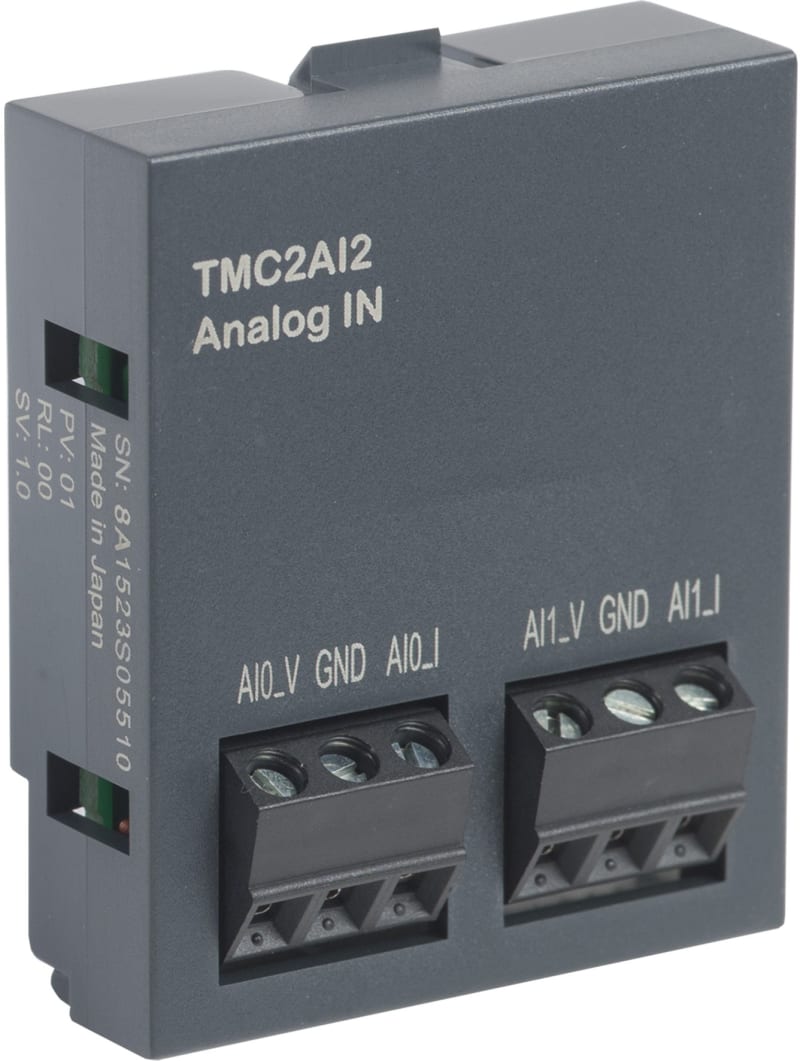

Schneider Electric TMC2AI2 Analogue Input Cartridge Modicon M221, 2 inputs

Schneider Electric TMC2AI2 Accessories Modicon PLC - M221 cassette - 2 analogue inputs, current.

Manufacturer part number (MPN)

TMC2AI2 EAN / GTIN: 3606480649080 Sales unit: pcs Package quantity: 75 pcs Range of product: Modicon M221 Product or component type: Analogue input cartridge Product compatibility: Modicon M221C Analogue input number: 2 Analogue input type: current 4...20 mA; current 0...20 mA; voltage 0...10 V Analogue input resolution: 12 bits LSB value: 2.44 mV 0...10 Vvoltage; 4.88 µA 0...20 mAcurrent; 3.91 µA 4...20 mAcurrent Conversion time: 20 ms Sampling duration: 10 ms Absolute accuracy error: +/- 0.1 % of full scale at 25 °C; +/- 1 % of full scale Temperature drift: +/- 0.02 %FS/°C Repeat accuracy: +/- 0.5 %FS Non-linearity: +/- 0.01 %FS Cross talk: <= 1 LSB Type of cable: Twisted shielded pairs cable Electrical connection: 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs Maximum cable distance between devices: Twisted shielded pairs cable: <30 m for input Insulation: Non-insulated between analogue input and internal logic Height: 41 mm Depth: 15 mm Width: 35 mm Product weight: 0.015 kg Permissible continuous overload: 13 V, analogue input type: voltage; 40 mA, analogue input type: current Input impedance: = 1 MOhm voltage Immunity to microbreaks: 10 ms Number of Units in Package 1: 1 Number of Units in Package 2: 75 Number of Units in Package 3: 2400 Country of origin: JP Warranty (in months): 18 Power consumption: 1.1 W Number of analogue inputs: 2 Analogue inputs configurable: No Analogue outputs configurable: No Input, current: Yes Input, voltage: Yes Input, resistor: No Input, resistance thermometer: No Input, thermocouple: No Input signal, configurable: No Resolution of the analogue inputs: 12 Bit Output, current: No Output, voltage: No Output signal configurable: No Resolution of the analogue outputs: 12 Bit Type of electric connection: Screw connection Suitable for safety functions: No SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): No Explosion safety category for gas: None Explosion safety category for dust: None

HS Code

8538.90

• EAN 3606480649080
• SAP 1000601526
• Code 8162837
