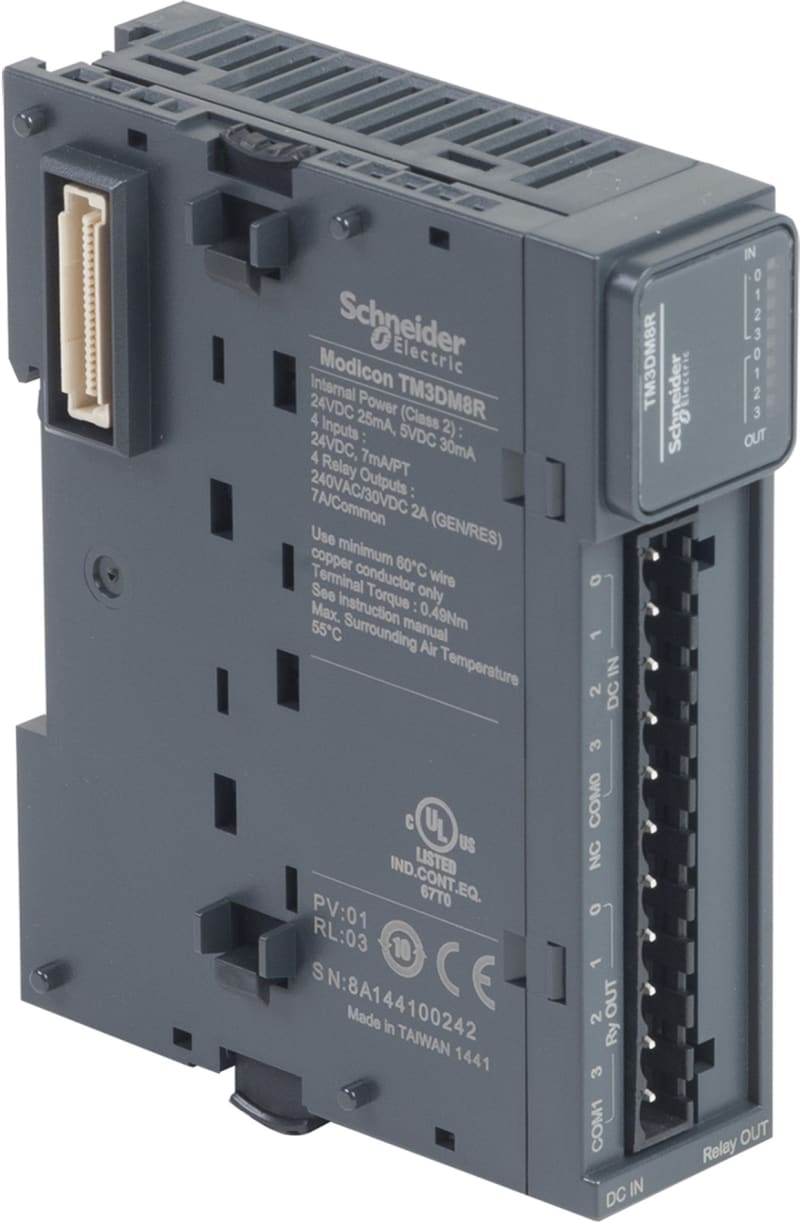

Schneider Electric Modicon TM3 - 8 IO (4 inputs, 4 relay outputs, screw) 24VDC TM3DM8R

Schneider Electric TM3DM8R Accessories Modicon PLS - IO extension - 8 IO relay.

Manufacturer part number (MPN)

TM3DM8R EAN / GTIN: 3606480611520 HS code: 8536.90 Sales unit: pcs Package quantity: 42 pcs Range of product: Modicon TM3 Product or component type: Discrete I/O module Range compatibility: Modicon M241; Modicon M251; Modicon M221; Modicon M262 Device application: Industrial application Discrete input number: 4 Discrete input logic: Sink or source (positive/negative) Discrete output number: 4 Discrete output logic: Positive or negative Discrete output voltage: 24 V AC for relay outputs; 240 V DC for relay outputs Discrete input compatibility: 4 conforming to IEC 61131-2 Type 1 Discrete input current: 7 mA Voltage state 1 guaranteed: Input: 15...28.8 V DC Voltage state 0 guaranteed: 0...5 V input Current state 1 guaranteed: >= 2.5 mA input Current state 0 guaranteed: <= 1 mA input Input impedance: 3.4 kOhm Response time on input: 4 ms (maximum (turn on)); 4 ms (maximum (turn off)) Discrete output current: 2000 mA relay output minimum switching current: 10 mA 5 V DC Response time on output: <= 10 ms maximum (turn on); <= 5 ms maximum (turn off) Mechanical durability: 20000000 cycles Safety reliability data: MTBF = 310 years 40 °C Power supply type: Electronic powered by internal bus Typical current consumption: 5 mA at 5 V DC; 0 mA at 24 V DC; 65 mA at 5 V DC Electrical connection: 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs and outputs Maximum cable distance between devices: Unshielded cable: <30 m for regular input Local signalling: 1 LED per channel (green) for I/O state Housing colour: Grey AWG gauge: 0.2…2.5 mm² / 24 AWG...14 AWG with solid cable Mounting support: Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit Height: 90 mm Width: 27.4 mm Depth: 84.6 mm Product weight: 0.95 kg IP degree of protection: IP20 Protective treatment: None Marking: CE Product certifications: CE; CULus; UKCA; RCM; EAC; CULus HazLoc Standards: IEC 61131-2 Ambient air temperature for operation: -10…35 °C (vertical installation); -10…55 °C (horizontal installation) Ambient air temperature for storage: -25…70 °C Relative humidity: 10…95 % without condensation for operation; 10…95 % without condensation for storage Operating altitude: 0...2000 m Pollution degree: 2 Vibration resistance: 3.5 mm (f = 5…8.4 Hz) on DIN rail; 3 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on panel mounting; 3 gn (f = 8.4…150 Hz) on panel mounting Shock resistance: 15 gn for 11 ms Country of origin: TW Warranty (in months): 18

HS Code

8536.90

• EAN 3606480611520
• SAP 1000601503
• Code 8232911
