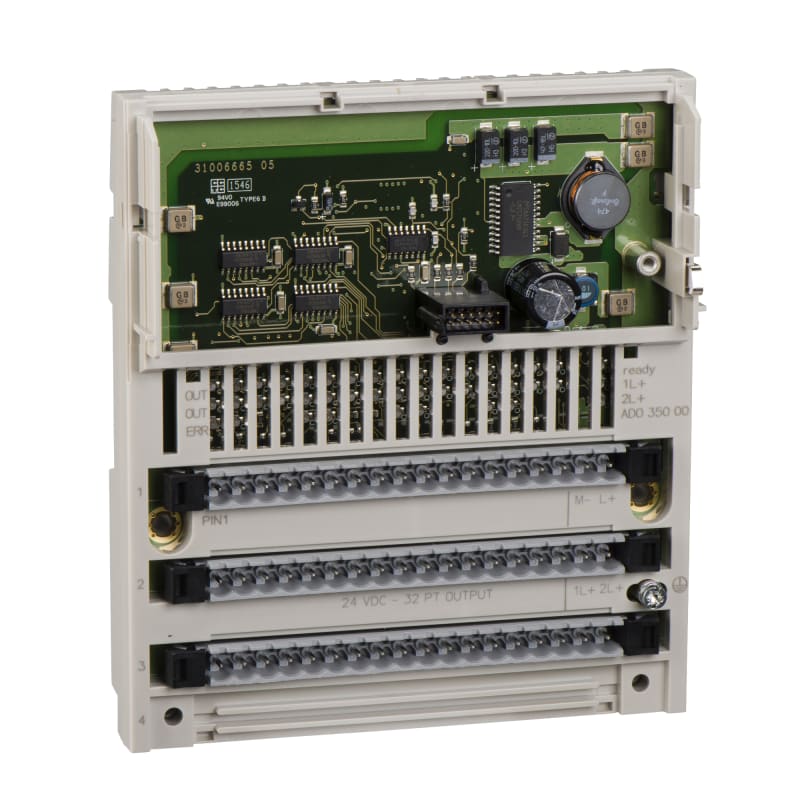

Schneider Electric discrete output module Modicon Momentum - 32 O solid state 170ADO35000
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 170ADO35000 32 out trans 0,5A.
Technical Specifications
- Manufacturer part number (MPN)
- 170ADO35000
- EAN / GTIN
- 3595861147676
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Modicon Momentum automation platform
- Product or component type
- Discrete output base DC
- Group of channels
- 2 groups of 16 outputs
- Current per channel
- 0.5 A
- Discrete output number
- 32
- Output overload protection
- Outputs electronically protected
- Terminals description PLC n°1
- (15)OUT_DIS#15; TB; (2)OUT_DIS#2; (8)OUT_DIS#8; (L+)PW_POS; (16)OUT_DIS#16; (7)OUT_DIS#7; (M-)PW_NEG; (12)OUT_DIS#12; (9)OUT_DIS#9; (11)OUT_DIS#11; (14)OUT_DIS#14; (1)OUT_DIS#1; (5)OUT_DIS#5; (10)OUT_DIS#10; (13)OUT_DIS#13; (3)OUT_DIS#3; (4)OUT_DIS#4; (6)OUT_DIS#6
- Terminals description PLC n°2
- (6)OUT_DIS#22; (4)OUT_DIS#20; (7)OUT_DIS#23; (2L+)PW_POS; (3)OUT_DIS#19; TB_1; (8)OUT_DIS#24; (10)OUT_DIS#26; (12)OUT_DIS#28; (2)OUT_DIS#18; (13)OUT_DIS#29; (16)IN_DIS#32; (11)OUT_DIS#27; (14)OUT_DIS#30; (15)OUT_DIS#31; (5)OUT_DIS#21; (9)OUT_DIS#25; (1)OUT_DIS#17; (1L+)PW_POS
- Local signalling
- 32 LEDs for channel status
- Height
- 141.5 mm
- Width
- 125 mm
- Depth
- 47.5 mm
- Product weight
- 0.21 kg
- Protective treatment
- TC
- Marking
- CE
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- ID
- Warranty (in months)
- 18
- Supply voltage DC
- 24 V
- Voltage type (supply voltage)
- DC
- Number of digital outputs
- 32
- Digital inputs configurable
- No
- Digital outputs configurable
- No
- Type of voltage (input voltage)
- DC
- Type of digital output
- Transistor
- Output current
- 0.5 A
- Permitted voltage at output
- 20–30 V
- Type of output voltage
- DC
- Short-circuit protection, outputs available
- Yes
- Redundancy
- No
- Time delay at signal change
- 0.1 ms
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3595861147676
- SAP 1000253788
- Code 81134110
