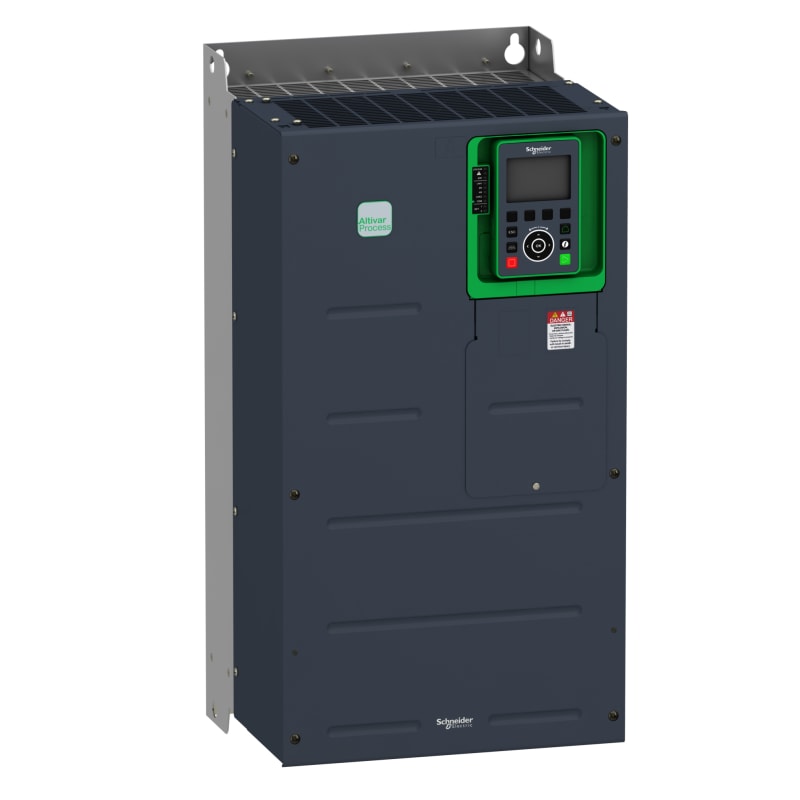

ATV930 IP00 75kW 690V DNV
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ATV930D75Y6428 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Variable-frequency drive for pump & ventilation IP00 75kW 690V marine certificat.
Technical Specifications
- Manufacturer part number (MPN)
- ATV930D75Y6428
- EAN / GTIN
- 3606481715012
- HS code
- 8504.40
- Sales unit
- pcs
- Voltage
- 690 V
- IP rating
- IP00
- Power
- 75 kW
- Width
- 331 mm
- Height
- 630 mm
- Depth
- 297 mm
- With control element
- Yes
- Number of digital inputs
- 8
- Number of digital outputs
- 1
- Number of analogue inputs
- 3
- Number of analogue outputs
- 2
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-485
- 2
- With optical interface
- Yes
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- Degree of protection (IP)
- IP00
- With PC connection
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 500–690 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- No
- Type of converter
- U converter
- Number of phases output
- 2
- Number of phases input
- 3
- Integrated breaking resistance
- No
- Application in industrial area permitted
- No
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 30000 Hz
- Max. output at linear load at rated output voltage
- 75 kW
- Max. output at quadratic load at rated output voltage
- 75 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 30 V
- Nominal output current I2N
- 83 A
- Supporting protocol for BACnet
- No
- Country of origin
- India
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606481715012
- SAP 1200722576
- Code 83857024
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric SE Back-UPS, 750VA, Tower, 230V, 4 x CEE 7/7 Schuko outlets, AVR BXS750MI-GR
Schneider Electric
Schneider Electric LVCT - 3-IN-1 solid core CT RJ45 - 35mm entraxe - 125A : 0.333V output METSECTV35013
Schneider Electric
Transparent door PrismaG IP55 33MOD B850
LVS08340
Schneider Electric
Schneider Electric MN undervoltage release, diagnostics, Masterpact MTZ1/2/3, 48 VAC 50/60 Hz, 48/60 VDC, spare part LV836669SP
Schneider Electric
Push-button, flush, for LED, blue, raised (ZB5FH63)
Schneider Electric
HIGH Intensity Flashing LED BLUE
XVUC66
Schneider Electric
Passiva filter 10A 460V 60Hz
VW3A46159
Schneider Electric
ISFL250-630 CT150/5-KL1-2,5VA (LV480885)
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ATV930D75Y6428?
- ATV930D75Y6428 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ATV930D75Y6428.
- What is the HS code for ATV930D75Y6428?
- The customs tariff (HS) code for ATV930D75Y6428 is 8504.40.
- Who manufactures ATV930D75Y6428?
- ATV930D75Y6428 is a Schneider Electric product in the Drives & Controllers range.
- Is a datasheet available for ATV930D75Y6428?
- Yes — the ATV930D75Y6428 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ATV930D75Y6428?
- The minimum order quantity is 1.
- Is ATV930D75Y6428 available?
- Yes — ATV930D75Y6428 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
