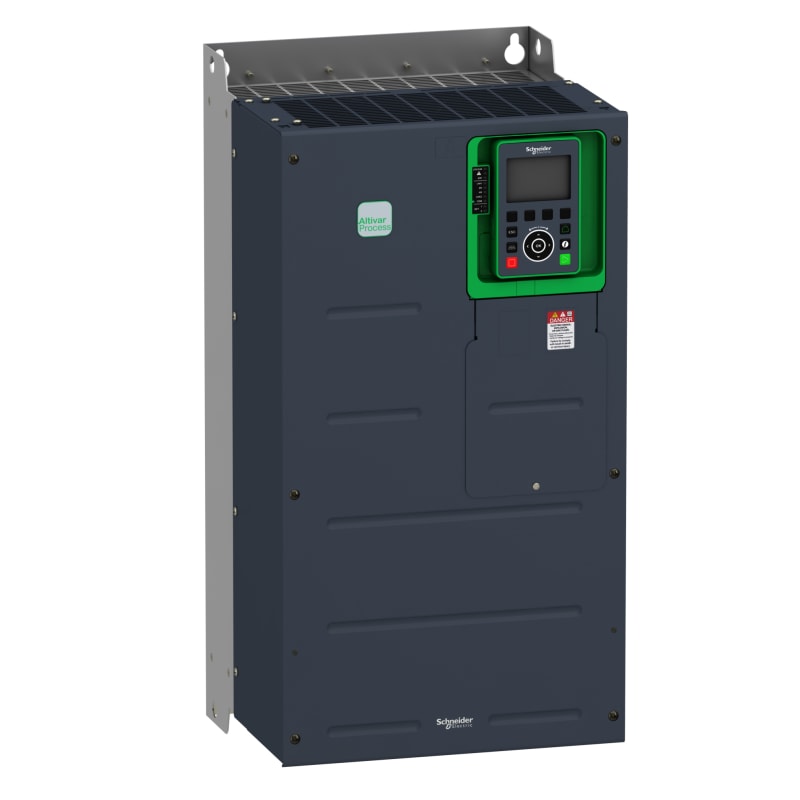

ATV930 IP00 55kW 690V DNV
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ATV930D55Y6428 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Variable-frequency drive for pump & ventilation IP00 55kW 690V marine sertificat.
Technical Specifications
- Manufacturer part number (MPN)
- ATV930D55Y6428
- EAN / GTIN
- 3606481715005
- HS code
- 8504.40
- Sales unit
- pcs
- Voltage
- 690 V
- IP rating
- IP00
- Power
- 55 kW
- Width
- 331 mm
- Height
- 630 mm
- Depth
- 297 mm
- Number of digital inputs
- 8
- Number of digital outputs
- 1
- Number of analogue inputs
- 3
- Number of analogue outputs
- 2
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-485
- 2
- Degree of protection (IP)
- IP00
- Mains frequency
- 50/60 Hz
- Type of converter
- U converter
- Number of phases output
- 2
- Number of phases input
- 3
- Max. output frequency
- 30000 Hz
- Max. output at linear load at rated output voltage
- 55 kW
- Max. output at quadratic load at rated output voltage
- 55 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 30 V
- Nominal output current I2N
- 66 A
- Country of origin
- India
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606481715005
- SAP 1200722575
- Code 83857018
Product Documentation
More from Schneider Electric
Schneider Electric
Joint cover 100A (KNT100ZJ4)
Schneider Electric
Schneider Electric variable speed drive ATV212 - 15kW - 20hp - 480V - 3PH - EMC class C1 - IP55 ATV212WD15N4C
Schneider Electric
Schneider Electric Bottom support, Canalis KS, 100A to 250A, vertical installation, maximum load 680kg KSB250ZV1
Schneider Electric
Schneider Electric PanelSeT S3DEX (ATEX certified) H300XW200XD150 .IP66 IK10 RAL7035. NSYS3DEX3215
Schneider Electric
Passiva filter 150A 400V 50Hz (VW3A46131)
Schneider Electric
Schneider Electric communication cable, breaker ULP cord, 0.35 m length LV434195
Schneider Electric
Schneider Electric floor standing drive, ATV950, 200kW, 400/440V, w/o braking unit, IP54 ATV950C20N4F
Schneider Electric
Schneider Electric Trip unit MicroLogic 2.2G, ComPacT NSX100/160/250, 4 poles, electronic basic protections, generator protection, 40A C1042G040
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ATV930D55Y6428?
- ATV930D55Y6428 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ATV930D55Y6428.
- What is the HS code for ATV930D55Y6428?
- The customs tariff (HS) code for ATV930D55Y6428 is 8504.40.
- Who manufactures ATV930D55Y6428?
- ATV930D55Y6428 is a Schneider Electric product in the Drives & Controllers range.
- Is a datasheet available for ATV930D55Y6428?
- Yes — the ATV930D55Y6428 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ATV930D55Y6428?
- The minimum order quantity is 1.
- Is ATV930D55Y6428 available?
- Yes — ATV930D55Y6428 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
