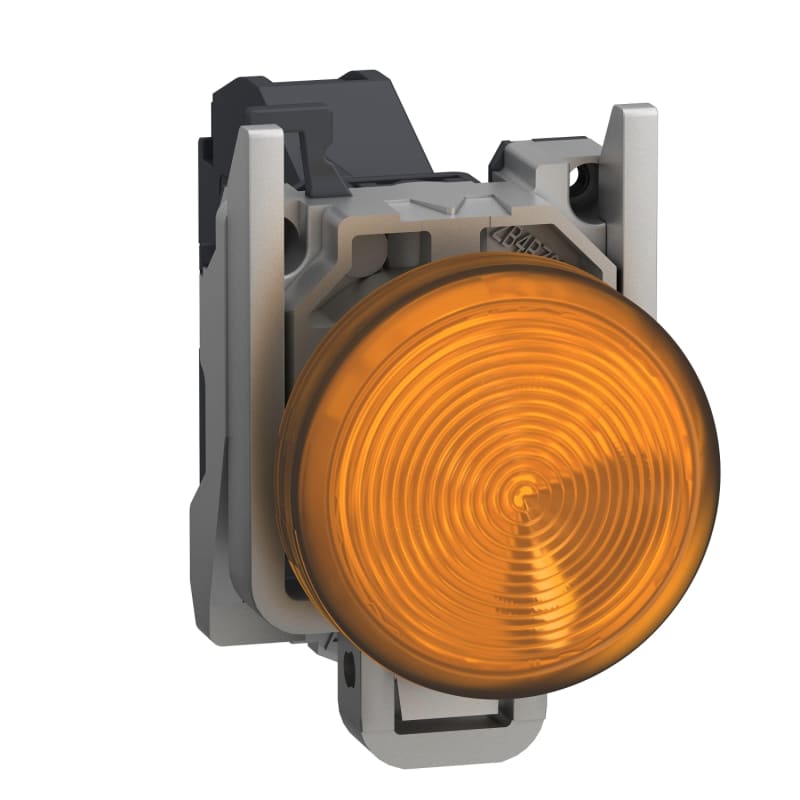

Schneider Electric Complete pilot light, Harmony XB4 - ATEX D, orange, integral LED, 24...254V XB4BVBM5GEX
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XB4BVBM5GEX — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator.
Technical Specifications
- Manufacturer part number (MPN)
- XB4BVBM5GEX
- EAN / GTIN
- 3606489486099
- Sales unit
- pcs
- Voltage
- 24-240 V
- Range of product
- Harmony XB4
- Product or component type
- Complete pilot light
- Device short name
- XB4
- Bezel material
- Chromium plated metal
- Fixing collar material
- Zamak
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Dust zone
- Zone 21 - 22
- Gas zone
- Zone 1 - 2
- Operator additional information
- With plain lens
- Width
- 46.2 mm
- Height
- 30 mm
- Depth
- 69 mm
- Product weight
- 0.083 kg
- Device mounting
- Fixing hole - diameter: 22.5 mm +/- 0.2 mm conforming to IEC 60947-1
- Fixing center
- >= 30 x 40 mm (support panel) - thickness: 1…6 mm
- Embedding depth
- 58 mm
- Marking
- Ex tb IIIC Db; II 2 GD; Ex eb mb IIC Gb
- Shape of signaling unit head
- Round
- Cap/operator or lens colour
- Orange
- Connections - terminals
- Screw clamp terminals, 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 2.5 mm² without cable end conforming to IEC 60947-1
- Tightening torque
- 0.8…1.2 N.m conforming to IEC 60947-1
- Signalling type
- Steady
- Light source
- Integral LED
- Light source colour
- White
- [Us] rated supply voltage
- 24...254 V AC/DC
- Service life
- 100000 h
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -20…75 °C
- Overvoltage category
- I conforming to IEC 60536
- IP degree of protection
- IP65 conforming to IEC 60529
- Standards
- IEC 60079-0:2009; IEC 60079-7:2009; EN/IEC 60079-18:2009; IEC 60079-31:2009; UL 60079-0; UL 60079-18; UL 60079-31; ANSI/ISA 12.12.01; CSA C22.2 No 213
- Product certifications
- INERIS 04ATEX9003U
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Voltage type
- AC/DC
- Colour lens
- Orange
- Number of indicator lights
- 1
- Rated operating voltage Ue
- 24–240 V
- Colour front ring
- Black
- Type of electric connection
- Spring clamp connection
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Material front ring
- Metal
- With front ring
- Yes
- Construction type lens
- Round
- Type of lamp socket
- LED
- Type of lens
- Flat
- Country of origin
- France
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606489486099
- SAP 1200808586
- Code 84002166
Product Documentation
More from Schneider Electric
Schneider Electric

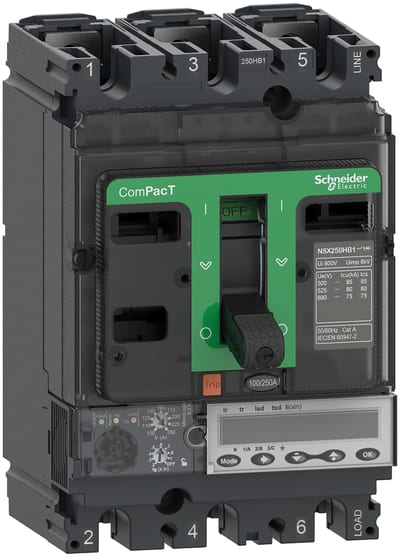

Schneider Electric Circuit breaker, ComPacT NSX250HB2, 100KA/690VAC, 3 poles, MicroLogic 6.2E trip unit 160A C25W36E160
Schneider Electric

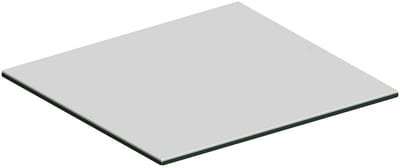

SEALED Gland Plate 800X600 SM
NSYSMEC86
Schneider Electric

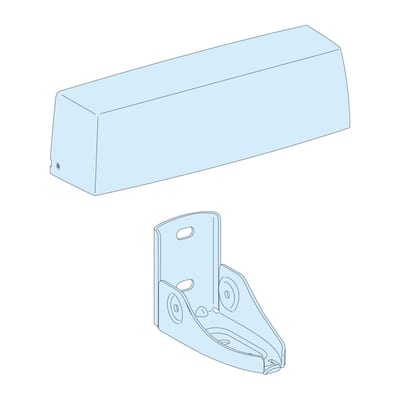

Cable Trunking Adapter for PrismaSeT G
LVS08824
Schneider Electric

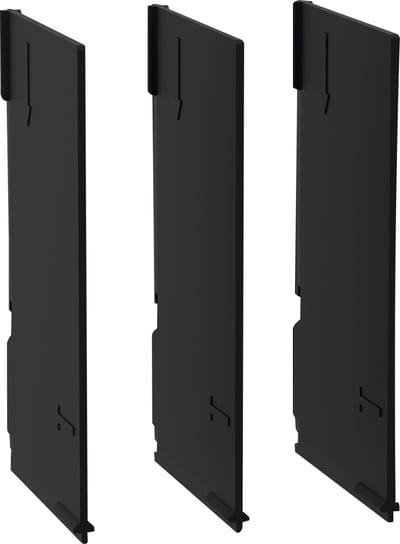

Faseskillere for TA25 and TA63-3 pcs
TPSISO65
Schneider Electric

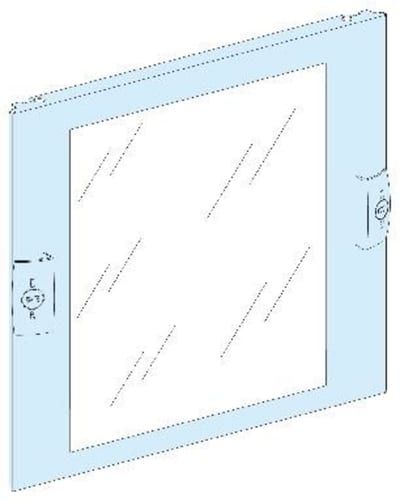

Transp. Front plate 9M Cable Compartment Prisma G/P
LVS03354
Schneider Electric

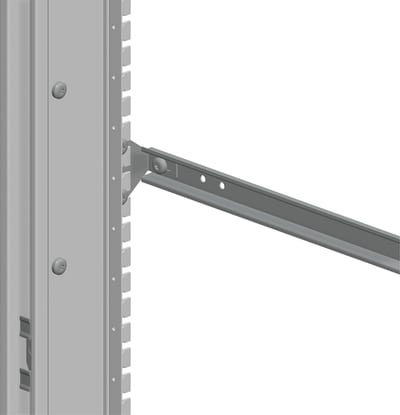

Modular DIN35 low 600mm
NSYMFSC60
Schneider Electric

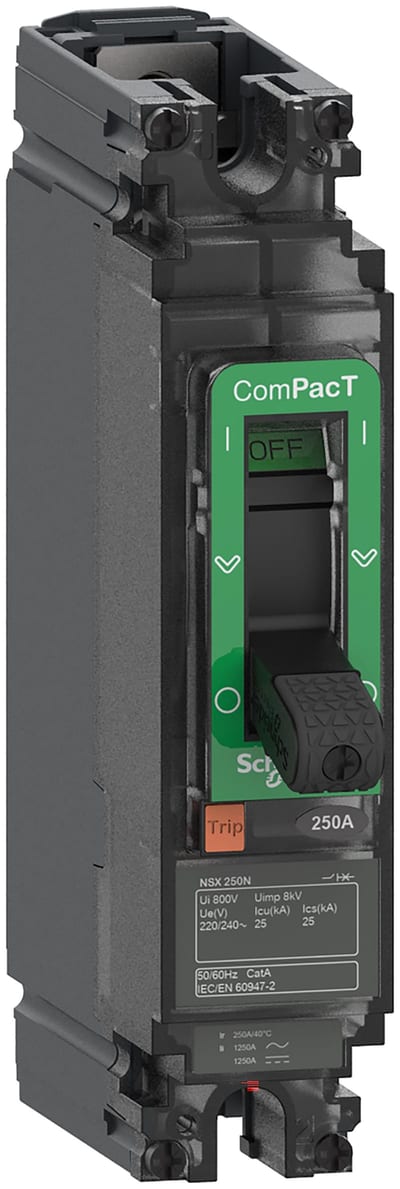

Schneider Electric Circuit breaker, ComPacT NSX100M AC/DC, 40KA/240VAC, 1 pole, TMD trip unit 100A C10M1TM100
Schneider Electric

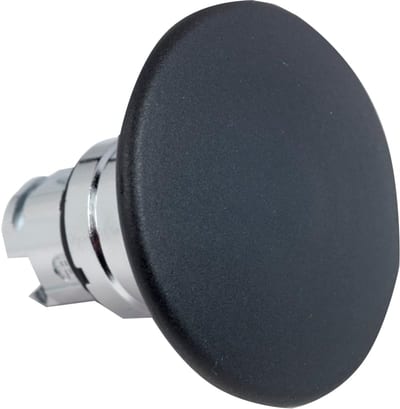

SOPP Push-Button Head Black Ø60mm (ZB4BR2)
