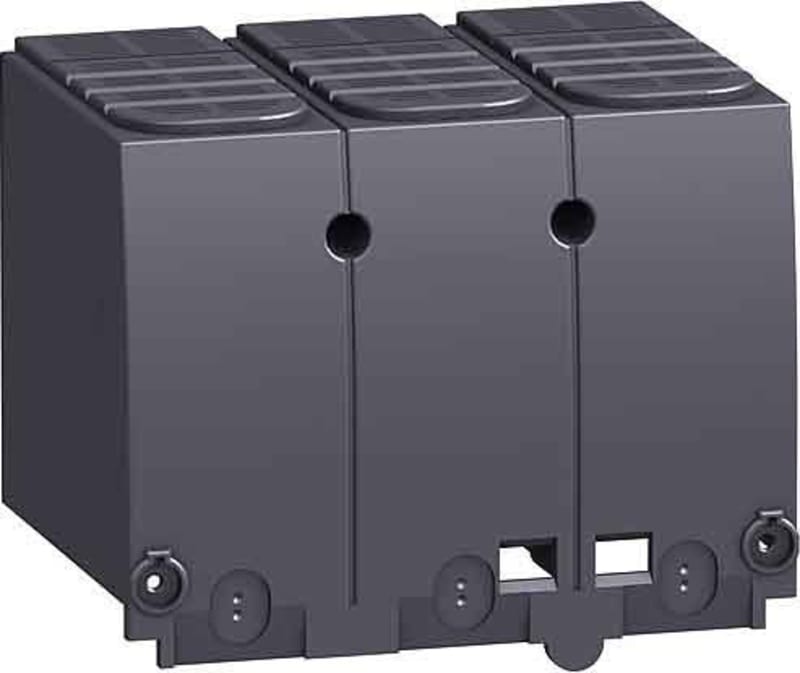

Schneider Electric LV429517 — Long terminal shield, NSX100/160/250, pitch 35 mm, IP40, 3 poles

Schneider Electric LV429517 is a Long terminal shield for the ComPacT NSX100/160/250 (and EasyPact CVS 100/160/250) moulded-case circuit-breaker range, for 3-pole devices at 35 mm connection pitch. It shields the power terminals against direct contact and establishes the clearance distance required by IEC 60947-2, and may be fitted upstream and downstream of fixed, plug-in or withdrawable devices. Degree of protection IP40, mechanical impact protection IK07. RoHS 2011/65/EU and REACH compliant; CE marked.

Type

Long terminal shield (insulation accessory)

Compatible devices

ComPacT NSX100/160/250 (and EasyPact CVS 100/160/250)

Poles

3

Connection pitch

35 mm

Degree of protection

IP40

Mechanical impact protection

IK07

Function

protects against direct contact with the power circuit; provides the clearance distance required by IEC 60947-2; may be fitted upstream and downstream of fixed, plug-in or withdrawable devices

Standard

IEC 60947-2 (circuit-breaker accessory)

Compliance

RoHS 2011/65/EU, REACH; CE marked

Manufacturer part number (MPN)

LV429517

EAN / GTIN

3606480019913

HS code

8538.90

Product or component type

Long terminal shield

Range compatibility

ComPacT ComPacT NSX100; ComPacT ComPacT NSX160; ComPacT ComPacT NSX250; ComPact ComPact NSX100; ComPact ComPact NSX160; ComPact ComPact NSX250; ComPacT ComPacT NSX DC NSX100 DC; ComPacT ComPacT NSX DC NSX160 DC; ComPacT ComPacT NSX DC NSX250 DC; ComPact Compact NSX100 DC; ComPact Compact NSX160 DC; ComPact Compact NSX250 DC; EasyPact EasyPact CVS100; EasyPact EasyPact CVS160; EasyPact EasyPact CVS250

Accessory / separate part type

Insulation accessories

Poles description

3P

Quantity per set

1

IP degree of protection

IP40 conforming to IEC 60529

Product compatibility

Circuit-breaker; Plug-in base

Country of origin

FR

Warranty (in months)

18

Standard

IEC 60947-2

HS Code

8538.90

• EAN 3606480019913
• SAP 1000092351
• Code 8906526
