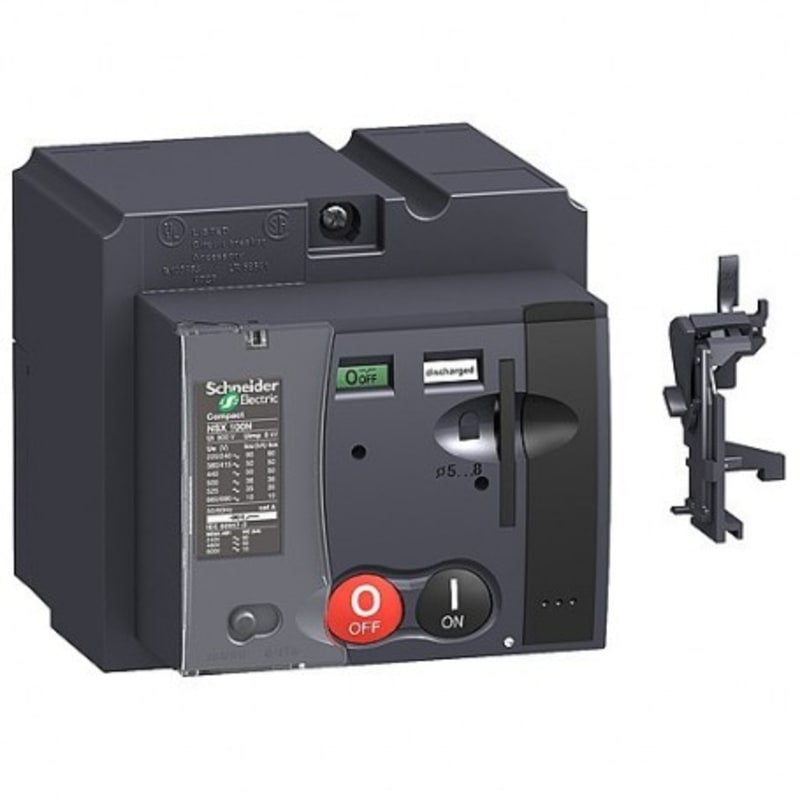

Schneider Electric LV429436 standard motor mechanism module MT100/160, ComPact NSX100/160, 24/30 VDC
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric LV429436 standard motor mechanism module MT100/160, ComPact NSX100/160, 24/30 VDC is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Package quantity: 15 pcs; Device short name: MT250; Product or component type: Motor mechanism; Device application: Automatic spring charging; Control type: Standard.
Technical Specifications
- Manufacturer part number (MPN)
- LV429436
- EAN / GTIN
- 3606480020025
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Device short name
- MT250
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NSX100; ComPacT NSX160; ComPacT NSX100 DC; ComPacT NSX160 DC
- Control type
- Standard
- [Uc] control circuit voltage
- 24...30 V DC
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 160 A; 100 A
- Control signal type
- Maintained; Impulse
- circuit breaker response time
- < 700 ms open; < 80 ms closed
- Maximum operating frequency
- 4 per minute
- Maximum power consumption in W
- 500 W - closing; 500 W - opening
- Provided equipment
- SDE adaptor
- Locking options description
- Padlocking in OFF position; 1 to 3 padlocks Ø 5 to Ø 8
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 12.000 cm
- Package 1 Width
- 10.700 cm
- Package 1 Length
- 17.000 cm
- Package 1 Weight
- 1.402 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 15
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 21.724 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- Rated control supply voltage DC
- 24–30 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8501.20
Cross References
- EAN 3606480020025
- SAP 1000092320
- Code 8906430
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric pilot light, Harmony XB5, grey plastic, blue, 22mm, universal LED, plain lens, 24V AC DC XB5AVB6
Schneider Electric
Schneider Electric LVS08882 HORIZONTAL COMBINATION STRIP W600 PRISMA G IP30
Schneider Electric
Schneider Electric ZB5AA432 red flush pushbutton head Ø22 spring return "O
Schneider Electric
Schneider Electric KSA250ED4208 STRAIGHT DISTRIBUTION LENGTH 2M 250 A
Schneider Electric
Schneider Electric NSYS3D81030P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 800X1000X300MM, IP66, IK10
Schneider Electric
Exxact 2*PV-Corner Box Antras
WDE003357
Schneider Electric
Schneider Electric Mureva Styl Intermediate Switch 10AX, Anthracite
MUR35023
Schneider Electric

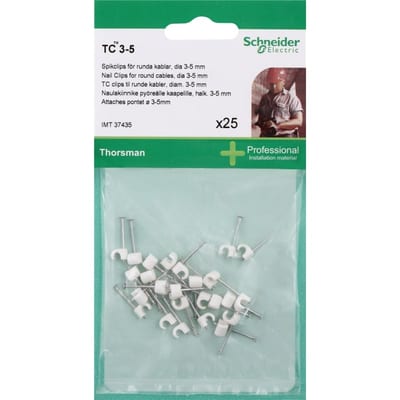

TC nail clip 3-5 white 25 pcs
