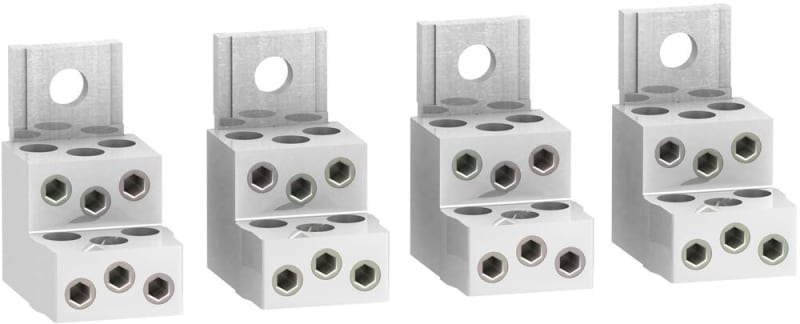

Schneider Electric LV429249 — Aluminium Bare Cable Connector, ComPacT NSX / EasyPact CVS, 6 cables 1.5–35 mm², 250 A (set of 4)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429249 is a set of 4 aluminium bare-cable connectors for the ComPacT NSX 100/160/250 and EasyPact CVS 100/160/250 moulded-case circuit-breaker range. Each connector receives 6 cables of bare copper or aluminium conductor from 1.5 mm² to 35 mm² directly, without a separate lug, and carries the device rated current of up to 250 A. The connectors snap onto the breaker output terminals or onto terminal extensions where they are secured by a clip. Supplied as a set of 4 — one connector per pole for a 4-pole device. Conforms to IEC 60947-2 as a circuit-breaker connection accessory. RoHS 2011/65/EU and REACH compliant; CE marked.
Technical Specifications
- Type
- Aluminium bare cable connector for moulded-case circuit breaker
- Compatible devices
- ComPacT NSX 100/160/250 and EasyPact CVS 100/160/250
- Conductor accepted
- bare copper or aluminium cable
- Cables per pole
- 6
- Conductor cross-section
- 1.5 mm² to 35 mm²
- Rated current
- up to 250 A
- Connector body material
- Aluminium
- Mounting
- snaps onto the device terminals or terminal extensions (secured by clip)
- Supplied as
- set of 4 (one connector per pole; 4-pole device)
- Standard
- IEC 60947-2 (circuit-breaker connection accessory)
- Compliance
- RoHS 2011/65/EU, REACH; CE marked
- Manufacturer part number (MPN)
- LV429249
- EAN / GTIN
- 3606480019340
- Sales unit
- set
- Package quantity
- 4 pcs
- HS code
- 8536.90
- Product or component type
- Bare cable connector
- Accessory / separate part category
- Connection accessory
- Range compatibility
- ComPacT ComPacT NSX100; ComPacT ComPacT NSX160; ComPacT ComPacT NSX250; ComPacT ComPacT NSX DC; ComPact Compact NSX100; ComPact Compact NSX160; ComPact Compact NSX250; ComPact Compact NSX100 DC; ComPact Compact NSX160 DC; ComPact Compact NSX250 DC; EasyPact EasyPact CVS100; EasyPact EasyPact CVS160; EasyPact EasyPact CVS250; ComPact Compact INS100...250; ComPact Compact INV100...250
- Poles description
- 4P
- Quantity per set
- Set of 4
- [In] rated current
- 250 A
- Conductor material
- Aluminium
- Connections - terminals
- Screw terminal6 cable(s) 1.5…35 mm²
- Warranty (in months)
- 18
Standards & Compliance
- Standard
- IEC 60947-2
- Material
- Aluminium
- HS Code
- 8536.90
Cross References
- EAN 3606480019340
- SAP 1000092224
