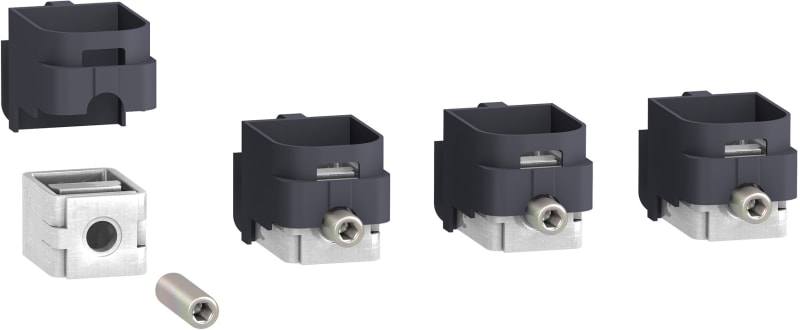

Schneider Electric LV429243 — Steel Bare Cable Connector, ComPacT NSX / EasyPact CVS, 1 cable 1.5–95 mm², 160 A (set of 4)

Schneider Electric LV429243 is a set of 4 steel bare-cable connectors for the ComPacT NSX 100/160 and EasyPact CVS 100/160 moulded-case circuit-breaker range. Each connector receives 1 cable of bare copper or aluminium conductor from 1.5 mm² to 95 mm² directly, without a separate lug, and carries the device rated current of up to 160 A. The connectors snap onto the breaker output terminals or onto terminal extensions where they are secured by a clip. Supplied as a set of 4 — one connector per pole for a 4-pole device. Conforms to IEC 60947-2 as a circuit-breaker connection accessory. RoHS 2011/65/EU and REACH compliant; CE marked.

Type

Steel bare cable connector for moulded-case circuit breaker

Compatible devices

ComPacT NSX 100/160 and EasyPact CVS 100/160

Conductor accepted

bare copper or aluminium cable

Cables per pole

1

Conductor cross-section

1.5 mm² to 95 mm²

Rated current

up to 160 A

Connector body material

Steel

Mounting

snaps onto the device terminals or terminal extensions (secured by clip)

Supplied as

set of 4 (one connector per pole; 4-pole device)

Standard

IEC 60947-2 (circuit-breaker connection accessory)

Compliance

RoHS 2011/65/EU, REACH; CE marked

Manufacturer part number (MPN)

LV429243

EAN / GTIN

3606480019326

Sales unit

set

Package quantity

70 pcs

HS code

8536.90

Product or component type

Bare cable connector

Accessory / separate part category

Connection accessory

Range compatibility

ComPacT ComPacT NSX100; ComPacT ComPacT NSX160; ComPacT ComPacT NSX DC; ComPact Compact NSX100; ComPact Compact NSX160; ComPact Compact NSX100 DC; ComPact Compact NSX160 DC; EasyPact EasyPact CVS100; EasyPact EasyPact CVS160; ComPact Compact INS100...250; ComPact Compact INV100...250

Poles description

4P

Quantity per set

Set of 4

[In] rated current

160 A

Conductor material

Steel

Connections - terminals

Screw terminal1 cable(s) 1.5…95 mm²

Warranty (in months)

18

Standard

IEC 60947-2

Material

Steel

HS Code

8536.90

• EAN 3606480019326
• SAP 1000092222
• Code 8903203
