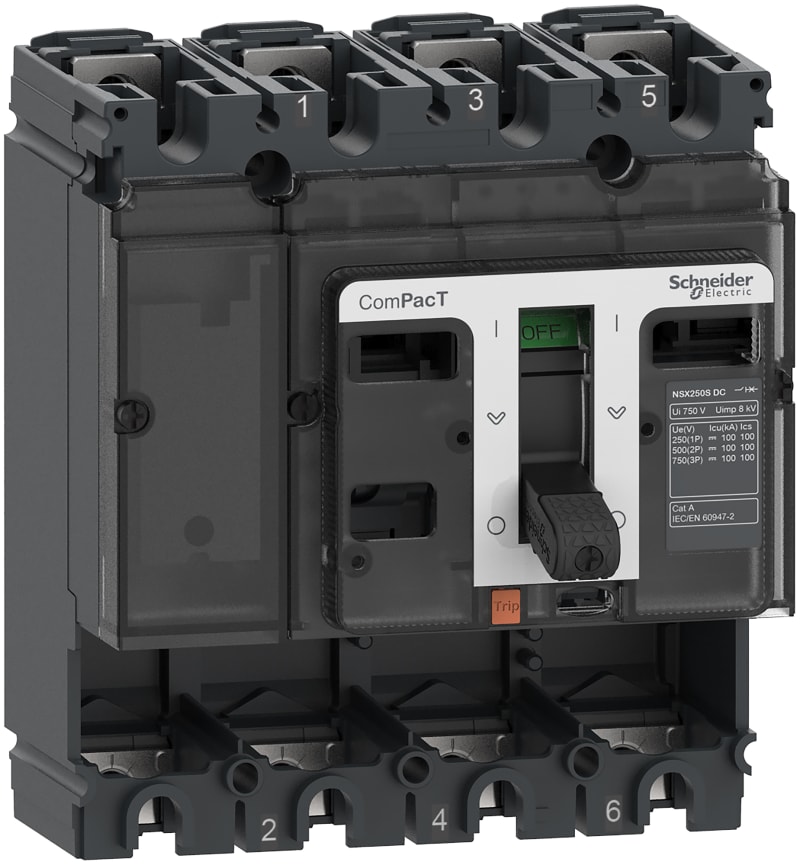

Schneider Electric Circuit breaker basic frame, ComPacT NSX250S DC, 100KA/750VDC, 4 poles, 250A frame rating, without trip unit C25S4D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C25S4D Circuit breaker ComPacT switch base NSX250S DC 4P 36kA/750VDC -without protection.
Technical Specifications
- Manufacturer part number (MPN)
- C25S4D
- EAN / GTIN
- 3606481994868
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 4P
- Breaking capacity
- 36 kA
- Range
- ComPacT
- Product name
- ComPacT NSX DC
- Device short name
- NSX250S DC
- Product or component type
- Basic frame
- Device application
- Distribution
- Poles description
- 4P
- Neutral position
- Left
- [In] rated current
- 250 A at 40 °C
- [Ue] rated operational voltage
- 750 V DC conforming to IEC 60947-2
- Network type
- DC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Utilisation category
- Category A
- Breaking capacity code
- S 100 kA 750 V DC
- Control type
- Toggle
- mounting mode
- Fixed
- [Ui] rated insulation voltage
- 750 V DC conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-2
- [Ics] rated service breaking capacity
- 100 kA at 250 V DC conforming to IEC 60947-2 (1P); 100 kA at 24...125 V DC conforming to IEC 60947-2 (1P); 100 kA at 500 V DC conforming to IEC 60947-2 (2P); 100 kA at 750 V DC conforming to IEC 60947-2 (3P)
- Maximum breaking time
- 10 ms
- Mechanical durability
- 10000 cycles conforming to IEC 60947-2
- Electrical durability
- 10000 cycles 250 V DC In/2 conforming to IEC 60947-2; 10000 cycles 500 V DC In/2 conforming to IEC 60947-2; 10000 cycles 750 V DC In/2 conforming to IEC 60947-2; 5000 cycles 250 V DC In conforming to IEC 60947-2; 5000 cycles 500 V DC In conforming to IEC 60947-2; 5000 cycles 750 V DC In conforming to IEC 60947-2
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 35 mm
- Protection type
- Without protection
- Width (W)
- 140 mm
- Height (H)
- 161 mm
- Depth (D)
- 86 mm
- Standards
- EN/IEC 60947-2
- Overvoltage category
- III
- Electrical shock protection class
- Class II on front face
- Pollution degree
- 3 conforming to IEC 60664-1
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to EN 50102
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481994868
- SAP 1200534779
- Code 82688318
Product Documentation
More from Schneider Electric
Schneider Electric
2 hulls gland plate 400X800 SF
NSYEC482
Schneider Electric
Triple.push button +, - and STOP
ZB4BA71115
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB1, 75KA/690VAC, 3 poles, MA trip unit 100A C10V3MA100
Schneider Electric
Schneider Electric Monobloc perforated plates H300XW400MM with universal perforations 11X26MM NSYMR34
Schneider Electric
Bracket FOR Mounting
NSYSMPSB
Schneider Electric
Indicator lamp flush org (ZB5FV053)
Schneider Electric
Schneider Electric Busbar, Linergy BS, plain busbar, 1200A, horizontal, flat bar, 50X10MM, L2000MM LVS04545
Schneider Electric

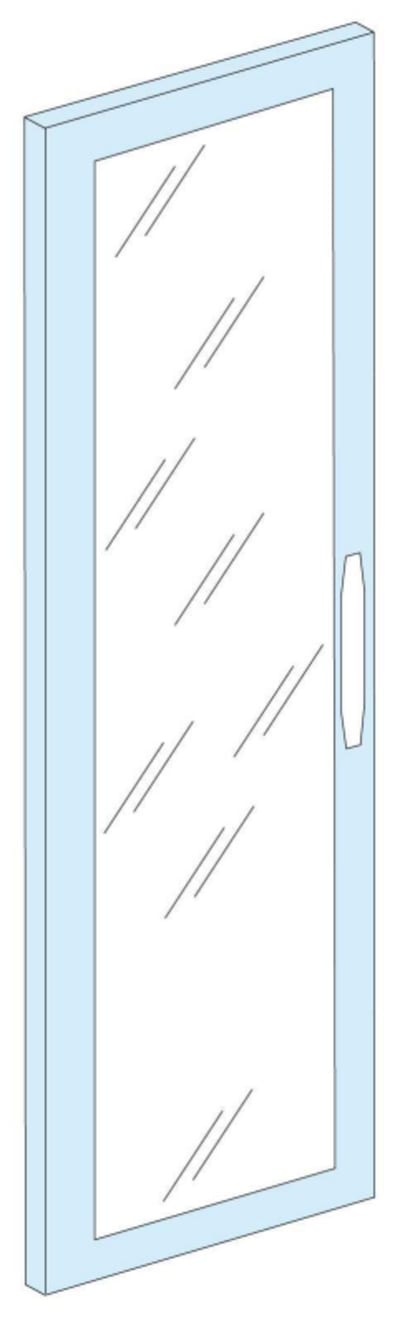

Schneider Electric Door, PrismaSeT P, Floor-standing, transparent, reversible opening, 36M, W800, 3 locks, IP55, white, RAL 9003 LVS08548
