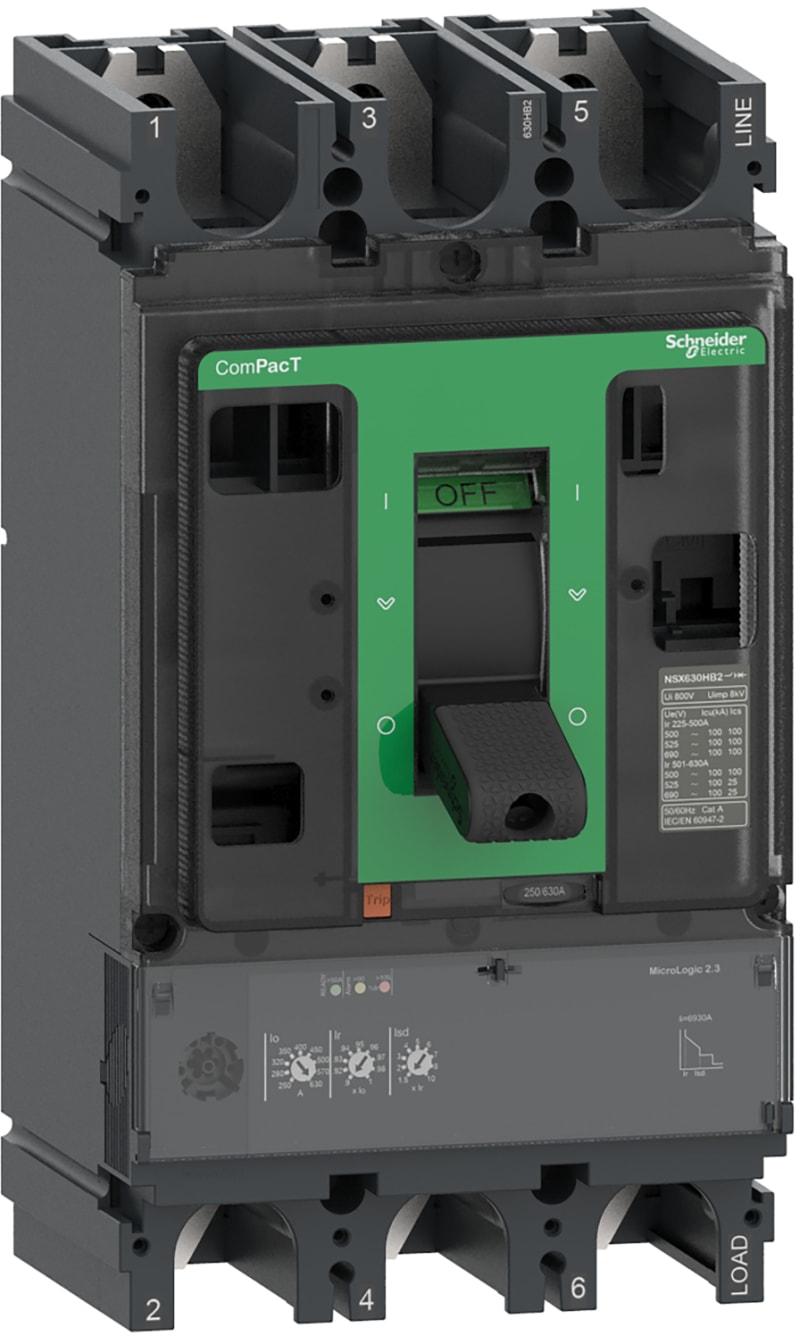

Schneider Electric Circuit breaker, ComPacT NSX400HB2, 100KA/690VAC, 3 poles, MicroLogic 2.3 trip unit 250A C40W32D250

Schneider Electric C40W32D250 Circuit breaker ComPacT NSX400HB2-electronic protection-Micrologic 2.3 250A 3P 250A 100kA/690VAC.

Manufacturer part number (MPN)

C40W32D250

EAN / GTIN

3606481989161

HS code

8536.90

Sales unit

pcs

Rated current

250 A

Number of poles

3P

Range

ComPacT

Product name

ComPacT NSX

Device short name

NSX400HB2

Product or component type

Circuit breaker

Device application

Distribution

Poles description

3P

Protected poles description

3D

[In] rated current

250 A at 40 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category A

Breaking capacity

100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

HB2 100 kA 690 V AC

Trip unit name

MicroLogic 2.3

Trip unit technology

Electronic

Trip unit protection functions

LSoI

Control type

Toggle

Circuit breaker mounting mode

Fixed

[Ui] rated insulation voltage

800 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ics] rated service breaking capacity

100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Mechanical durability

15000 cycles

Electrical durability

12000 cycles at 440 V In/2; 6000 cycles at 440 V In; 6000 cycles at 690 V In/2; 3000 cycles at 690 V In

Power dissipation per pole

19.2 W

Mounting support

Backplate

Mounting position

Horizontal and vertical; Flat on the back

Upside connection

Front

Downside connection

Front

Connection pitch

45 mm

Protection type

L : for overload protection (long time); So : for short time short-circuit protection with fixed delay; I : for instantaneous short-circuit protection

Trip unit rating

250 A at 40 °C

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

70...250 A

Long-time protection delay adjustment type tr

Fixed

[tr] long-time delay adjustment range

400 s at 1.5 x Ir; 16 s at 6 x Ir; 11 s at 7.2 x Ir

Thermal memory

20 minutes before and after tripping

Short-time protection pick-up adjustment type Isd

Adjustable 9 settings

[Isd] Short-time protection pick-up adjustment range

1.5...10 x Ir

Short-time protection delay adjustment type tsd

Fixed

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

3000 A

Earth-leakage protection

Without

Zone selective interlocking ZSI

Without

Number of slots

6 slot(s)

Local signalling

Flashing LED (green) for ready to operate; LED 105 % Ir (red) for overload; LED 90 % Ir (orange) for overload

Width (W)

140 mm

Height (H)

255 mm

Depth (D)

110 mm

Product weight

6.05 kg

Standards

EN/IEC 60947-2

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60664-1

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Relative humidity

0…95 %

Operating altitude

0...2000 m without derating; 2000 m...5000 m with derating

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481989161
• SAP 1200534437
• Code 82688661
