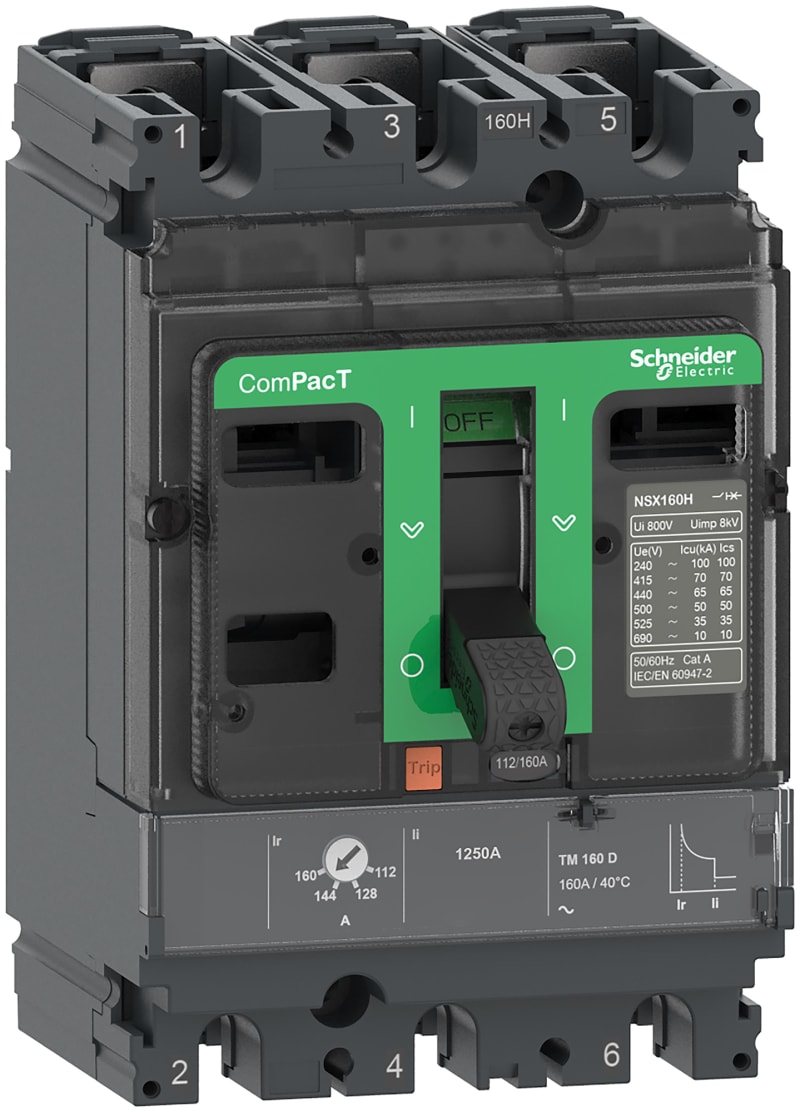

Schneider Electric Circuit breaker, ComPacT NSX100B, 25KA/415VAC, 3 poles, TMD trip unit 80A C10B3TM080

Schneider Electric C10B3TM080 Circuit breaker ComPacT NSX with thermomagnetic protection NSX100B-TM80D 3P3T 80A 40kA/230VAC - 25kA/415VAC.

Manufacturer part number (MPN)

C10B3TM080

EAN / GTIN

3606481996190

HS code

8536.90

Sales unit

pcs

Package quantity

7 pcs

Trip unit

TM80D

Range

ComPacT

Product name

ComPacT NSX

Device short name

NSX100B

Product or component type

Circuit breaker

Device application

Distribution

Poles description

3P

Protected poles description

3D

[In] rated current

80 A at 40 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category A

Breaking capacity

40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

B 25 kA 415 V AC

Trip unit name

TM-D

Trip unit technology

Thermal-magnetic

Trip unit protection functions

LI

Control type

Toggle

Circuit breaker mounting mode

Fixed

[Ui] rated insulation voltage

800 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ics] rated service breaking capacity

40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2; 7 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2

Mechanical durability

50000 cycles

Electrical durability

50000 cycles at 440 V In/2; 30000 cycles at 440 V In; 20000 cycles at 690 V In/2; 10000 cycles at 690 V In

Power dissipation per pole

8.77 W

Mounting support

Backplate

Mounting position

Horizontal and vertical; Flat on the back

Upside connection

Front

Downside connection

Front

Connection pitch

35 mm

Protection type

L : for overload protection (thermal); I : for short-circuit protection (magnetic)

Trip unit rating

80 A at 40 °C

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable

[Ir] long-time protection pick-up adjustment range

0.7...1 x In

Long-time protection delay adjustment type tr

Fixed

[tr] long-time delay adjustment range

120…400 s at 1.5 x In; 15 s at 6 x Ir

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

640 A

Earth-leakage protection

Without

Number of slots

5 slot(s)

Width (W)

105 mm

Height (H)

161 mm

Depth (D)

86 mm

Product weight

2.05 kg

Standards

EN/IEC 60947-2

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60664-1

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Relative humidity

0…95 %

Operating altitude

0...2000 m without derating; 2000 m...5000 m with derating

Warranty (in months)

18

HS Code

8536.90
