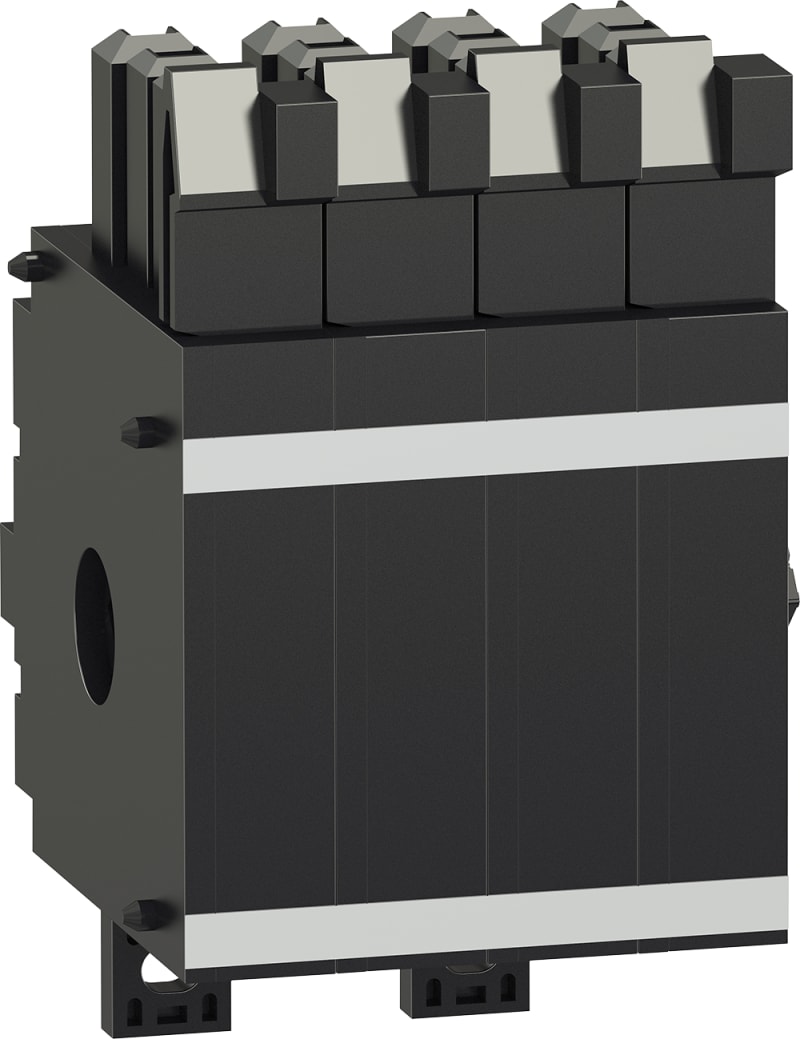

Just. Tidsf. MNR 200/250VAC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV833682SP — Adjustable time delay relay - for MN undervoltage release - 200/250 V AC/DC - sp.
Technical Specifications
- Manufacturer part number (MPN)
- LV833682SP
- EAN / GTIN
- 3606481173379
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range
- MasterPact
- Device short name
- MN delay unit
- Product or component type
- Time delay auxiliary
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ1 circuit breaker; Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker
- Voltage release type
- Instantaneous
- Impulse duration
- 200 ms
- Time delay range
- 0.5...3 s
- [Uc] control circuit voltage
- 200...250 V AC 50/60 Hz; 200...250 V DC
- Threshold tripping voltage
- 0.35...0.7 Un open; 0.85 Un close
- Supply holding power
- 4.5 VA
- Supply inrush power
- 200 VA
- Response time
- 0.5 s; 0.9 s; 1.5 s; 3 s
- Offer type
- Spare part
- Provided equipment
- 1 instruction sheet
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.4 cm
- Package 1 Width
- 7.6 cm
- Package 1 Length
- 9.2 cm
- Package 1 Weight
- 165.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 30
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 5.25 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Rated voltage
- 250 V
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481173379
- SAP 1200050403
- Code 81878239
Product Documentation
