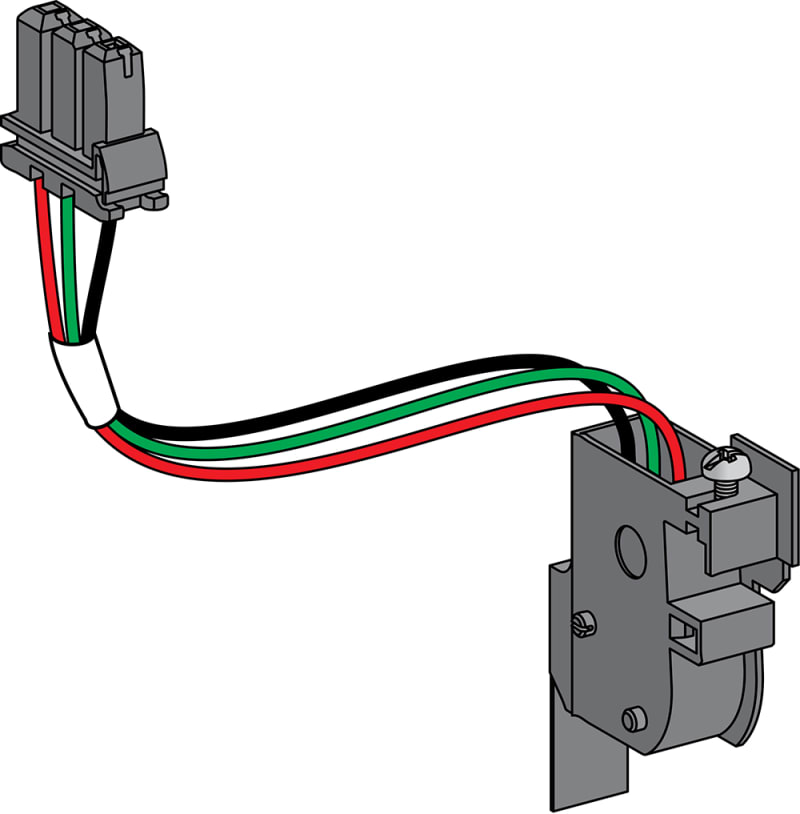

Schneider Electric MN undervoltage release, standard, Masterpact MTZ1/2/3 fixed, 200/250 VAC 50/60 Hz, 200/250 VDC LV847383
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV847383 Undervoltage coil MN for Masterpact MTZ circuit breaker 200/250VAC/DC fixed-mounted.
Technical Specifications
- Manufacturer part number (MPN)
- LV847383
- EAN / GTIN
- 3606480806582
- HS code
- 8536.90
- Sales unit
- pcs
- Maximum response time
- 45 ms on opening for MasterPact MTZ1; 95 ms on opening for MasterPact MTZ2; 95 ms on opening for MasterPact MTZ3
- Range
- MasterPact
- Device short name
- MN
- Product or component type
- Undervoltage release
- Device application
- Safety
- Range compatibility
- Masterpact MasterPact MTZ1 circuit breaker; Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker
- Voltage release type
- Instantaneous
- Control type
- Standard
- [Un] voltage power supply
- 200...250 V AC 50/60 Hz; 200...250 V DC
- Threshold tripping voltage
- 0.35...0.7 Un opening; 0.85 Un closing
- Holding power consumption
- 4.5 W
- Circuit breaker mounting mode
- Fixed
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
