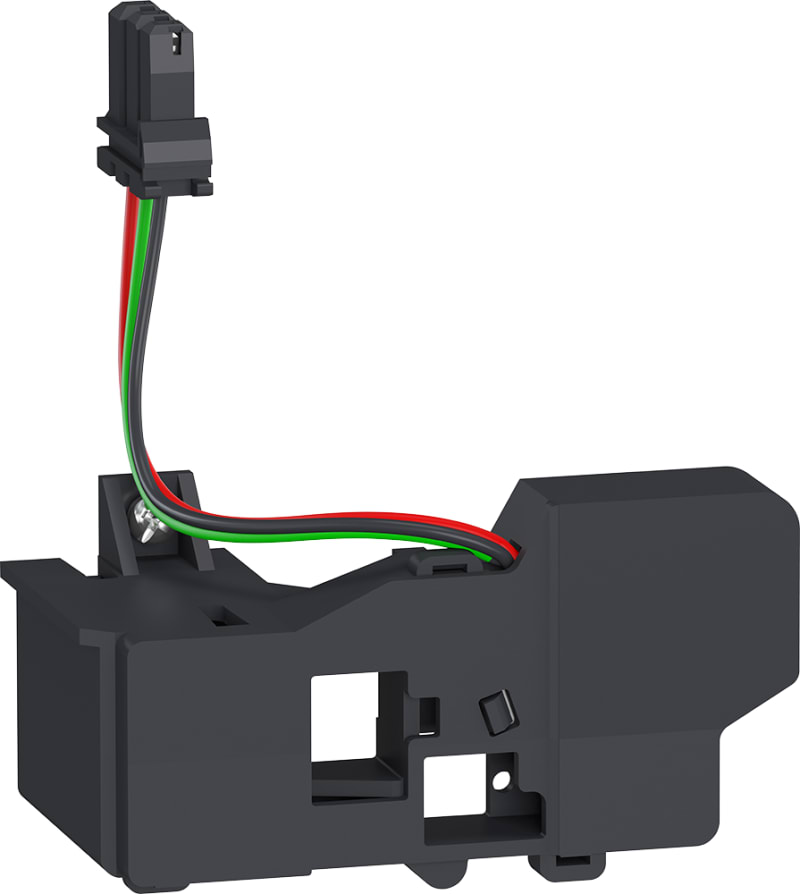

Schneider Electric XF closing voltage release, MasterPact MTZ1/MTZ2/MTZ3 fixed, standard, 200/250VAC 50/60Hz, 200/250VDC LV847353
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV847353 Innspole XF for Masterpact MTZ circuit breaker 200/250VAC/DC fixed-mounted.
Technical Specifications
- Manufacturer part number (MPN)
- LV847353
- EAN / GTIN
- 3606480806421
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- MasterPact
- Device short name
- XF
- Product or component type
- Voltage release
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ2 circuit-breaker; Masterpact MasterPact MTZ3 circuit-breaker; Masterpact MasterPact MTZ1 circuit-breaker
- Voltage release type
- Closing coil
- Control type
- Standard
- [Un] voltage power supply
- 200...250 V AC 50/60 Hz; 200...250 V DC
- Threshold tripping voltage
- 0.85...1.1 Un on closing
- Holding power consumption
- 4.5 W
- Circuit breaker mounting mode
- Fixed
- Maximum response time
- 65 ms on closing for MasterPact MTZ1; 80 ms on closing for MasterPact MTZ2; 90 ms on closing for MasterPact MTZ3
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480806421
- SAP 1200050662
- Code 81878896
