Motormeca MCH 200/240V AC - Fixed MTZ1
Pricing
Request a quote
We reply within 24 hours
Product Description

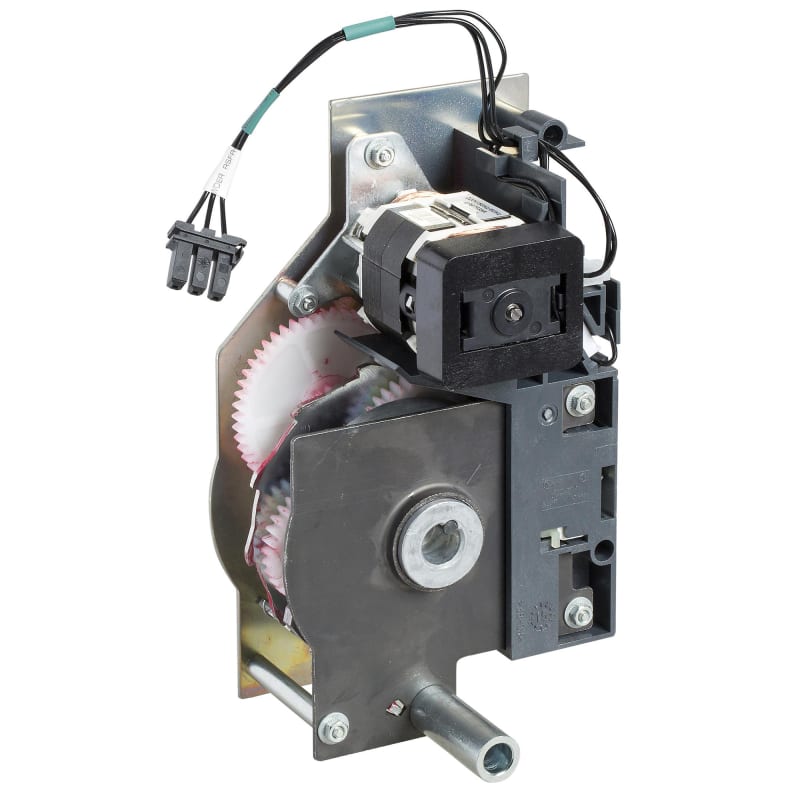

Schneider Electric LV847396 Motor MCH for Masterpact circuit breaker 200/240VAC MTZ1 fixed-mounted.
Technical Specifications
- Manufacturer part number (MPN)
- LV847396
- EAN / GTIN
- 3606480813191
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- MasterPact
- Device short name
- MCH
- Product or component type
- Motor mechanism
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ1
- Control type
- Standard
- mounting mode
- Fixed
- [Uc] control circuit voltage
- 200...240 V AC 50/60 Hz
- Threshold tripping voltage
- 0.85...1.1 Un
- Maximum power consumption in VA
- 180 VA
- Overcurrent protection
- 2...3 x In 0.1 s
- Maximum charging time
- 3 s
- Maximum operating frequency
- <= 3 cycles per minute
- provided contact
- Limit switch contact at 240 V 10 A
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.2 cm
- Package 1 Width
- 12.5 cm
- Package 1 Length
- 18.0 cm
- Package 1 Weight
- 834.0 g
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480813191
- SAP 1200498291
- Code 82621889
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Floor standing enclosure polyester vers.PLA completely sealed 1000X750X420 IP65 NSYPLA1074G
Schneider Electric
Schneider Electric APC Smart-UPS X-Series External Battery Pack Rack/Tower 120V, 1200VAH, rackmount, 4U SMX120BP
Schneider Electric
Potentiometer complete 470KOHM (XB4BD912R470K)
Schneider Electric
Schneider Electric Thermal Overload Relay 17-25 A Class 20
LRD325L
Schneider Electric
Kaedra IP65 1-ROW/12MOD
13981
Schneider Electric
OL50 Fleks.hose Ø25 2M Grey
ISM50850
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 C60H-DC, 2P, 50A, C curve, 6KA (IEC/EN 60947-2) A9N61538
Schneider Electric
Schneider Electric Mureva BOX - gasket - black - M20 IMT36153
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV847396?
- LV847396 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV847396.
- What is the HS code for LV847396?
- The customs tariff (HS) code for LV847396 is 8536.90.
- Who manufactures LV847396?
- LV847396 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LV847396?
- Yes — the LV847396 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV847396?
- The minimum order quantity is 1.
- Is LV847396 available?
- Yes — LV847396 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
