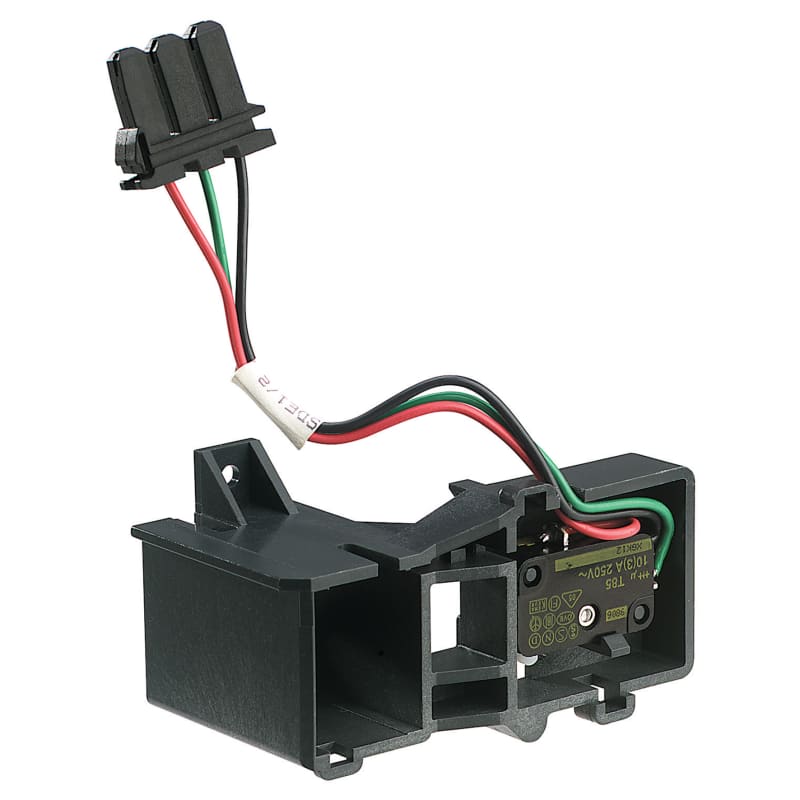

Schneider Electric LV847916SP Low-Level Alarm Contact SDE2 for MasterPact MTZ2/MTZ3

Schneider Electric LV847916SP is a spare low-level alarm contact SDE2 for MasterPact MTZ2, MTZ3 and NW circuit breakers, with a single 1 NO/NC signal contact. Rated breaking capacity includes 3 A AC-12 at 24-380 V AC and 3 A DC-12 at 24/48 V DC, with a minimum load of 2 mA at 15 V. An instruction sheet is included. Country of origin is FR.

Manufacturer part number (MPN)

LV847916SP EAN / GTIN: 3606481187239 Sales unit: pcs Range: MasterPact Device short name: SDE Product or component type: Auxiliary contact Device application: Control Range compatibility: Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker Auxiliary contacts type: Low level Signal contacts composition: 1 NO/NC Breaking capacity: 3 A DC-12 24/48 V DC; 0.3 A DC-12 125 V DC; 0.15 A DC-12 250 V DC; 3 A AC-12 24/48 V AC 50/60 Hz; 3 A AC-12 240 V AC 50/60 Hz; 3 A AC-12 380 V AC 50/60 Hz minimum load: 2 mA at 15 V Provided equipment: 1 instruction sheet Offer type: Spare part Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 3.500 cm Package 1 Width: 5.000 cm Package 1 Length: 8.700 cm Package 1 Weight: 101.000 g Unit Type of Package 2: BAG Number of Units in Package 2: 4 Package 2 Height: 6.300 cm Package 2 Width: 18.200 cm Package 2 Length: 27.300 cm Package 2 Weight: 772.000 g Unit Type of Package 3: S03 Number of Units in Package 3: 32 Package 3 Height: 30.000 cm Package 3 Width: 30.000 cm Package 3 Length: 40.000 cm Package 3 Weight: 6.176 kg Country of origin: FR Warranty (in months): 18

HS Code

8538.90

• EAN 3606481187239
• SAP 1200287089
• Code 82255136
