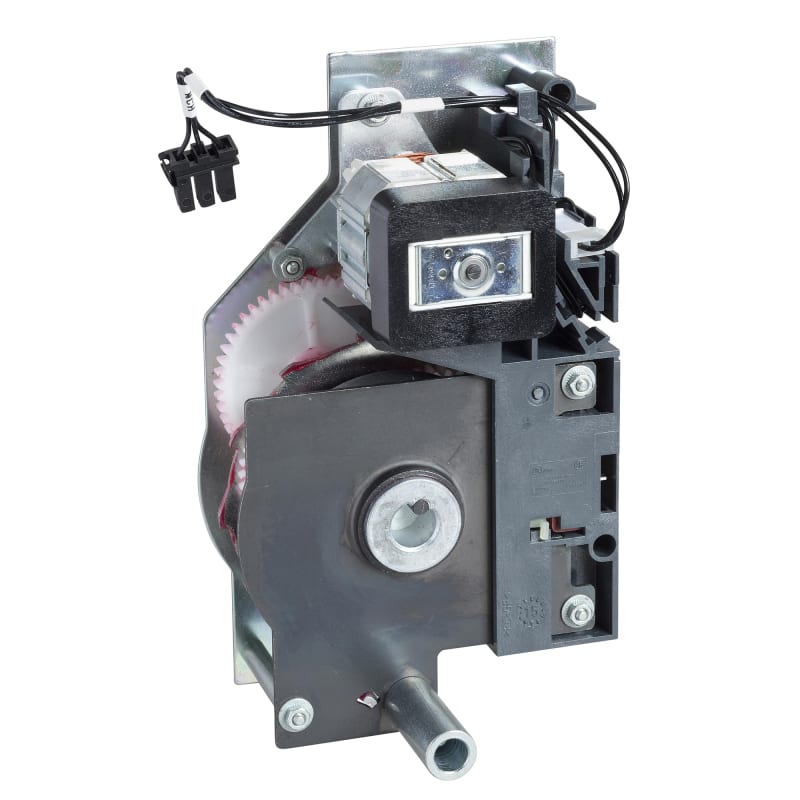

Schneider Electric electric motor MCH, MasterPact MTZ2/MTZ3, spare part, 380/415 V AC 50/60 Hz LV847896SP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV847896SP Motor MCH 380/415VAC for Masterpact circuit breaker MTZ2/3 spare part.
Technical Specifications
- Manufacturer part number (MPN)
- LV847896SP
- EAN / GTIN
- 3606481187154
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 380/415 V AC
- Range
- MasterPact
- Device short name
- MCH
- Product or component type
- Motor mechanism
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ2; Masterpact MasterPact MTZ3
- Control type
- Standard
- [Uc] control circuit voltage
- 380...415 V AC 50/60 Hz
- Threshold tripping voltage
- 0.85...1.1 Un
- Maximum power consumption in VA
- 180 VA
- Overcurrent protection
- 2...3 x In 0.1 s
- Maximum charging time
- 4 s
- Maximum operating frequency
- <= 3 cycles per minute
- provided contact
- Limit switch contact at 240 V 10 A
- Provided equipment
- 1 instruction sheet
- Offer type
- Spare part
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481187154
- SAP 1200498332
- Code 82621802
Product Documentation
