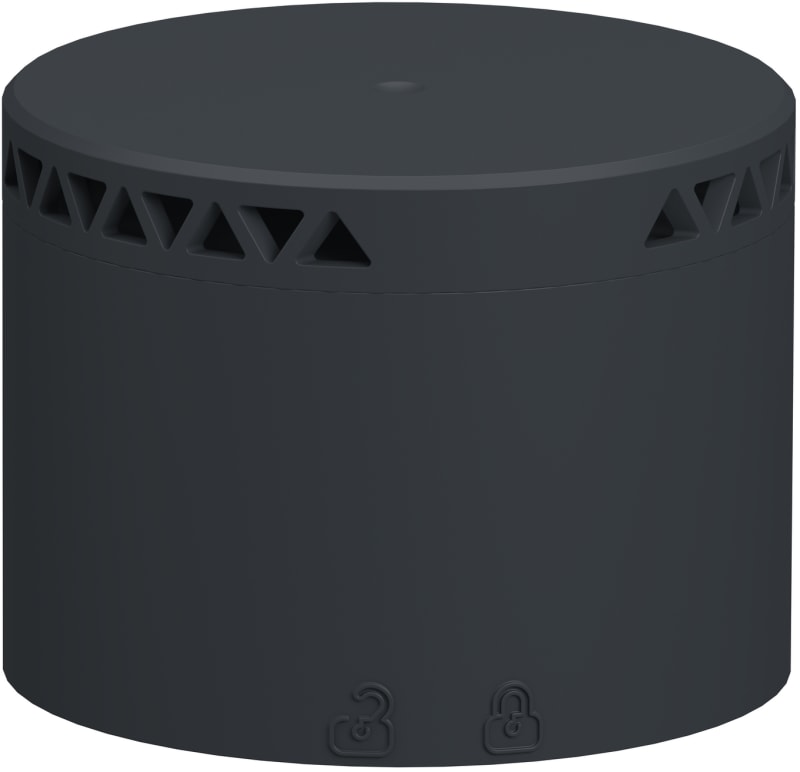

Lydmodul with 2 toner in grey plastic

Lydmodul for XVB7 lyskolonne in Ø70 mm in dark grey with 2 toner and adjustable from 78-102 dB at 1 m.

Manufacturer part number (MPN)

XVB7C9S

EAN / GTIN

3606487129615

Sales unit

pcs

Package quantity

60 pcs

Range of product

Harmony XVB7

Device composition

2 tone buzzer

Device short name

XVB7

Mounting diameter

70 mm

Signalling type

Continuous or intermittent buzzer; 2 tones

Material

Polycarbonate

Housing colour

Dark grey

Product weight

0.080 kg

Mounting position

Upright/inverted

Noise level

88…102 dB at 1 m

Pulse frequency

1 Hz

Control type

DIP switch for tone/loudness

[Ue] rated operational voltage

24 V AC/DC

Rated operational voltage limits

21.6...26.4 V AC/DC

Current consumption

33 mA at 24 V AC; 22 mA at 24 V DC

Inrush current

1 A

Electrical shock protection class

Class II

[Ui] rated insulation voltage

50 V

[Uimp] rated impulse withstand voltage

0.5 kV

Pollution degree

2

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

IP degree of protection

IP66

Environmental Type ratings

UL type 4X/13

Vibration resistance

6 gn, amplitude = +/- 0.5 mm (f = 10…500 Hz)in operation

Shock resistance

30 gn (duration = 6 ms) for in operation

Standards

UL 60947-5-1; IEC 60947-5-1; CSA C22.2 No 60947-5-1

Product certifications

cULus; CCC; RCM; UKCA; CE

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.500 cm

Package 1 Width

7.300 cm

Package 1 Length

7.300 cm

Package 1 Weight

80.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

60

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

5.270 kg

Unit Type of Package 3

P06

Number of Units in Package 3

480

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

51.056 kg

Country of origin

DE

Warranty (in months)

18

Outer diameter

70 mm

Function

Continuous tone/pulse tone

Loudness

102 dB

Voltage type

AC/DC

Degree of protection (IP)

IP66

Tone adjustable

Yes

HS Code

8531.80

• EAN 3606487129615
• SAP 1200846274
• Code 84041293
