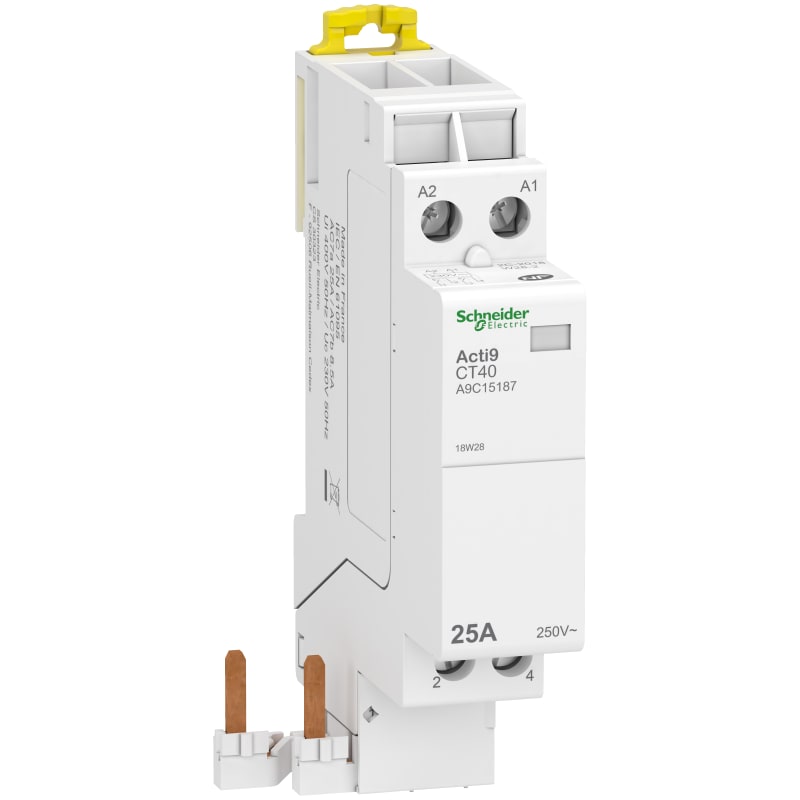

Schneider Electric contactor, ACTI9 CT40, 2 NO, 2P, 25 A, 230 V AC, 50 Hz A9C15187

Schneider Electric A9C15187 Acti 9 CT40 contactor for iC40 25A 2P 230V.

Manufacturer part number (MPN)

A9C15187

EAN / GTIN

3606489443658

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

Voltage

230 V

Rated current

25 A

Number of poles

2P

range of product

Acti9

Product name

Acti9 CT40

Product or component type

Contactor

Device short name

CT40

Device application

Control circuit

Poles

2P

[Ie] rated operational current

25 A AC-7A; 8.5 A AC-7B

Pole contact composition

2 NO

Network type

AC

Utilisation category

AC-1 conforming to IEC 60947-4

Control type

Remote control

[Uc] control circuit voltage

230 V AC 50 Hz

Network frequency

50/60 Hz

[Ue] rated operational voltage

250 V AC 50 Hz

Maximum power

3 W at 250 V AC

[Ui] rated insulation voltage

500 V AC

[Uimp] rated impulse withstand voltage

2.5 kV

Control signal type

Maintained

Switching frequency

100 switching operations/day; 6 switching operation/minute

Local signalling

Color indicator

Hold-in power consumption in VA

3.8 VA

Inrush power in VA

15 VA

mounting mode

Clip-on

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

2

Height

87 mm

Width

18 mm

Depth

66 mm

Product weight

110 g

Colour

White

Electrical durability

100000 cycles IEC/EN 61095 25 A 50 Hz AC-7A; 30000 cycles IEC/EN 61095 8.5 A 50 Hz AC-7B; 30000 cycles IEC/EN 61095 50 Hz AC-7C; 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1; 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3; 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a; 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b

Connections - terminals

Power circuit: tunnel type terminals2 cable(s) 2.5 mm² flexible; Power circuit: tunnel type terminals1 cable(s) 6 mm² rigid; Control circuit: tunnel type terminals2 cable(s) 2.5 mm² flexible; Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid

Tightening torque

0.8 N.m

Wire stripping length

10 mm

Product compatibility

No auxiliary

Compatibility code

CT

Standards

EN 61095; IEC 61095

Product certifications

NF

Noise level

30 dB

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

2

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-5…60 °C

Ambient air temperature for storage

-40…60 °C

Warranty (in months)

18

HS Code

8536.90
