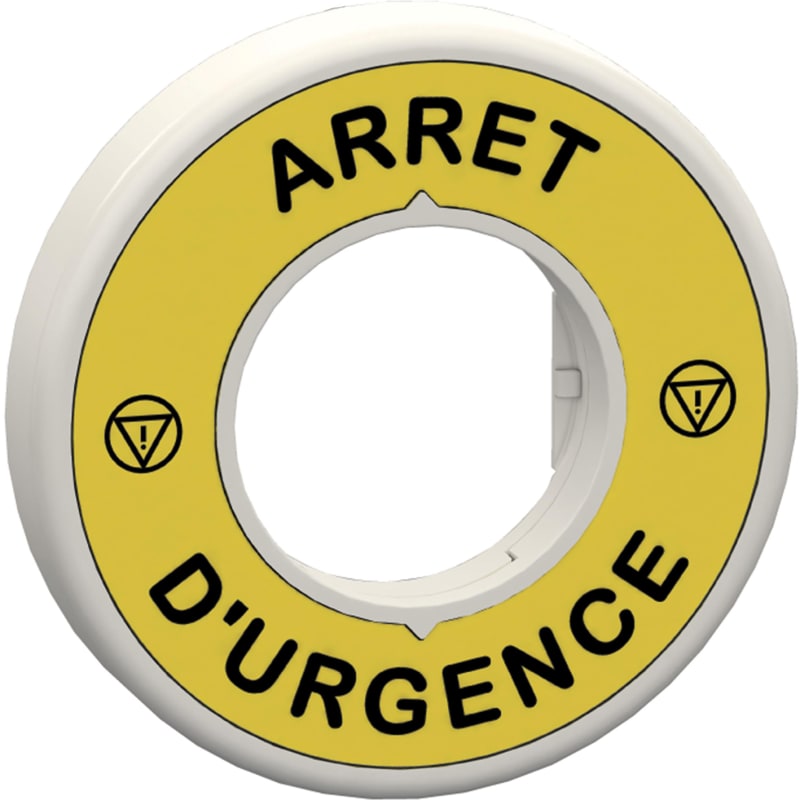

Emergency stop sign with LED 230V FR
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZBY9W2M130 Emergency stop sign with red LED 230VAC and marked "ARRET D URGENCE".
Technical Specifications
- Manufacturer part number (MPN)
- ZBY9W2M130
- EAN / GTIN
- 3606489745318
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Voltage
- 230 V
- Range of product
- Harmony
- Product or component type
- Illuminated marked legend ring
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Cap/operator or lens colour
- Red
- Operator additional information
- With illuminated ring
- Light source
- Protected LED
- Bulb base
- Integral LED
- Light source colour
- Red
- [Us] rated supply voltage
- 230...240 V AC at 50/60 Hz
- Device presentation
- Intermediate ring
- Accessory / separate part destination
- Emergency stop mushroom head push-button
- Material
- Plastic
- Marking
- Black ARRET D'URGENCE on yellow background
- Label dimensions
- Ø 60 mm
- User language
- French
- Height
- 60 mm
- Width
- 9.3 mm
- Product weight
- 0.016 kg
- Electrical insulation class
- Class II conforming to IEC 61140
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- [Ui] rated insulation voltage
- 250 V (pollution degree 3) conforming to IEC 60947-1
- Signalling type
- Steady
- Supply voltage limits
- 195…264 V AC
- Current consumption
- 14 mA
- Service life
- 100000 h at rated voltage and 25 °C
- Surge withstand
- 1 kV conforming to IEC 61000-4-5
- Compatibility code
- XB4; XB5
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50E; Type 12 conforming to UL 50E; Type 4 conforming to UL 50E; Type 4X conforming to UL 50E
- IK degree of protection
- IK05 conforming to IEC 62262
- Standards
- CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; UL 508; IEC 60947-1; JIS C8201-5-1; JIS C8201-1
- Product certifications
- UL listed; CSA
- Vibration resistance
- 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27
- Resistance to fast transients
- 2 kV conforming to IEC 61000-4-4
- Resistance to electromagnetic fields
- 10 V/m conforming to IEC 61000-4-3
- Resistance to electrostatic discharge
- 4 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
- Electromagnetic emission
- Class B conforming to IEC 55011
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Country of origin
- ID
- Warranty (in months)
- 18
- Colour
- Yellow
- Outer diameter
- 60 mm
- Shape
- Round
- Literal imprint
- Stop
- Language of the imprint
- French
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606489745318
- SAP 1200338032
- Code 82352806
Product Documentation
More from Schneider Electric
Schneider Electric

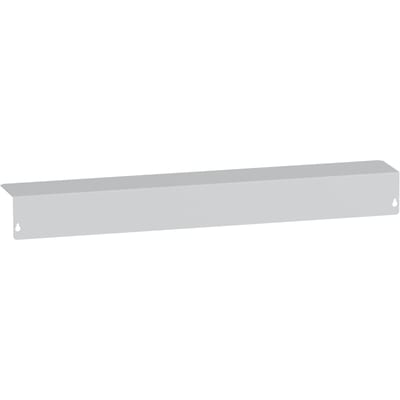

Schneider Electric Auxiliary terminal shield, MasterPact MTZ3 drawout, 3P, 4000A-6300A, spare part LV848597SP
Schneider Electric

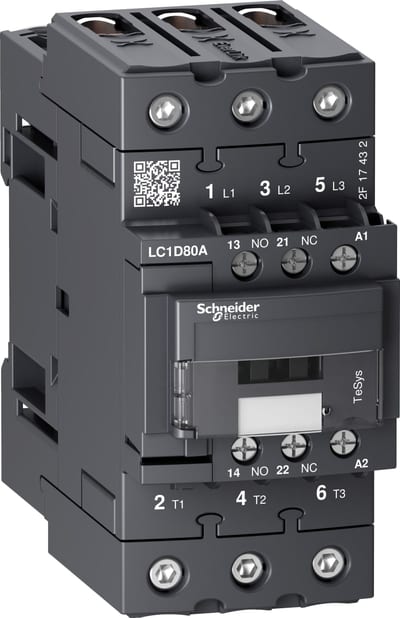

Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=440V, 66A, 110V AC 50/60Hz coil, EverLink+springs LC1D80AF7
Schneider Electric
Schneider Electric compact smart relay Zelio Logic - 10 I O - 100..240 V AC - no clock - no display SR2D101FU
Schneider Electric

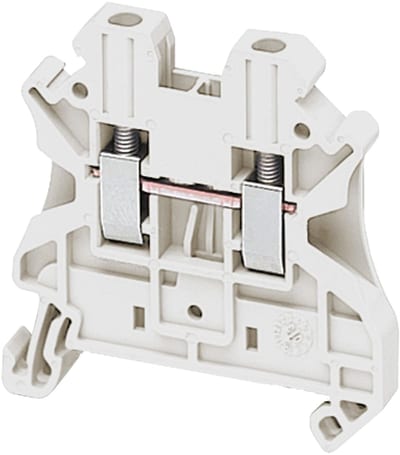

DIN-rail terminal 2,5mm² white 2P
NSYTRV22WH
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 100KA, thermal magnetic, Everlink terminals GV4PE80S
Schneider Electric
Schneider Electric Floor standing enclosure polyester vers.PLA completely sealed 1000X1250X420 IP65 NSYPLA10124G
Schneider Electric

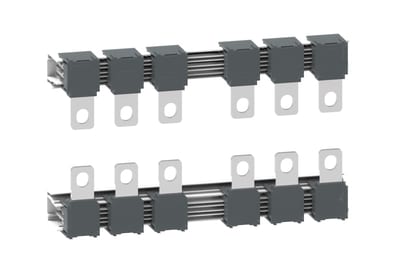

Rev,coupling,rod 3P Kit G630-800
LA9G3762
Schneider Electric

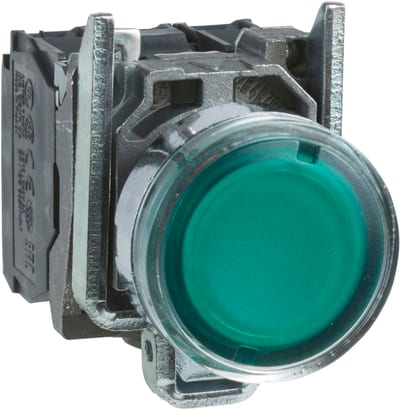

Schneider Electric Illuminated push button, Harmony XB4, metal, green flush, 22mm, universal LED, plain lens, 1NO + 1NC, 110...120V AC XB4BW33G5
