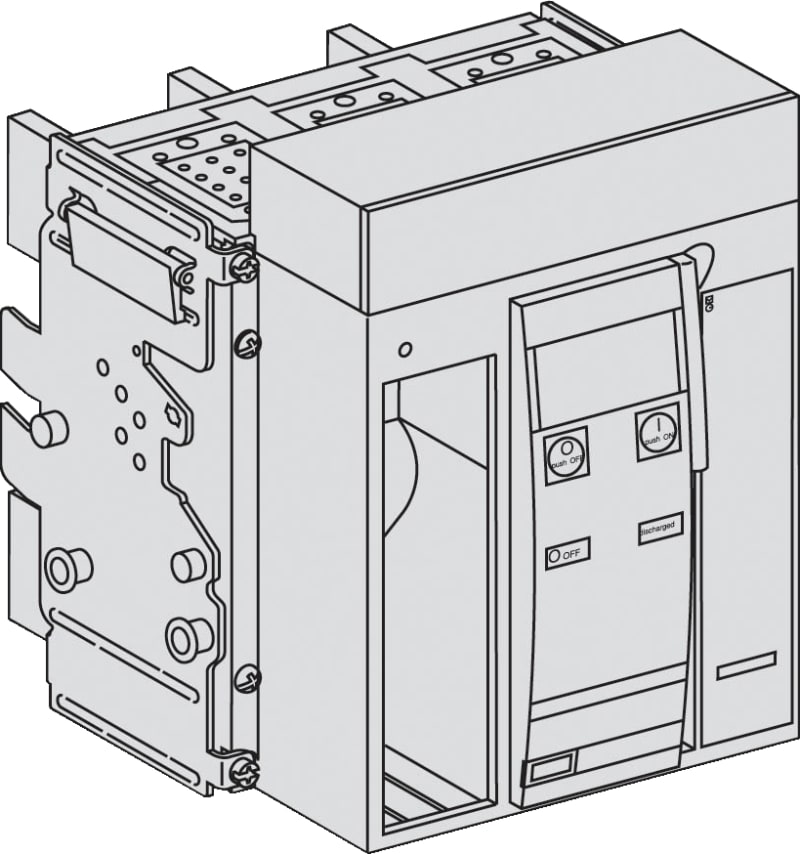

NT 16 H2 3P Withdrawable
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 47241 NT 16 H2 3P WITHDRAWABLE.
Technical Specifications
- Manufacturer part number (MPN)
- 47241
- EAN / GTIN
- 3303430472414
- Sales unit
- pcs
- Number of poles
- 3P
- Rated permanent current Iu
- 1600 A
- With integrated under voltage release
- No
- Number of auxiliary contacts as change-over contact
- 5
- Rated voltage
- 690 V
- Power loss
- 460 W
- Degree of protection (IP)
- IP30
- Position of connection for main current circuit
- Back side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Bolt connection
- Type of control element
- Push button
- With switched-off indicator
- Yes
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 50 kA
- Suitable for DIN rail (top hat rail) mounting
- No
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- No
- Complete device with protection unit
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430472414
- SAP 1200497120
- Code 82627453
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, glazed door, 2000X1000X400MM, IP55 NSYSFN201040T
Schneider Electric
Push-button flush white with text (ZB5FA141)
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 100V DC coil, snap-in terminals LC1D09AKD
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 3 poles, MicroLogic 2.2 trip unit 100A C25V32D100
Schneider Electric
Schneider Electric LVS08846 PrismaSeT G Active Canopy IP41 600+600+300 mm White
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 4 poles 4D (neutral fully protected), TMD trip unit 63A C10W4TM063
Schneider Electric
Push-button flush white with text (ZB5FA131)
Schneider Electric

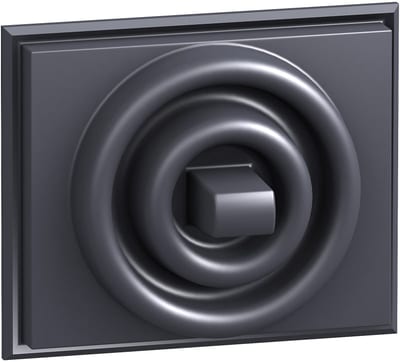

Schneider Electric rubber toggle cover, ComPact NSX100/160/250, IP43 LV429319
