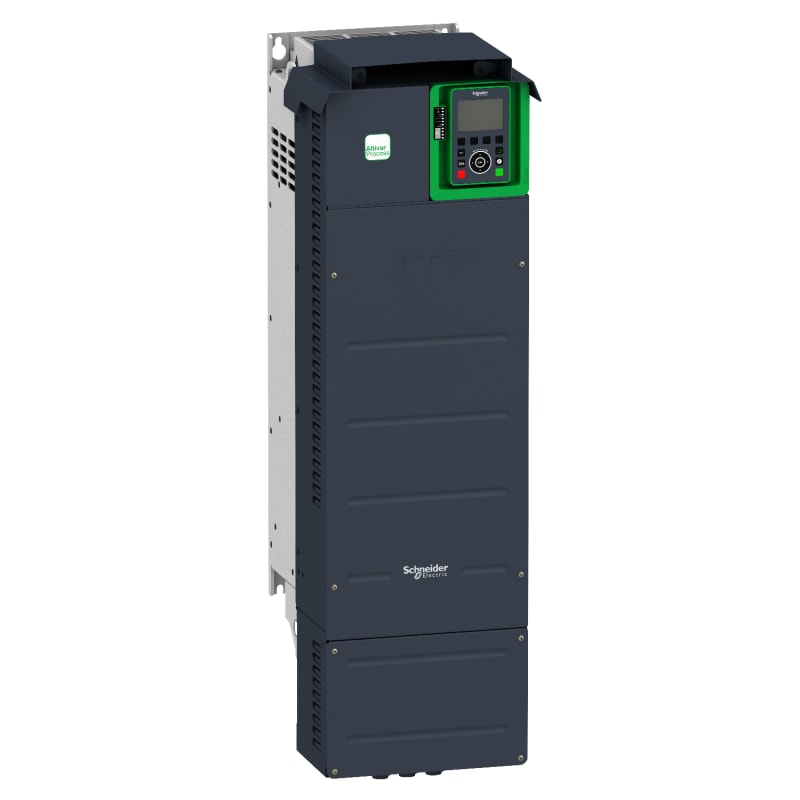

ATV630 IP21 90kW 400V DNV
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ATV630D90N4428 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Variable-frequency drive for pump & ventilation IP21 90KW 400V marine sertificat.
Technical Specifications
- Manufacturer part number (MPN)
- ATV630D90N4428
- EAN / GTIN
- 3606481714770
- HS code
- 8504.40
- Sales unit
- pcs
- Voltage
- 400 V
- IP rating
- IP21
- Power
- 90 kW
- Width
- 290 mm
- Height
- 922 mm
- Depth
- 323 mm
- Number of digital inputs
- 6
- Number of analogue inputs
- 3
- Number of analogue outputs
- 2
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-485
- 1
- Degree of protection (IP)
- IP21
- Mains frequency
- 50/60 Hz
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Max. output frequency
- 500 Hz
- Max. output at linear load at rated output voltage
- 90 kW
- Max. output at quadratic load at rated output voltage
- 90 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 480 V
- Nominal output current I2N
- 173 A
- Country of origin
- India
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606481714770
- SAP 1200722446
- Code 83837267
Product Documentation
More from Schneider Electric
Schneider Electric
LCD Display M.LOGIC 6 100/630A
LV429484
Schneider Electric

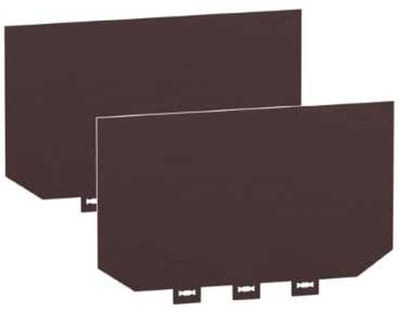

Schneider Electric LV432579 — Rear Insulation Screens, NSX400/630, 4 poles, pitch 70 mm (set of 2)
Schneider Electric

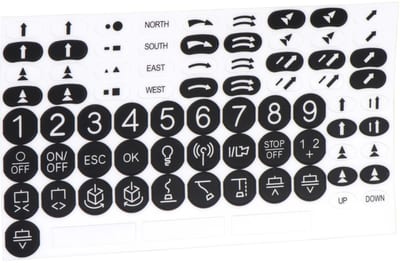

SET WITH Labels B/W Control
ZARC07
Schneider Electric

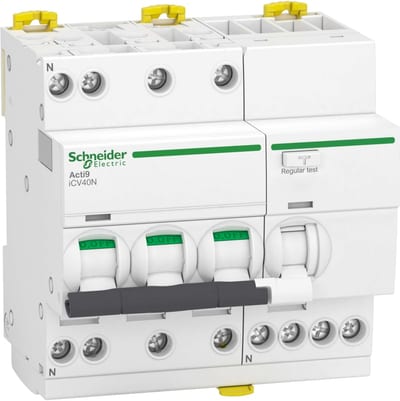

ICV40N RCBO 3PN B 13A 30MA
A9DG3713
Schneider Electric

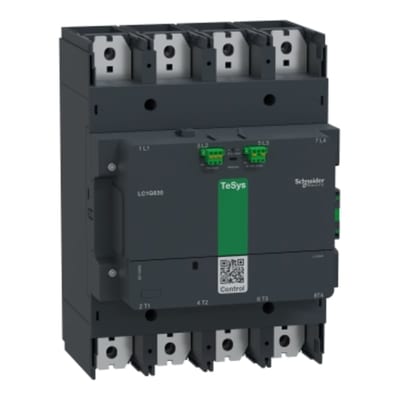

Schneider Electric High power contactor,TeSys Giga 800,4P(4NO),AC-1 <=440V 1050A,advanced version,200-500V AC/DC wide band coil LC1G8004LSEA
Schneider Electric

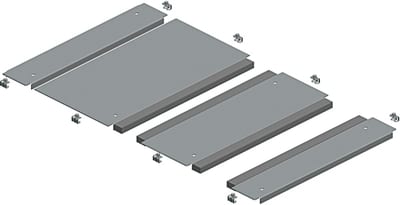

2 hulls gland plate 600X1000 SF
NSYEC6102
Schneider Electric

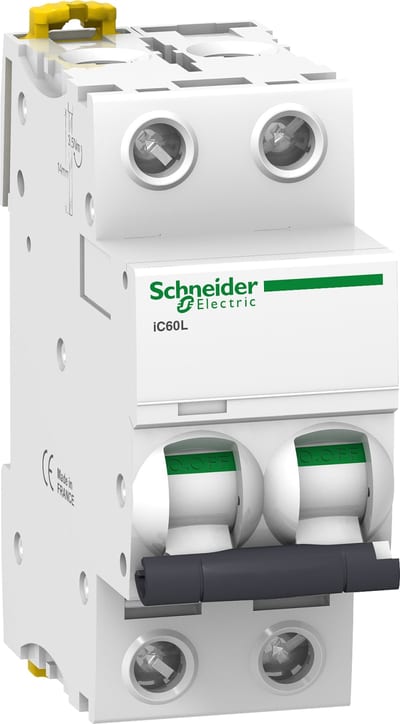

Schneider Electric A9F95240 ACTI9 IC60L Miniature Circuit Breaker 2P 40 A, Curve K
