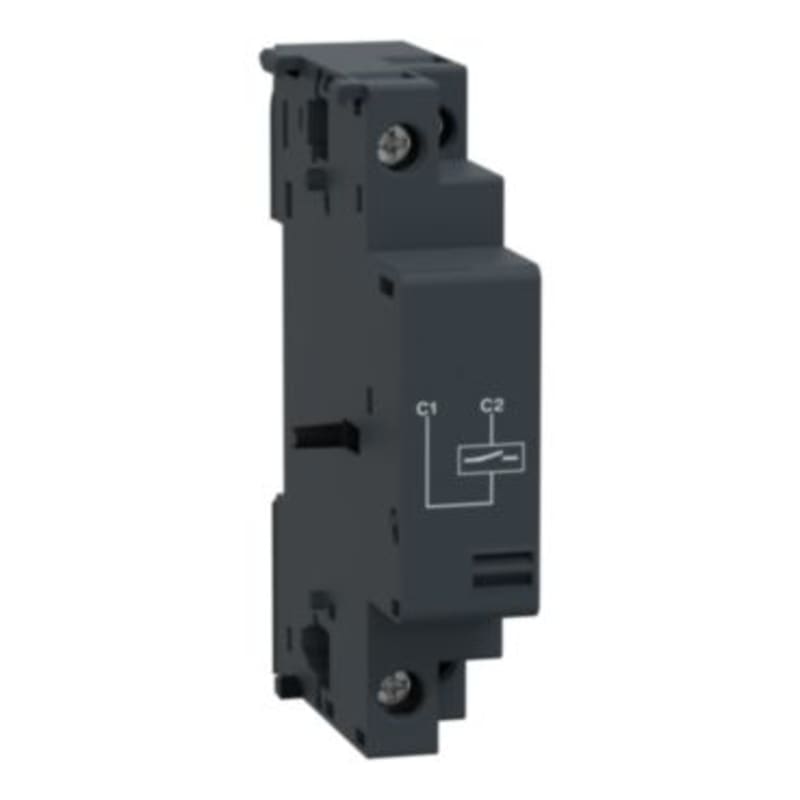

Schneider Electric TeSys GV2 & GV3 - shunt trip - 24 V AC 50Hz GVAS025

Schneider Electric GVAS025 Shunt trip 24V 50HZ GV2.

Manufacturer part number (MPN)

GVAS025

EAN / GTIN

3389110343571

Sales unit

pcs

Package quantity

16 pcs

Voltage

24 V

Frequency

50 Hz

Range

TeSys; TeSys Deca

Product or component type

Shunt trip release

Device short name

GVAS

[Uc] control circuit voltage

24 V AC 50 Hz

Range compatibility

TeSys GV2ME; TeSys GV2LE; TeSys GV2L; TeSys GV2P; TeSys GV3L; TeSys GV3P; TeSys Deca

Control circuit voltage limits

0.7...1.1 Un

[Ui] rated insulation voltage

690 V AC conforming to IEC 60947-1; 600 V AC conforming to UL 60947-4-1; 600 V AC conforming to CSA C22.2 No 60947-4-1

Threshold tripping voltage

0.75...0.2 Un

Inrush power in VA

14 VA AC

Inrush power in W

10.5 W

Hold-in power consumption in VA

5 VA AC

Hold-in power consumption in W

1.6 W

Operating time

10...15 ms conforming to IEC 60947-1

On-load factor

100 %

Connections - terminals

Screw clamp terminals 1 cable(s) 1…2.5 mm²solid; Screw clamp terminals 2 cable(s) 1…2.5 mm²solid; Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end

Tightening torque

< 1.4 N.m on screw clamp terminals

Mechanical durability

10000 cycles with GV3P and GV3L; 30000 cycles with GV2ME and GV2P

Quantity per set

Set of 10

Height

89 mm

Width

18 mm

Depth

66 mm

Product weight

0.105 kg

Colour

Dark grey

Country of origin

CZ

Warranty (in months)

18

Suitable for off-load switch

No

Suitable for overload relay

No

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

24 V

Suitable for motor safety switch

No

Suitable for power circuit breaker

Yes

Voltage type for actuating

AC

HS Code

8538.90

• EAN 3389110343571
• SAP 1000022683
• Code 8200126
